Dissipation Loop - Air Handler (garage heater)

SKU: N-100
C$ 3,059
Out of stock


Requires SIN or Tax ID for shipping to USA

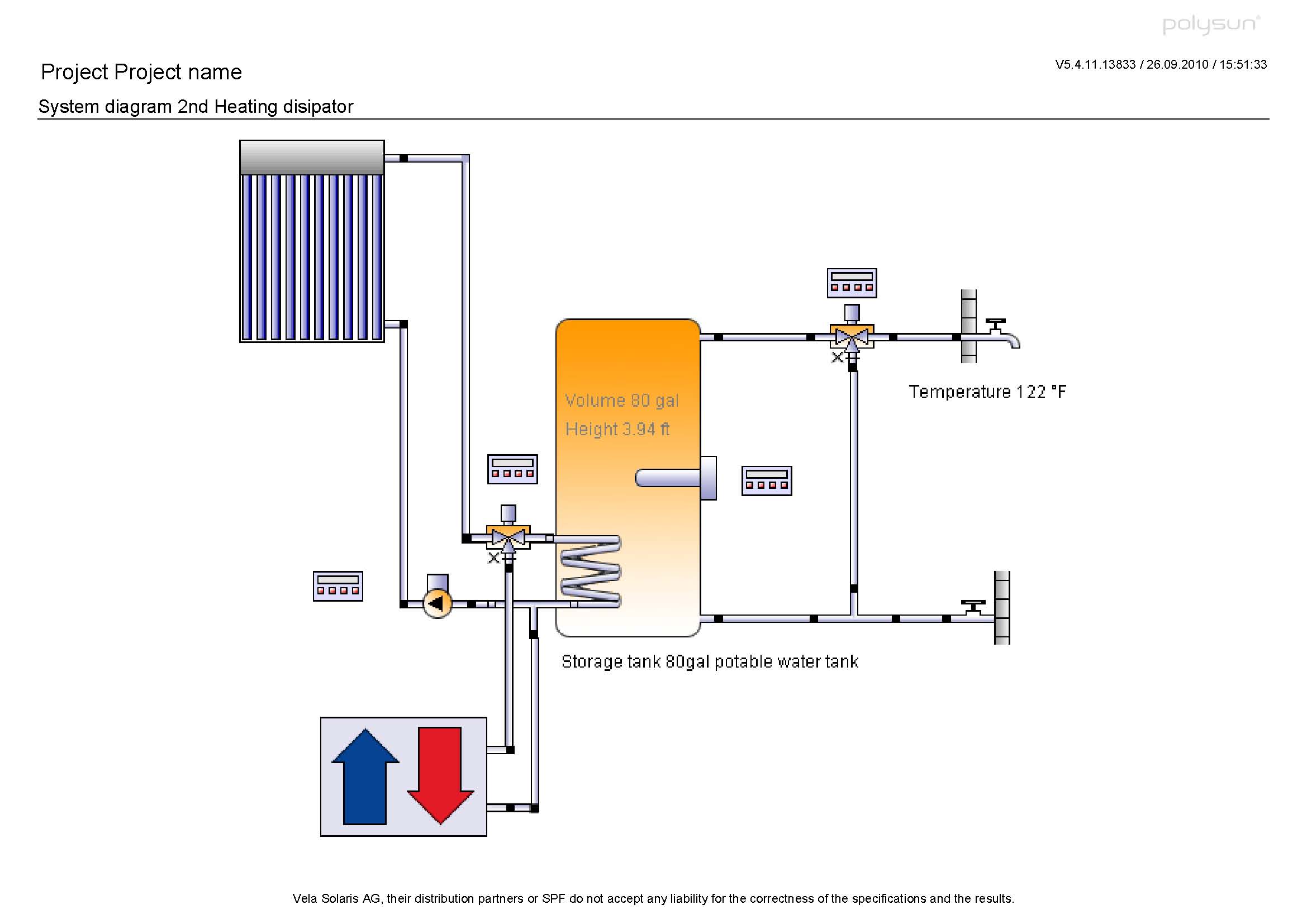

12855345092nd%20Heating%20 %20Disipator


2nd Solar Heating Loop - Shop/Garage Space Heating

Integrate solar water heating system into a shop or garage with this quick Plug n' Save optional heating loop. The 2nd loop quickly plugs into a automatic 3 way diverter valve that regulates both the garage or shop temperature and the domestic hot water. Hot water is circulated to a Modine HC108 water space heater. 2nd relay controls the temperature differences to circulate hot water to the Modine Heater when needed. DeltaSol BS/plus zone controller controls both the solar heating loop and the aux shop/garage loop.  This can also be used as a heat dissipation loop to get rid off excess heat when the main solar hot water system is fully charged.


Modine HC 108 Air to Water Space Heater with fan

3/4" Heat Exchanger Side


  • Belimo 3-way automatic actuator valve (3/4" 120 VAC)
  • 108,000 BTU Modine Space Heater with fan
  • 100 feet of Aurora Flex 3/4" piping (3/4" OD 5/8" ID)
  • All fittings

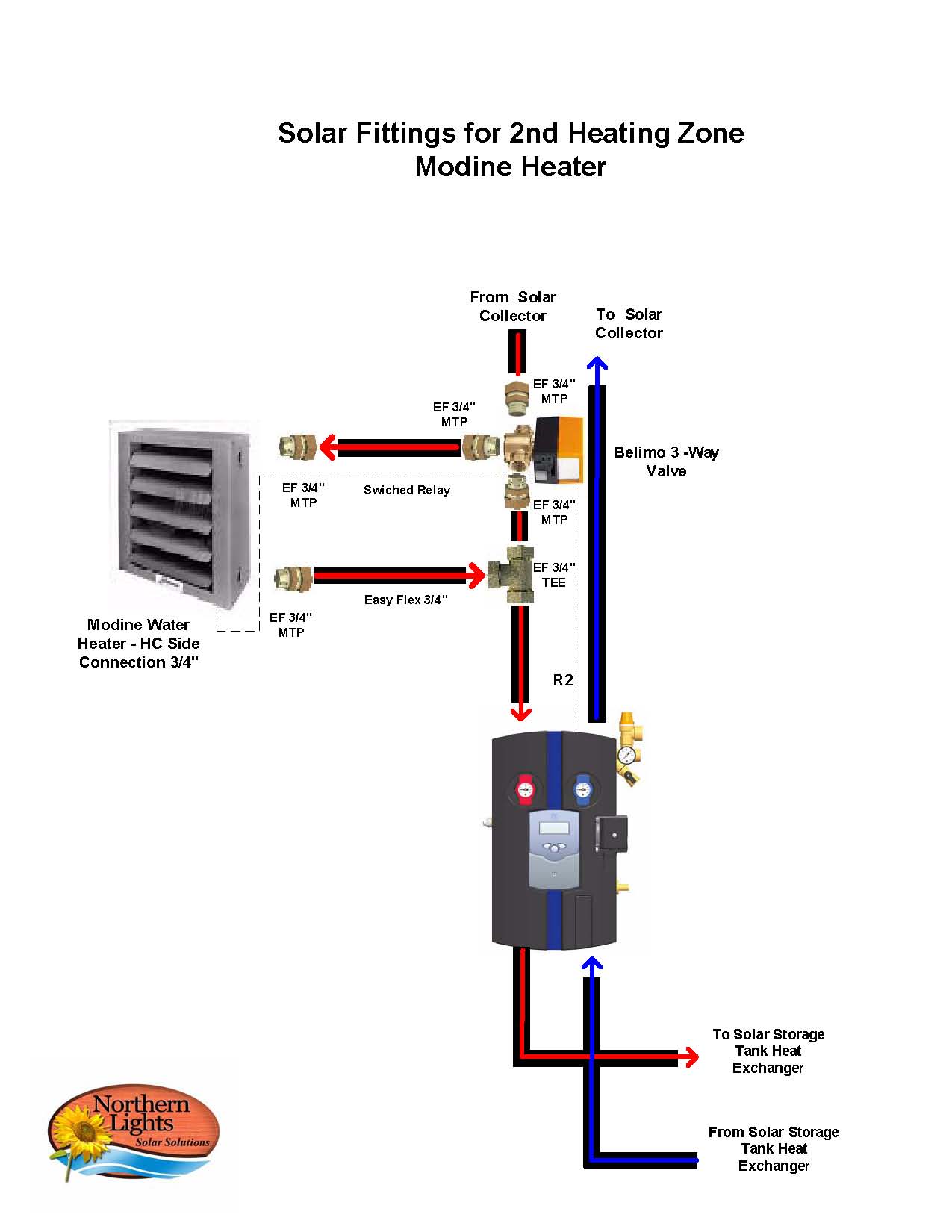

1285597954Visio GR 2nd Heat Modine

ul listed solar tanks


Dimension (L x W x H) 12 x 12 x 12 Inch
Weight 50 Pound
