SWH-5 Solar Hot Water Heating Package - DIY Solar Kits

SKU: N-227
C$ 23,058
Out of stock

Complete Solar Heating Package SWH-5 - 5x TZ58
1800 30R collector

Requires SIN or Tax ID for shipping to USA

complete solar water heating package


Complete solar heating package for domestic hot water for up to 4 people. These are the most advanced solar water heating kits on the market. Simple to install with no soldering or electrical wiring required. All kits come with every component you will need to successfully install your solar heating system. Includes items such as fill pump for quick pressurization and servicing of the heating system. All kits come standard with RESOL DeltaSol BS+ controller two relays for optional 2nd heating zone for pools, hot tubs, hydronic heating, furnaces, or boiler systems. Advanced features such as holiday mode and energy monitoring are included.

DIY solar heating systems are designed to take the guess work out of solar heating. Modern day vacuum tube collectors can reach temperatures exceeding 400°F, and as such proper sizing and installation is very important. All our kits have been engineered to provide the maximum performance will addressing all safety features.


  • 5 x SunRain TZ-58 1800 30R Vacuum tube collector
  • 119 gallon SolarStor solar water tank; incudes built in heat exchanger with 4.5 Kw Back up heating element UL & CSA certified
  • RESOL FlowSol solar pump station with wilo pump and integrated RESOL BS+ digital controller for two heating zones
  • 100' of Aurora Solar Flex 3/4" OD stainless steel piping, pre insulated and weather proof with sensor wire
  • all quick connect Aurora Flex Fittings for fast installation (no soldering)
  • pre-mixed ProSol LH-T high temp (475°F) solar heating fluid for vacuum tube collectors
  • positive displacement drill pump for filling and servicing
  • 80 liter (21.1g) High Temp Solar Zilmet Expansion tank - Specifically designed for solar heating
  • Caleffi Solar Air Vent - World's only solar Auto Air Vent!
  • complete solar installation manual and free technical support

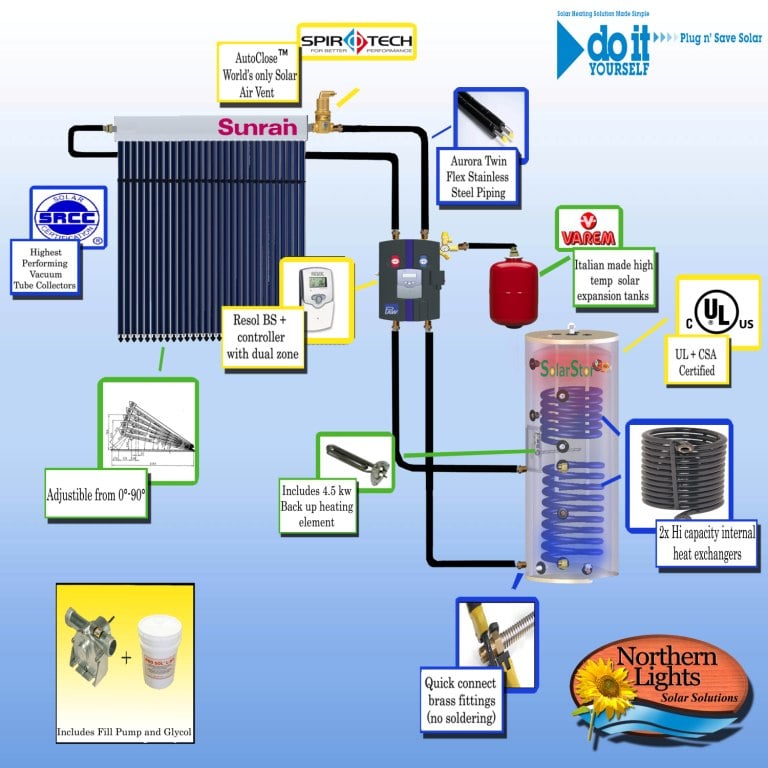

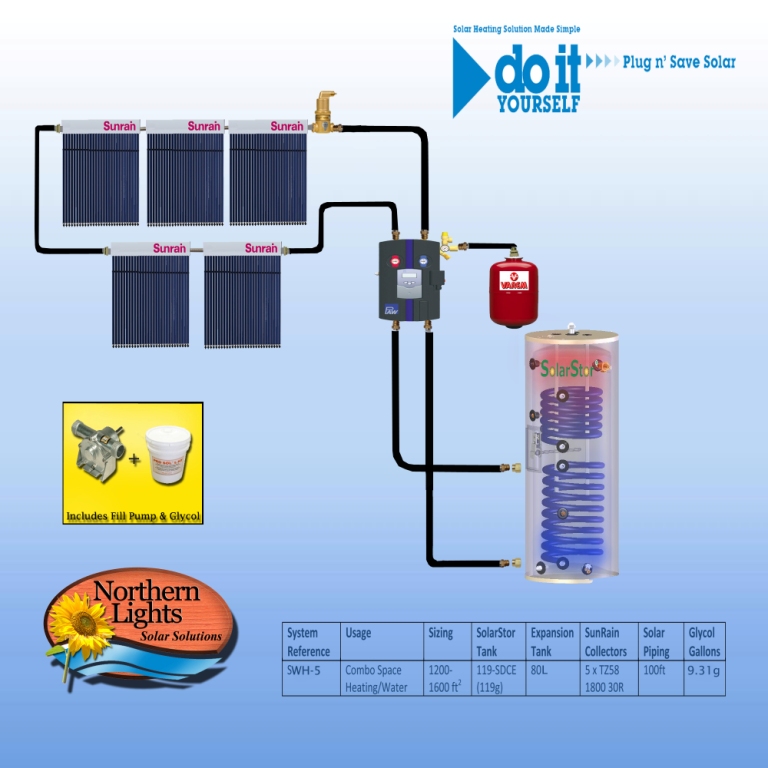

Design Layout

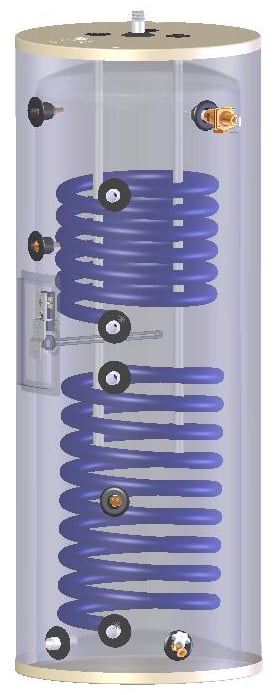

solar storage tank specifdications

SolarStor Dual Coil Tank with Back Up 4.5Kw Heating Element

ul listed solar tanks


Dimension (L x W x H) 12 x 12 x 12 Inch
Weight 1200 Pound
