Parts Price List 2009 - Call for Shipping Quote 1 800 317 9054

GET A SHIPPING QUOTE

(add items below and we will send you a shipping quote based on weight and  your location)

PRICING-Select your Category
Solar Water Tanks Solar Insulated Piping Solar Heat Exchanger Solar Controller Solar Evacuated Tube
Currency:
  Solar Evacuated Tube Product Name Product Description Price
COL-TZ58/1800-20R Vacuum Tube Collector - Non Pressurized Vacuum Tube open heat tubes with stainless steel collector. 20 tubes 1800mm x 58mm. Aluminum frame or roof mounts included. $1,000.00USD
COL-TZ58/1800-30R Heat Pipe Solar Collector- Pressurized 30 tube systems with copper heat pipes 1800mm x 58mm. To be used on close loop pressurized systems up to 118 PSI. Aluminum frame or roof mounts included. $1,250.00USD
COL-TZ58/1800-40G Pool Vacuum Tube Collector- Non Pressurized Vacuum Tube open heat tubes with stainless steel collector. 40 tubes 1800mm x 58mm. Comes complete with either ground stand or roof mount kit. $750.00USD
Solar Cover Custom made covers with optional silk sreened logo. The covers are made of marine grade industrial vinyl with quick connect straps for fast installation. Enhanced UV protection, these covers are great for over sized heating systems in the summer months. Available for TZ58 1800 30R series. Green or Grey. $350.00USD



  Solar Controller Product Name Product Description Price
MISC-Solar Valve- Automatic Diverter Belimo Hi Temperature 3-Way diverter valve with automatic actuator. Made from solid brass and designed to withstand high temperatures of solar water heating systems. 3/4" fitting. Works with DeltaSol BS/plus system to control second zone. $250.00USD
Pump - Laing Solar DC-5 Circulating pump- Laing DC-5, 24V-6V DC solar pump. No bearings or moving pars. Most efficient solar pump available. Copper housing for up to 220 degrees hot water applications. Vaialble solar sensing. Made In GERMANY. $265.00USD
Pump - Wilo 110 VAC Wilo hot water AC pump 110-120 VAC, 3 Speed pump, .9 Amps. High temperature up to 220 Degree F. 150 PSI. Made in GERMANY. $225.00USD
Solar DeltaSol BS/1 Complete Solar Domestic Hot Water controller includes 4 temperature/zone inputs and 1 relay outputs. $350.00USD
Solar DeltaSol BS/Plus Complete Solar Domestic Hot Water and Auxilliary 2nd heat circuit (pool, home heat, cooling) controller includes 4 temperature/zone inputs and 2 relay outputs. $550.00USD

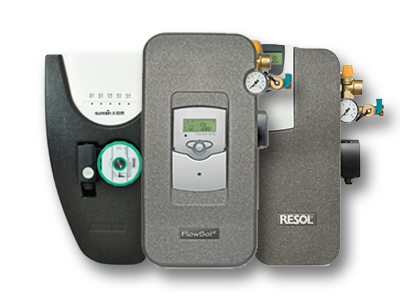

Solar Distribution System (SDS) FA - Residental Complete solar control system inlcudeing solar working station with drain fill valves and shut off isolation valves. Patented air scope, flow meter, pressure release valve, pressure guage, temperature guage. Wilo 3-speed pump included. Qualitly brass components are high temperature rated. Note: Requires RESOL controller $850.00USD
Solar Distribution System (SDS) Solex - Commercial Complete Solar Distribution system with full integrated controller, designed for 15Kw-25Kw output with built in heat exchanger and dual pumps. Ideal for solar Hydronic (infloor heat) system and commercial system. $3,100.00USD
Solar Distribution System (SDS) FA C+ - Residental Complete solar control system inlcudeing solar working station with drain fill valves and shut off isolation valves. Patented air scope, flow meter, pressure release valve, pressure guage, temperature guage. Wilo 3-speed pump included. Qualitly brass components are high temperature rated. Comes with RESOL DeltaSol BS/Plus, prewired and includes 110 VAC plug for quick installtion. $1,495.00USD

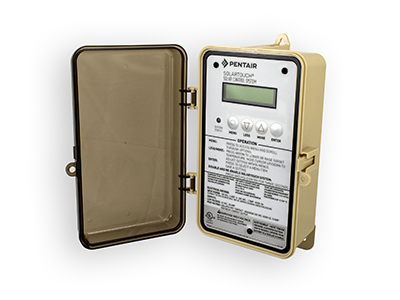

Solar Pool Controler for Pool/Hot Tub Most advanced solar pool and hot tub controller. System includes digital controller, automatic actuator, 3-way valve, sensors. Includes features such as freeze protection, night cooling, sensor fault detection. Operates 74-104 degrees, 120/220 VAC. $660.00USD

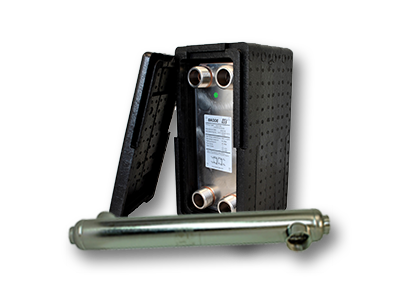

  Solar Heat Exchanger Product Name Product Description Price
EXD-Forced Air to Water Heat Unit Exchanger Used in commercial setting or Shop space heating. 90,000 BTU output with built in variable speed fan. Also used in commercial installtion for large heat dump capacity. $675.00USD
EXD-Solar Air to Water Heat Exchanger Used with Forced Air Furnaces to transfer solar heat to space heating. 12" x 12" upto 60,000 BTU of heat transfer. Large units available $195.00USD
EXD-Solar Dissipation Heat Dump Designed to dissipate up to 10,000 btu's (3 Kw)of excess heat per hour. Can be run in series for larger systems. 1/2' FTP. Use to COOl solar systems also can be used as space heater. $375.00USD
SOL-30 Solar Heat Exchanger 30,000 BTU Hot water heat exchangers designed specifically for solar application. 3/4" MPT Unlike other heat exchnagers the patented design alows greater heat transfer at low flow rates found in solar heating systems. $200.00USD
SOL-80M Solar Heat Exchanger 80,000 BTU Solar hot water heat exchangers designed specifically for large solar application. Unlike other heat exchnagers the patented design alows greater heat transfer at low flow rates found in solar heating systems. - 1" MPT $290.00USD
SOL-DW30 Solar Heat Exchanger 30,000 BTU Doulbe Walled Solar hot water heat exchangers designed specifically for solar application where double walled leak detection is required by code. Unlike other heat exchnagers the patented design alows greater heat transfer at low flow rates found in solar heating systems. - 3/4" MPT $600.00USD
SOL-DW80M Solar Heat Exchanger 80,000 BTU Doulbe Walled Solar Hot water heat exchangers designed specifically LARGE for solar application where double walled leak detection is required by code. Unlike other heat exchnagers the patented design alows greater heat transfer at low flow rates found in solar heating systems. - 1" MPT $950.00USD
SOL-T100S- Solar Pool Heater Stainless Steel Coil 98,000 BTU High flow Solar Pool Heater with PVC Shell and stainless steel internal coil. Deigned to withstand harsh pool chlorine. This unit is used in conjunction with a regular pool heater to maintain the temperature. (1.5" pool connection 1.25" heat exchange connection) $595.00USD
SOL-T200S- Solar Pool Heater Stainless Steel Coil 198,000 BTU High flow Solar Pool Heater with PVC Shell and stainless steel internal coil. Deigned to withstand harsh pool chlorine. This unit can be used as a solar PRIMARY pool heater due to its large heat exchanger capacity. (1.5" pool connection 1.25" heat exchange connection) $695.00USD

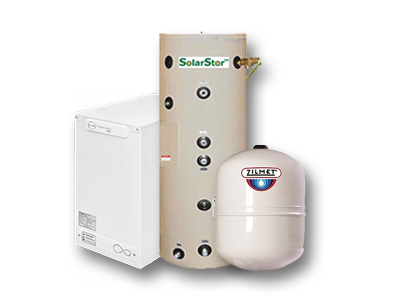

  Solar Water Tanks Product Name Product Description Price
Solar Contender SSC - 119 Solar glass lined tank for pre-heat with internal bottom heat exchanger. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 100 gallons. $2,285.00USD
Solar Contender SSC-119SB Solar glass lined tank for pre-heat with internal bottom heat exchanger plus top heat exchnger. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 119 gallons. $2,698.00USD
Solar Contender SSC-119SE Solar glass lined tank for pre-heat with internal bottom heat exchanger plus 5.5 Kw heating element with thermostatic control. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 100 gallons. $2,285.00USD
Solar Contender SSC-50 Solar glass lined tank for pre-heat with internal bottom heat exchanger. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 50 gallons. $1,342.00USD
Solar Contender SSC-50SB Solar glass lined tank for pre-heat with internal bottom heat exchanger plus top heat exchnger. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 50 gallons. $1,822.00USD
Solar Contender SSC-50SE Solar glass lined tank for pre-heat with internal bottom heat exchanger plus 5.5 Kw heating element with thermostatic control. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 50 gallons. $1,568.00USD
Solar Contender SSC-80 Solar glass lined tank for pre-heat with internal bottom heat exchanger. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 580 gallons. $1,746.00USD
Solar Contender SSC-80SB Solar glass lined tank for pre-heat with internal bottom heat exchanger plus top heat exchnger. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 80 gallons. $2,183.00USD
Solar Contender SSC-80SE Solar glass lined tank for pre-heat with internal bottom heat exchanger plus 5.5 Kw heating element with thermostatic control. SRCC OG-300 Certified plus UL and CSA certified. 7 year warranty. 80 gallons. $1,929.00USD



  Solar Insulated Piping Product Name Product Description Price
Dual Stainless Steel Solar Piping Dual SUS 304 3/4" piping with high temp EPDM insulation and weather proof coating. Includes silicon wire for temperature probe. Guarantees a professional in 1/4 the time it would take to do a copper installation. No leaks and no soldering! Comes complete with 4 flanges and flange kit and cutting tool. 50 feet (100 feet total. Custom sizes available. $500.00USD
ZM-ProSol LH-T Special High Temp for Vacuum tube solar Propylene Glycol 5 Gallons. Premixed reversibly vaporizable special Propylene Glycol-based Heat Transfer Fluid, for solar heating installations $198.00USD
ZM-Solar Power Panel- 12 Watts Monocrystalline Silicon Solar Panels 12 Watts. 680x340x28mm. Max V=16.8|Max A=1.49 USED with Laign DC-5 solar pump. $150.00USD
