SOLAR CONTROLLER - RESOL DELTASOL BS/1

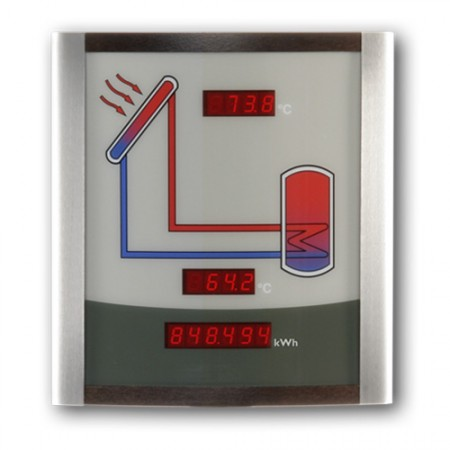

ReSol Smart Display SD3
Download Product Specification PDF ReSol SD3
The RESOL SD3 controller for the FloCon pump stations is equipped with Resol Vbus® communications, allowing the Smart Display SD3 to be located in a more convenient area of the building or home.
FEATURES
-
modern display screen with 3 LED readout
-
shows temperature in the solar panel
-
show temperature in the HW storage cylinder
-
displays heat gain quantity values
-
no external power supply required
Technical data
-
Housing: High-grade steel frame with wood elements
-
Protection type: IP20 (suitable for dry rooms)
-
Protection class: III
-
Display: Numerical 7-segment LED display
-
Segment size: 7,5 x 10 mm, 10° digit inclination
-
Ambient temperature: 32 ... 104 °F
-
Power supply: via RESOL VBus®
-
Bus connection: RESOL VBus®
Dimension (L x W x H) | 12 x 12 x 12 Inch |
Weight | 8 Pound |
