Dew Point Switch - RESOL TS10

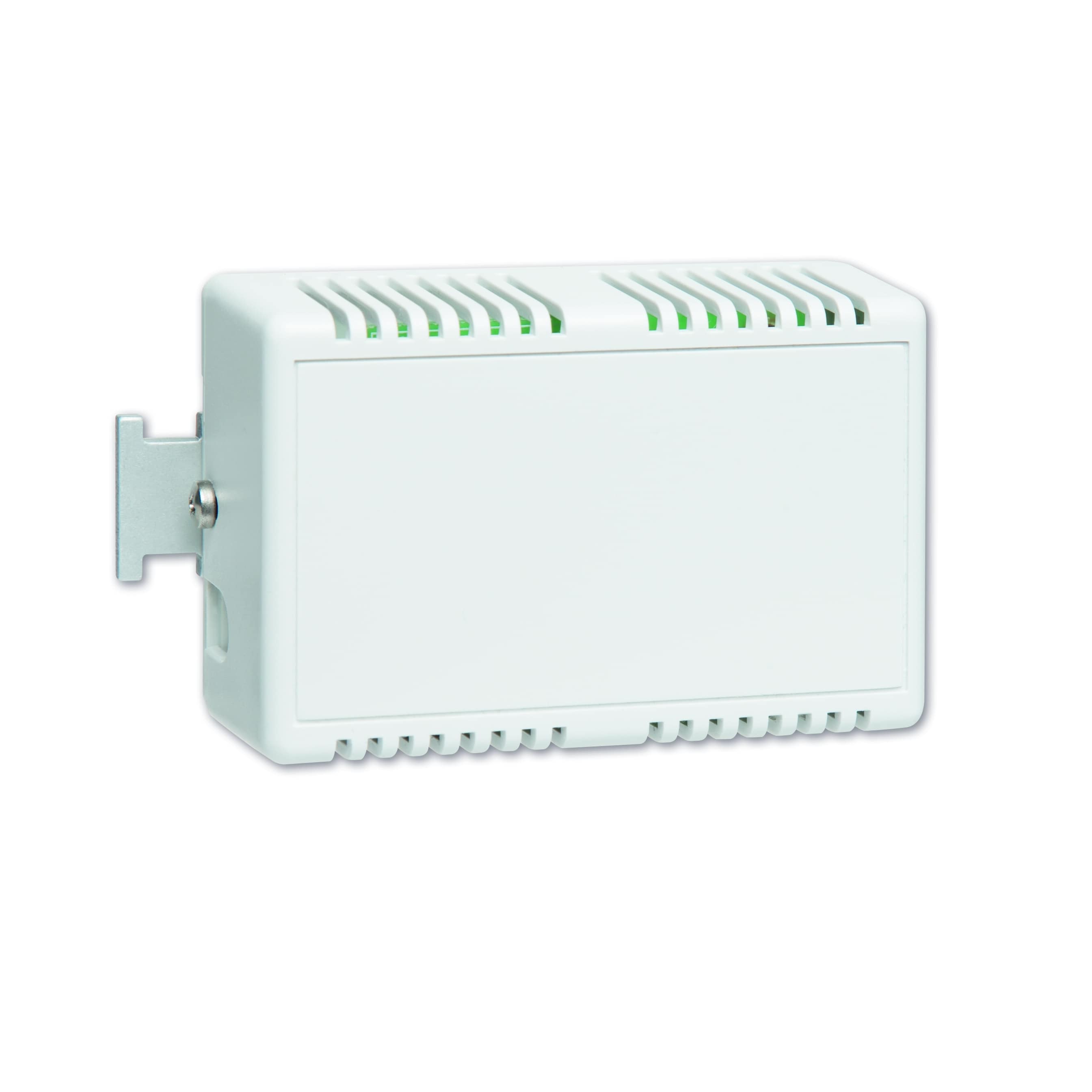

RESOL TS10 - Dew Point Switch

The TS10 Dew point switch is designed for condensation detection in a heating circuit used for cooling purposes. If the relative humidity falls below the adjusted set value, the TS10 will switch a potential-free contact.

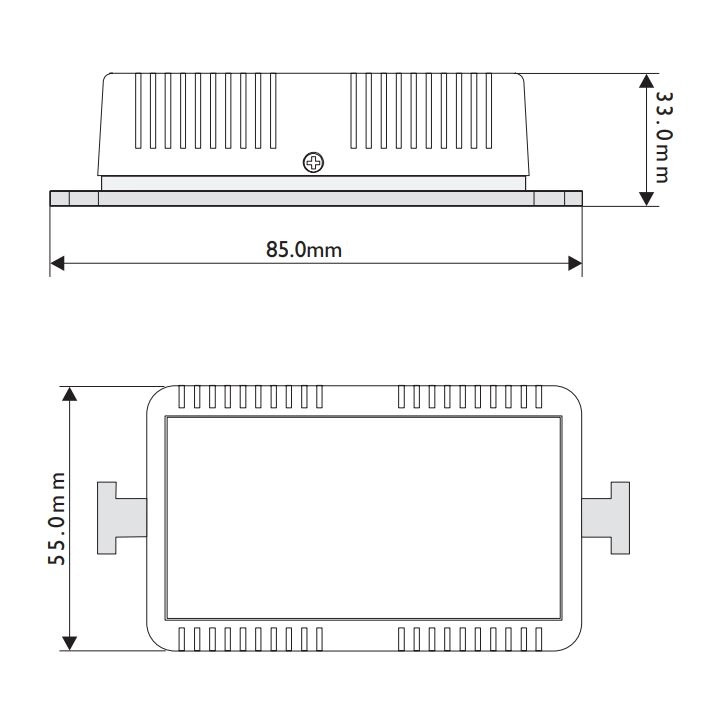

DIMENSIONS

Technical Data:

Operating capacity:50 - 95% relative humidity
Measuring accuracy:+/- 3% relative humidity
Switching difference:(microswitch) at 50% relative humidity: approx. 4% relative humidity
Switching capacity:48 VAC maximun; 1 - 100 mA (switches with gold contacts)
Working life:100,000 switching cycles
Ambient temperature:0 - 60°C
Temperature coefficient:-0.2% relative humidity /K at 20°C and 50% relative humidity
Half-value time at v=2 m/s:1.2 min
Mounting position:Any position
Measuring element:hygrostat, water-resistant
Dimensions:85x55x33 mm
Weight:approx 80 g
