Pentair SolarTouch Controller with Motorized 3-Way Valve

US$ 571.57
SKU: N-473
2 In Stock

Pentair SolarTouch Controller with Motorized 3-Way Valve

Monitor pool water temperature and solar collectors with the touch of a button.

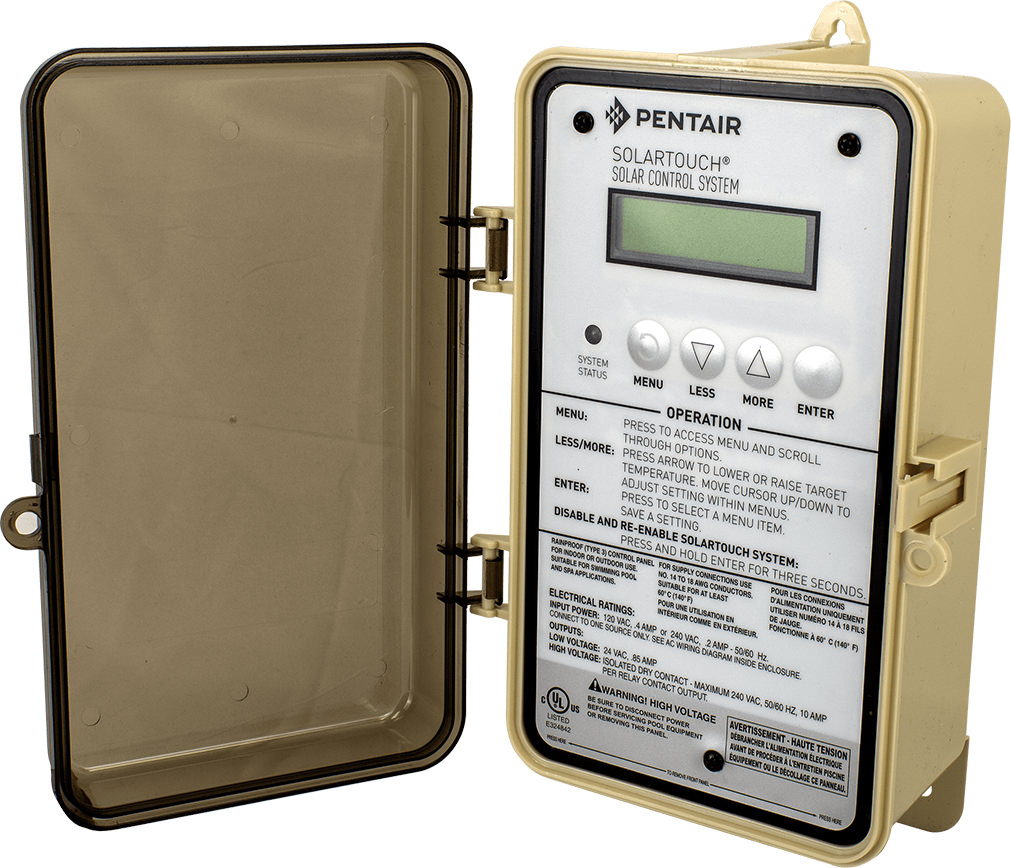

Pentair Solartouch Controller

The SolarTouch Solar Control System offers full digital control for the most precise, efficient, swimming pool heating possible. The digital thermostat is set with the touch of a button and will monitor the temperature of your pool water and solar collectors.

Pentair Solartouch Controller

The SolarTouch controller gives you the precision and reliability of full digital control. Just set the digital thermostat and the SolarTouch controller will monitor the temperature of the pool water and solar collectors. Whenever the sun offers sufficient energy for effective heating, the SolarTouch controller opens a motorized valve and sends filtered water to your collectors. If temperatures drop, the system shuts the valve to keep cold water out of your pool.

Features

  • Digital calibration of water and solar temperature in 1° increments
  • Integrates with IntelliFlo® and IntelliPro® variable speed pumps for unparalleled efficiency
  • Set pool temperatures and solar temperature differentials with the touch of a button
  • Solar valve automatically drains the solar collectors when pump shuts off
  • Durable PTFE seal is maintenance free for years of dependable service
  • LCD display provides sharp, clear readings
  • LED indicator lights confirm SolarTouch is working; service indicator LED shows when attention is required
  • Motorized valve actuator is built to last with sturdy steel gears; highly efficient low-voltage motor; service switch for flow direction
  • Weatherproof composite enclosure
  • Nocturnal cooling and recirculation freeze protection with filter-pump timer override
  • 3-year warranty

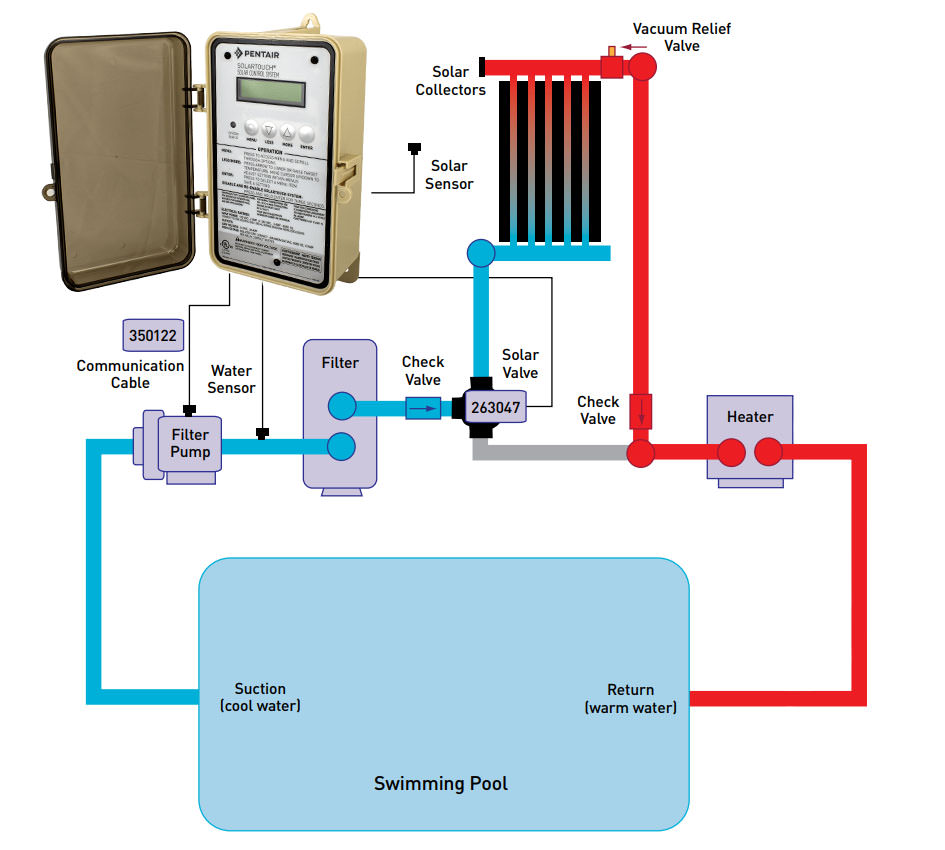

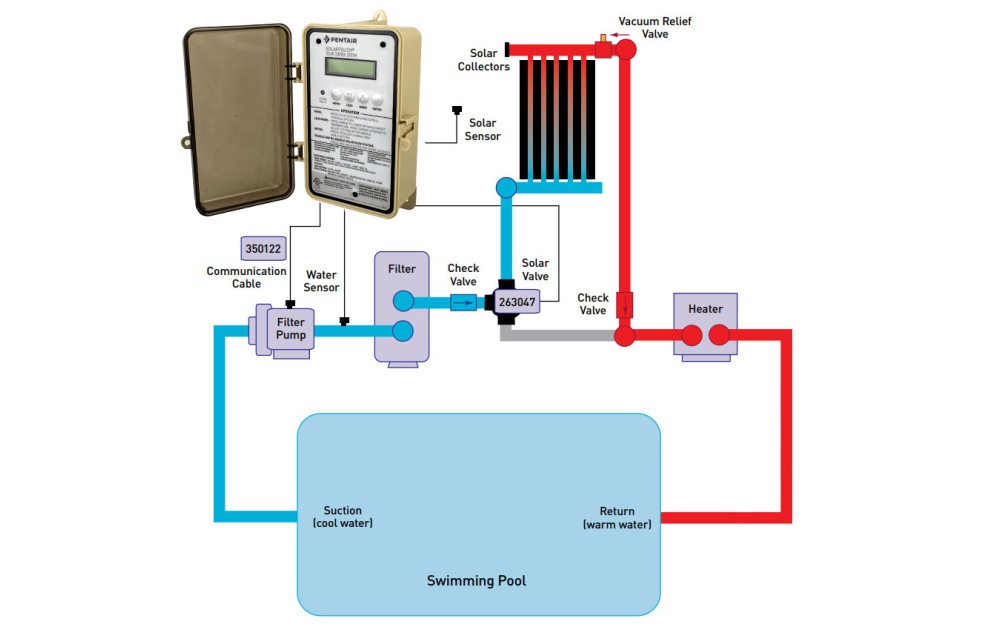

Suntouch Diagram

Specifications:

Power:
120VAC, 0.4A 50/60 Hz
240VAC, 0.2A 50/60 Hz

Output:
24VAC (for solar actuator valve)
High Voltage isolated contacts 10A @ 120VAC/ 240VAC

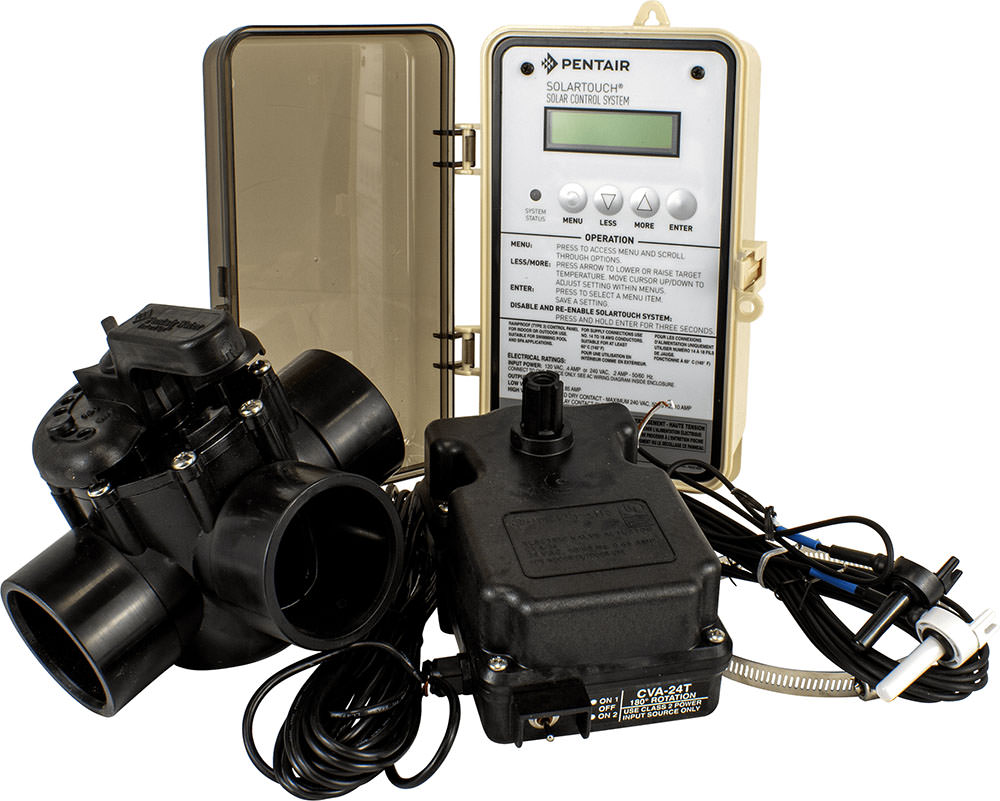

Includes:

  • SolarTouch Controller - QTY 1
  • CVA-24T Valve Actuator (P/N 263045) - QTY 1
  • Solar valve (P/N 263047) - QTY 1
  • 10k ohm Temperature Sensor kit - 20 ft. water, solar 40 inches - QTY 1
Dimension (L x W x H) 20 x 13 x 9 Inch
Weight 10 Pound
