Humidity Sensor - RESOL FRHd - Digital

SKU: N-443
C$ 216
Out of stock

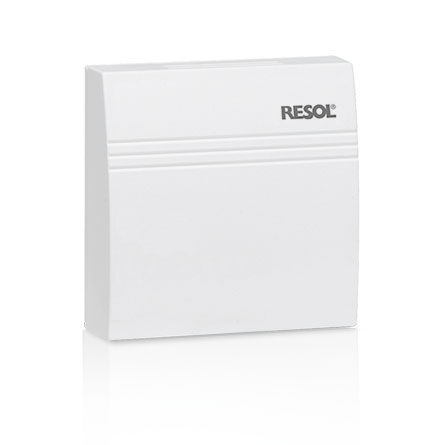

RESOL FRHd - Digital Humidity Sensor

RESOL FRH Humidity sensor

The FRHd relative humidity sensor is used for measuring the relative humidity as well as the room temperature. For connection to the DeltaSol® MX and DeltaTherm® HC MAX from version 2.06 and DeltaSol® BX Plus (FRHd only) from version 2.06


FRHd Humidity sensor (digital) » incl. JST connection cable

Technical Data

Housing: For in-wall mounting, Material ASA, colour: pure white, similar to RAL 9010
Cable gland: at the back
Protection type: IP 10 according to EN 60529
Dimensions: 84.5 x 84.5 x 25 mm
Measuring range: Humidity: 0…100% RH
Temperature: 0…40 °C
Ambient temperature: 0…40 °C

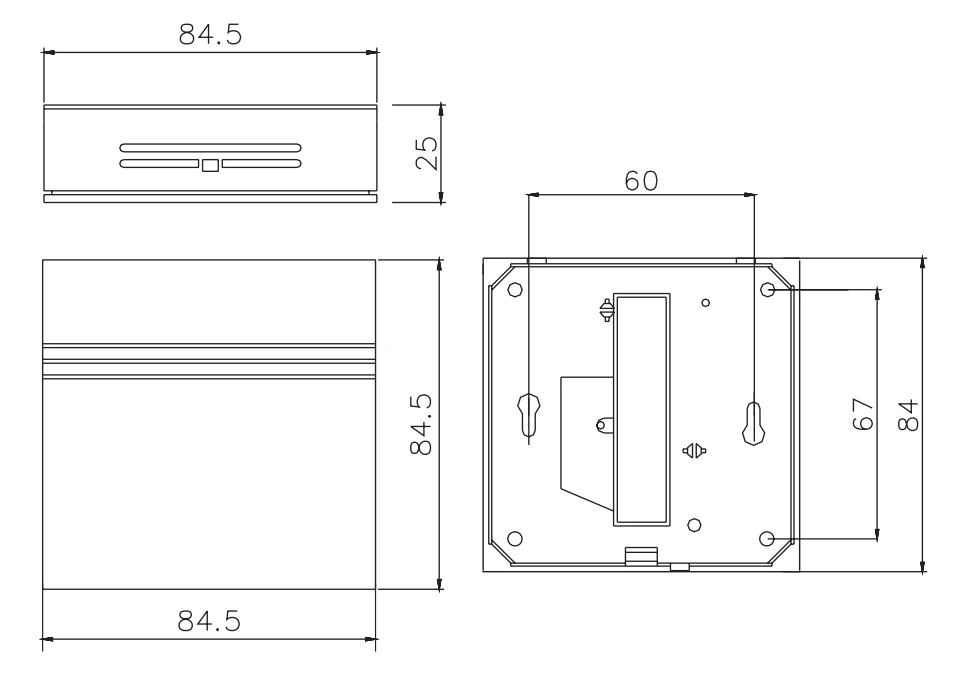

Dimensions (mm)

RESOL FRH Humidity sensor Dimensions

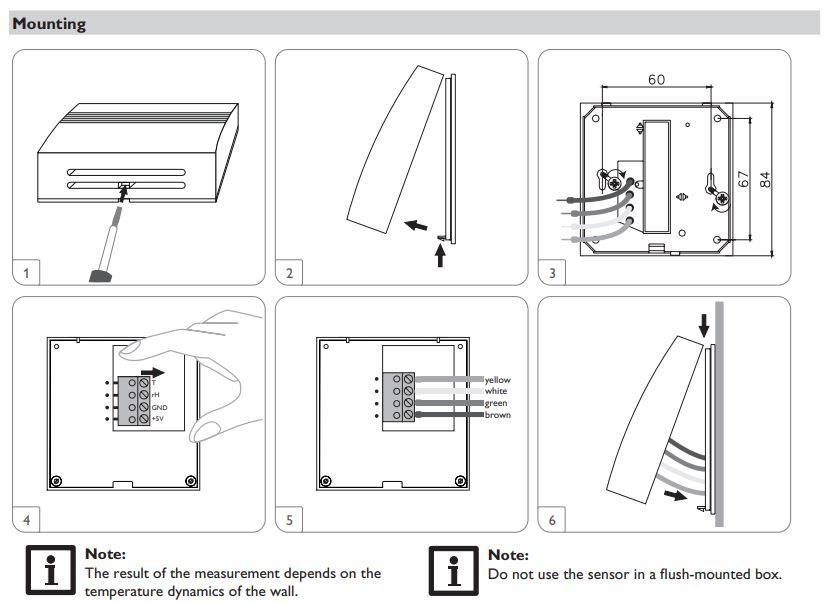

RESOL FRH humidity sensor mounting

Dimension (L x W x H) 3 x 5 x 3 Inch
Weight 1 Pound
