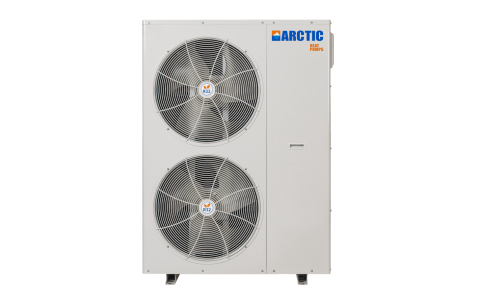

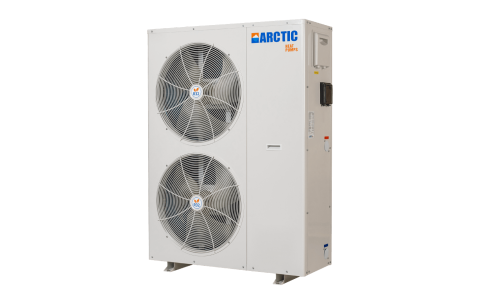

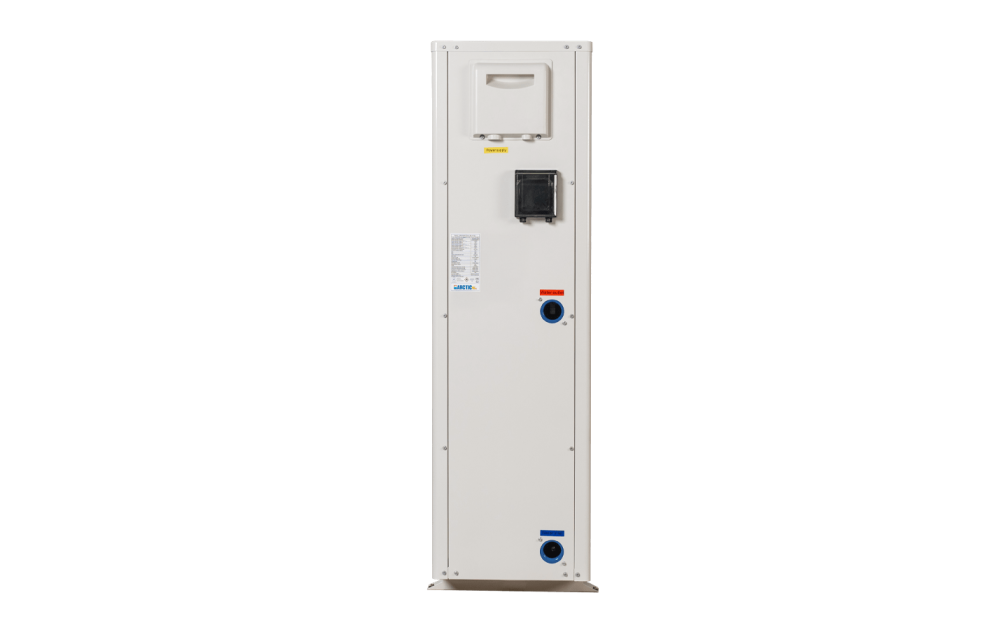

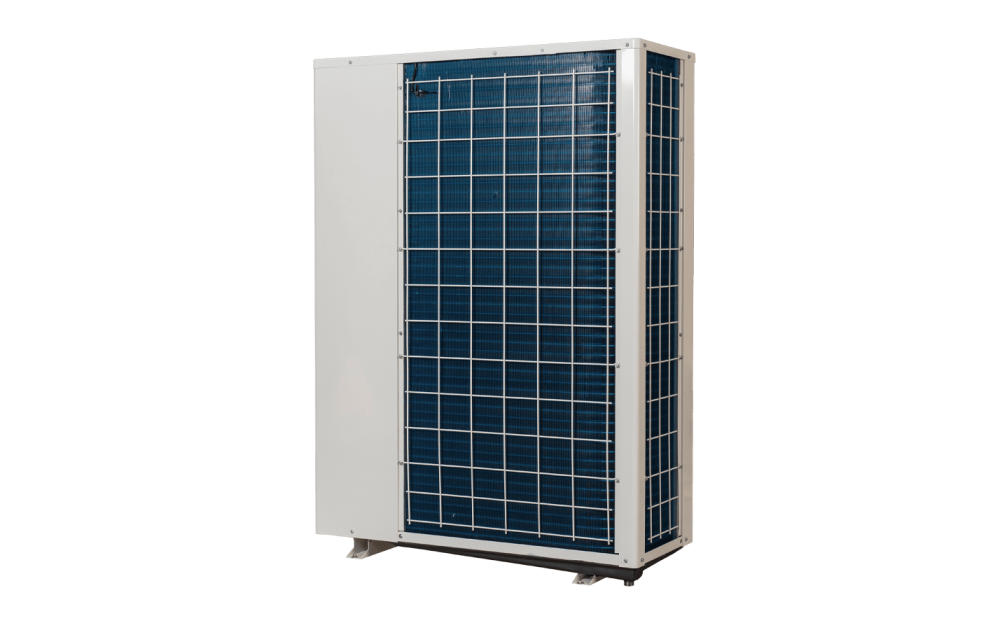

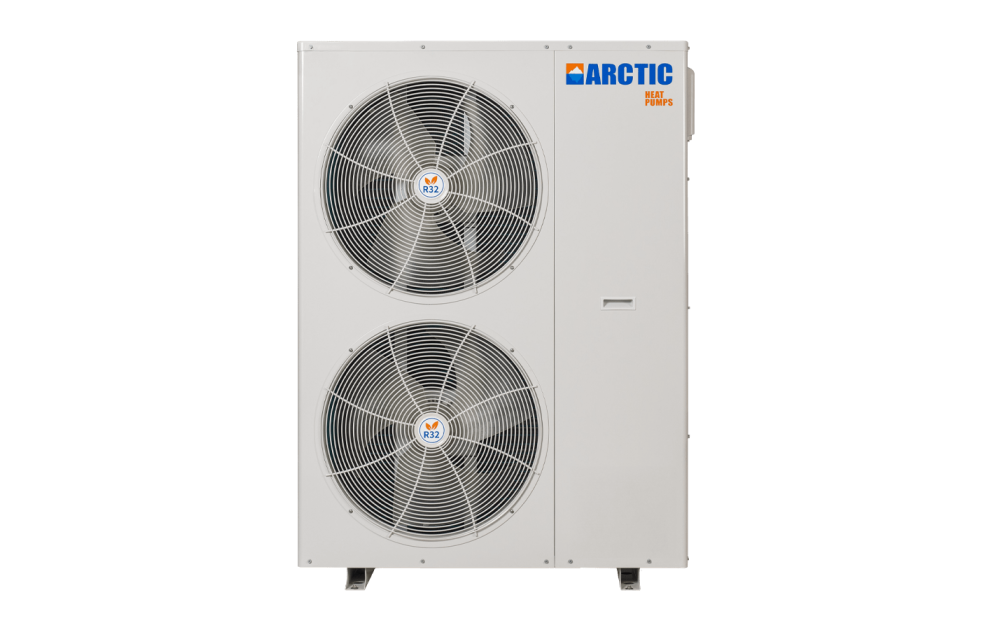

Arctic Titanium Heat Pump for Swimming Pools and Spas Heats & Chills 96,000 BTU DC Inverter

Arctic Heat Pump 060ZA/B-R32 - 28 KW (Heats/Cools)

Heats & Chills - 96,000 BTU - DC Inverter

Air to Water Heat pump for pools, hot tubs and spas

Requires SIN or Tax ID for shipping to USA

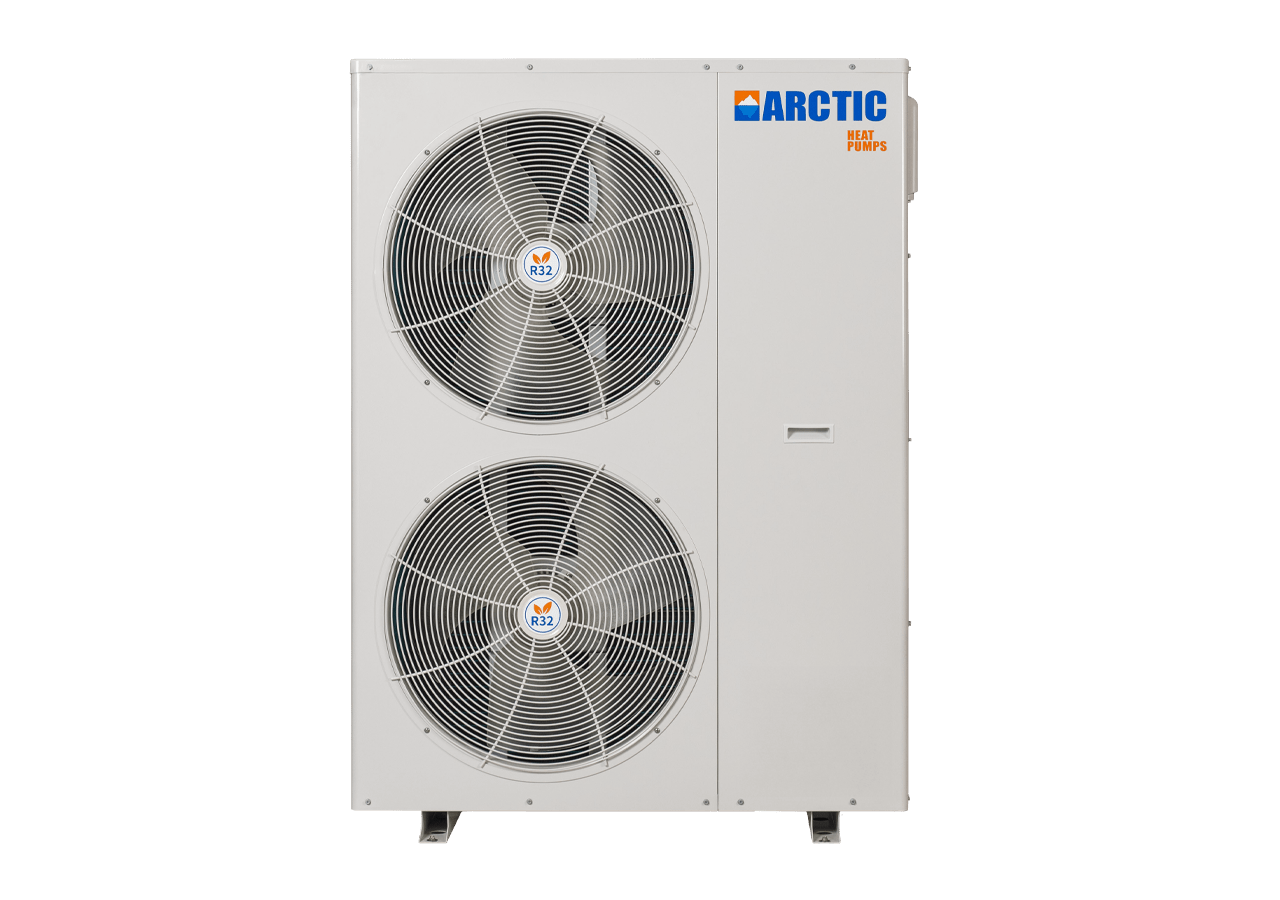

060ZA/B Heat/Chill Heat Pump

Chiller and Heater in one unit

While hot tub users most often reference the heating requirements, the Arctic Heat Pump is also a chiller if need. That’s right...It can heat and cool based on a simple controller selection. Ideal for hot climates that need a retreat from the hot summer heat! A cold water plunge is a must for Sauna owners. Now you can quickly change your hot tub to a cold plunge tub! Cold water therapy has many health benefits and is growing in popularity in North America as we discover what the Nordic Culture has practiced for centuries.

Excessively hot swimming pools cause problems with the chemical imbalance and can quickly become full of algae if not properly monitored. Chlorine evaporates as the water temperature rises. In areas such as California, Texas, Arizona and Florida, the hot summer temperatures can be difficult for pool owners. The Arctic Pool & Spa Heat Pumps allows owners to reduce the temperatures back down to proper levels. By Chilling your pool you can get reprieve from hot summer heat waves, when the temperature drops, the Arctic Heat Pump will switch back to heating mode.

Heating & Cooling

The Arctic 060ZA/B-R32 Heat Pumps works down to -4°F (-20°C). This air to water heat source is the most efficient cold weather heat pump on the market. Heats and cools with over 80% savings of traditional heating equipment. This unit is cable of producing up to 28 Kw or 96,000 BTU of heat energy. No other pool or spa heat pump on the market will outperform the Arctic 060ZA/B-R32 in colder weather. This allows you to open your pool earlier and close it later. It is also ideal for energy savings for spas and hot tubs. Working up to 104 F even in 20 F conditions! The Arctic 060ZA/B-R32 is great heat pump for most pools.

Three Modes

Heating, Cooling, and Auto

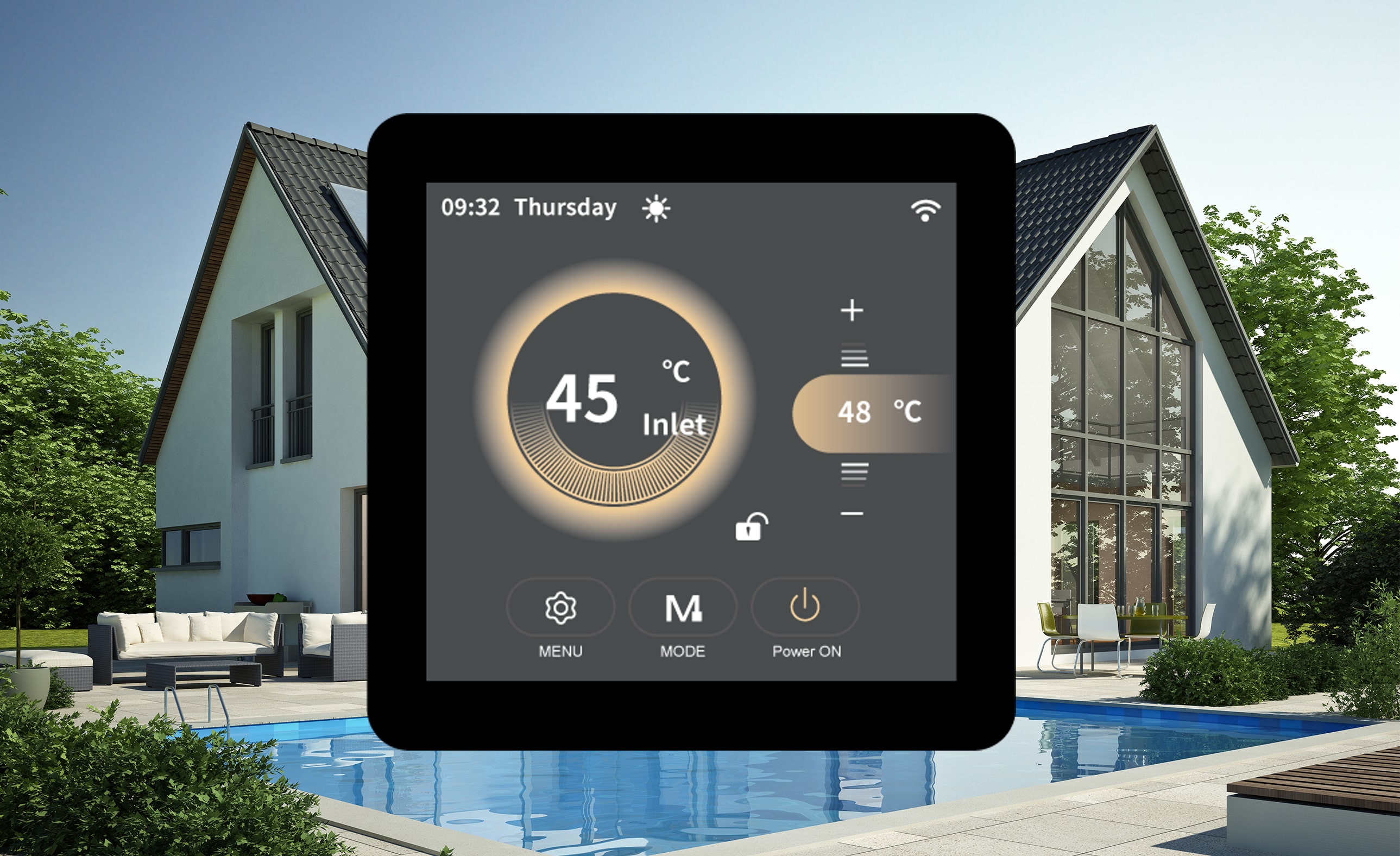

Includes Touch Screen Heat Pump Digital Controller

Easy to operate Touch Screen controller. Set the water temperature and other parameters as you need, and monitor unit operation.

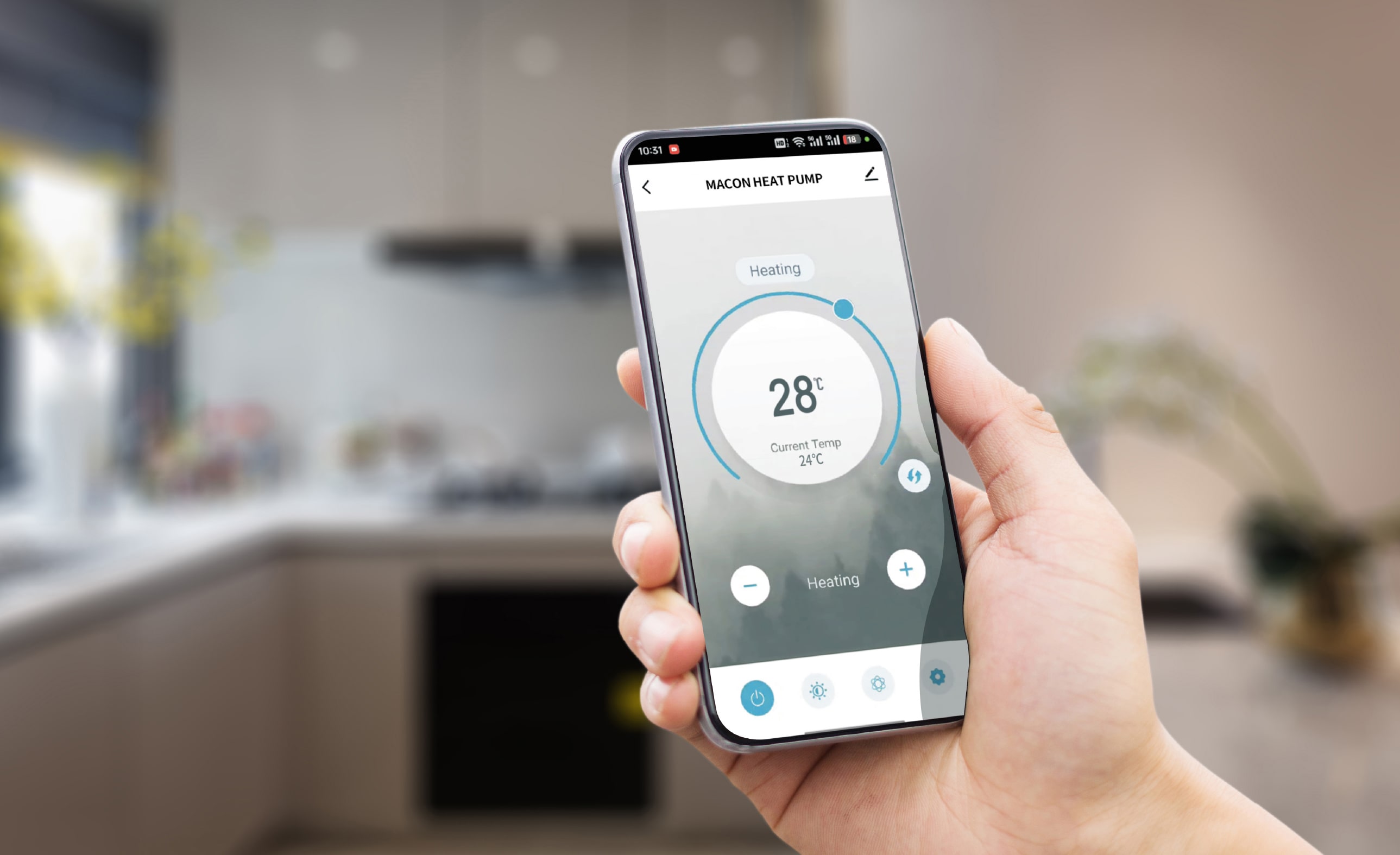

Wi-Fi Remote Control Option

Control your Arctic Heat Pump and know the current operation of the heat pump at any time via your phone.

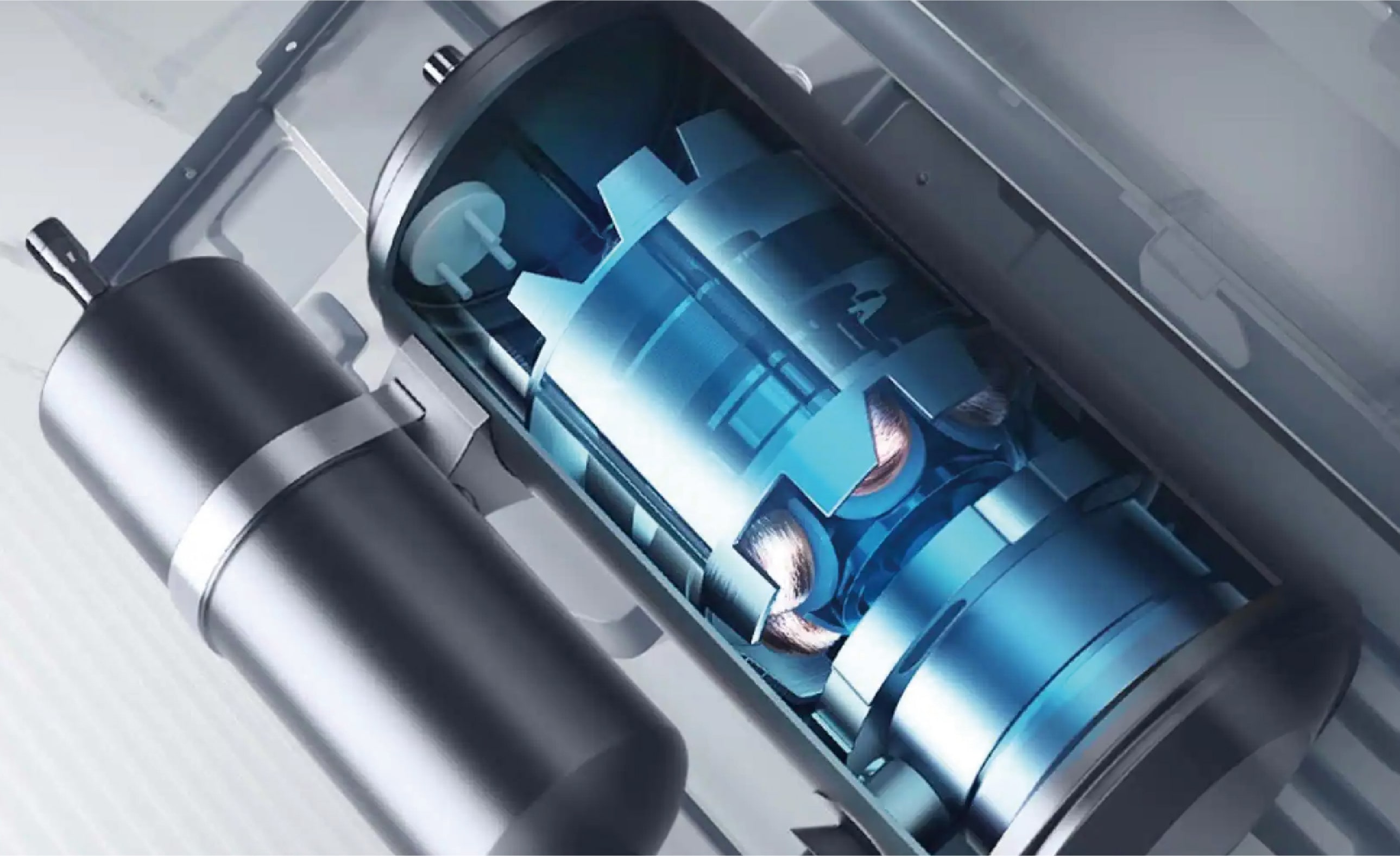

Double Rotor DC Inverter Compressor

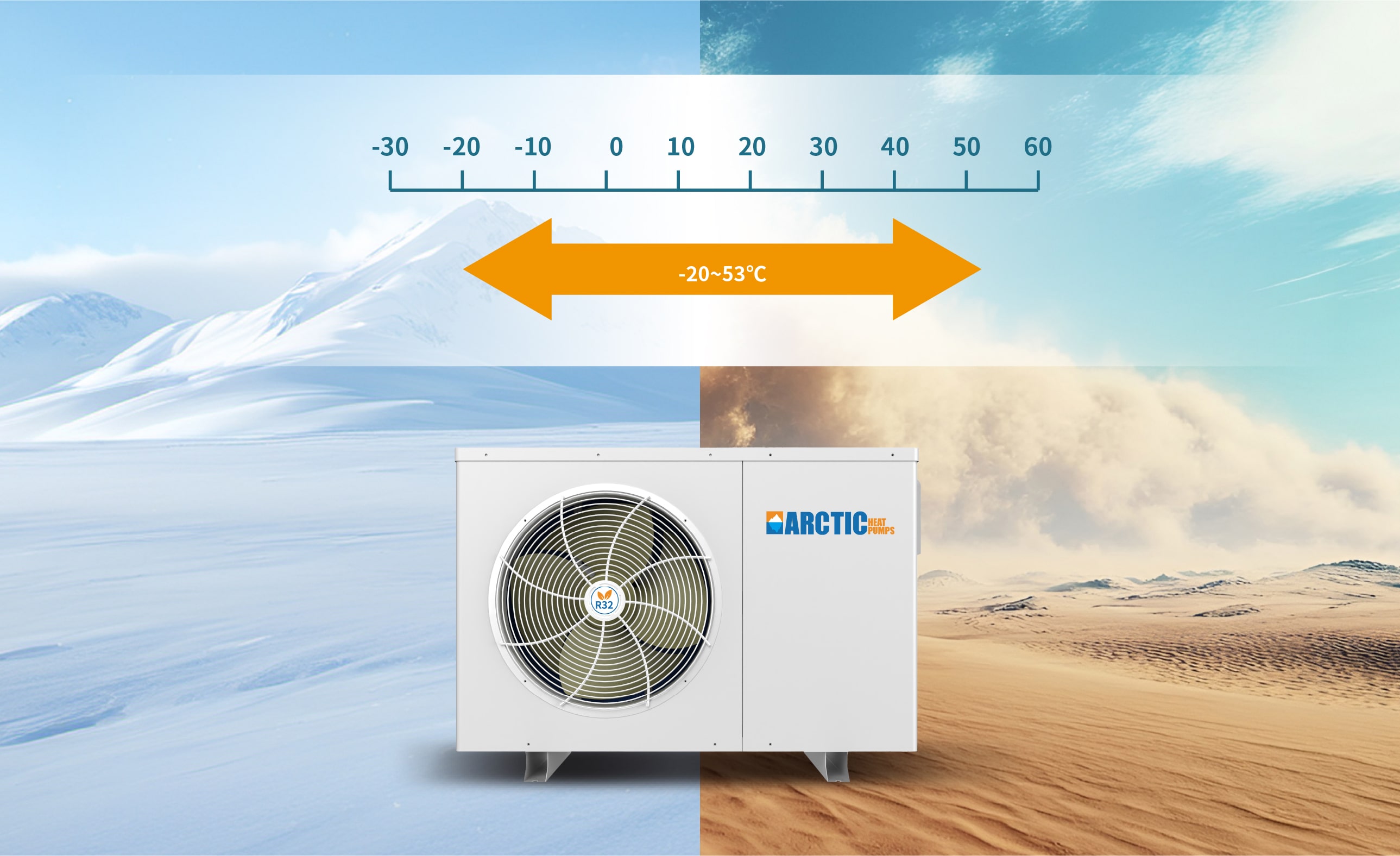

Operating Temperature Range

-4°F (-20°C) to 127°F (53°C)

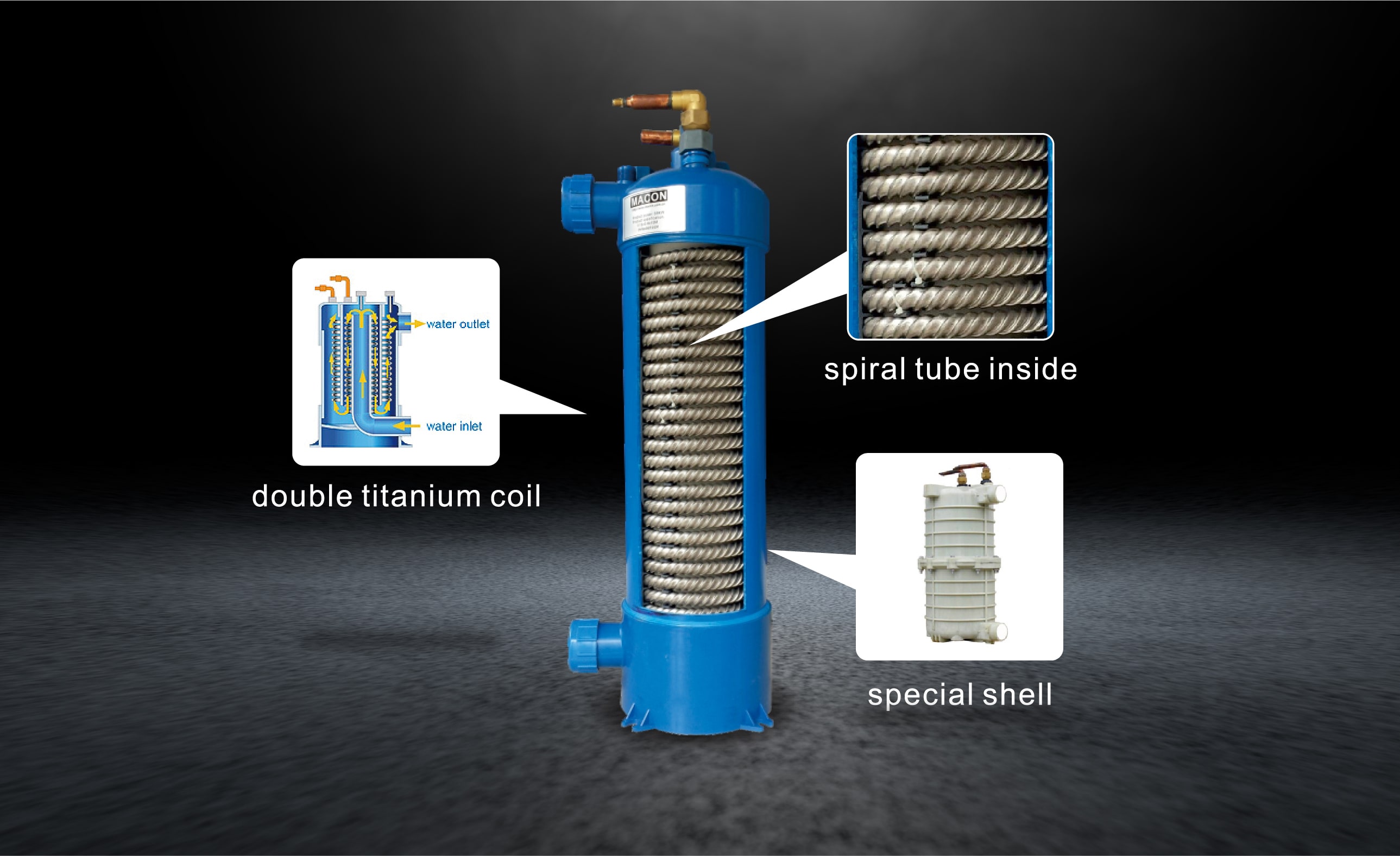

Spiral Titanium Heat Exchanger

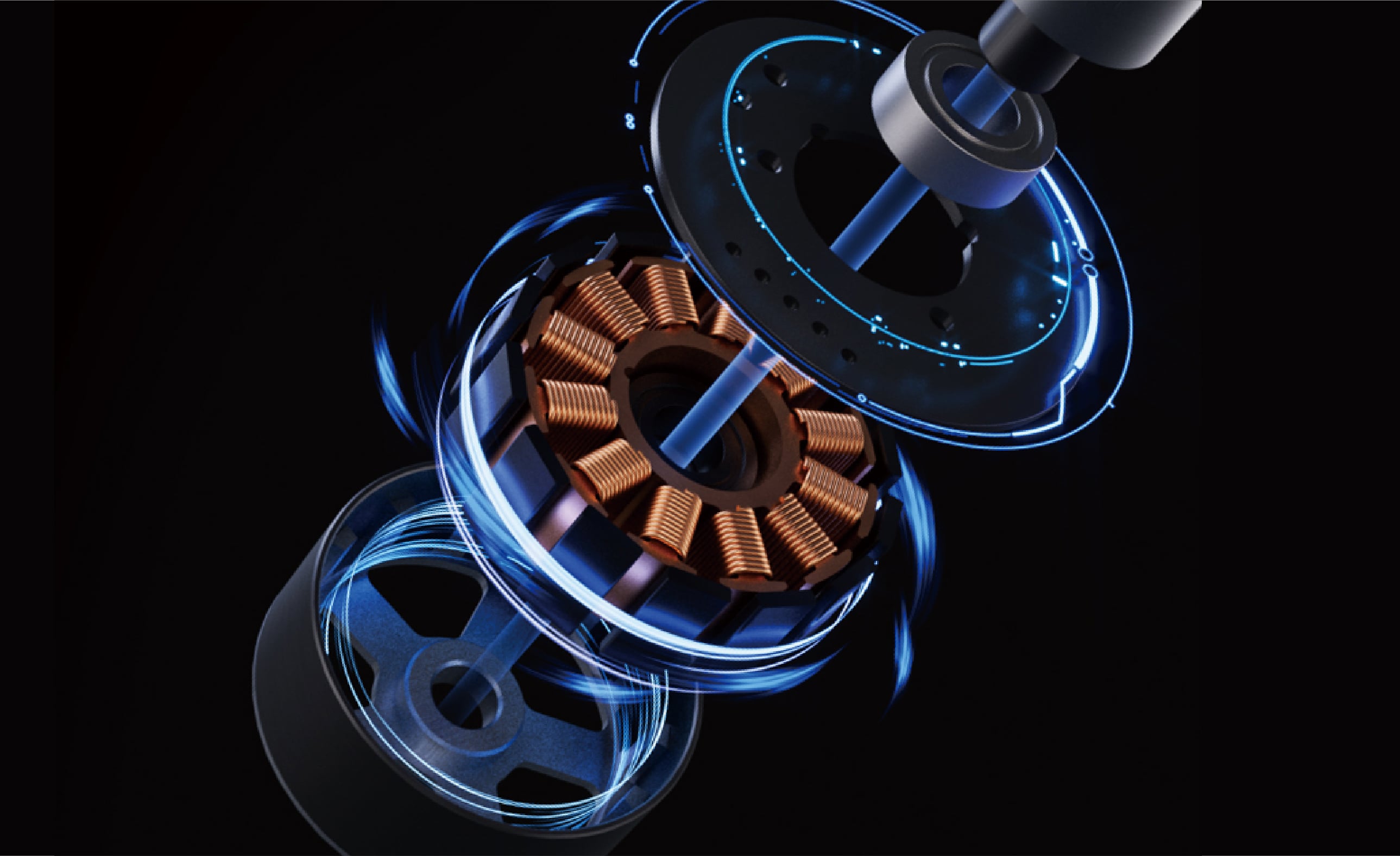

Ultra Quiet DC Brushless Fan Motor

Low Noise Operation

Intelligent Defrost

Includes

• Heat Pump for hot tubs, spas and smaller pools or swim spas
• Easy to install with no refrigeration mechanic needed
• Vibration pads included
• Drain pan and compressor low temp protection
• Hot gas defrost
• Drain Pan Freeze Protection for cold weather
• TUV Rheinland certified for installation in North America
• R32 Refrigerant System

How it works

The Arctic Heat Pump harness the energy found in the air. By using an oversized evaporator the energy is removed and transferred to the refrigeration. A compressor compresses the gas causing its temperature to increase. The hot gas then passes through a titanium pool heat exchanger where it is transferred directly to the pool or spa water. In cooling mode the unit reverses direction and chills the pool water by removing the heat from the titanium heat exchanger and discharging it out the evaporator.

The unit consumes electricity at a rate of only 1/3 to 1/5 of the heating capacity that it produces. The result is energy savings as high as 80% compared to traditional electric or gas pool or spa heaters. Built in hot gas defrost and drain pan/compressor freeze protection for cold weather performance.

Specifications

1. 1.5" water connections
2. Max Amps 31.9
3. 220-240 VAC
4. Output 28 Kw (96,000 BTU)
5. Weight 231.5 LBS (105 Kg)
6. Flow rate 43.2 GPM (pool pump sold separately)
7. 39.4" long x 17.3" wide x 54.9" tall
8. 1 year parts warranty - 2 year compressor warranty (Extended Warranty Available)

Specification Table - Arctic R32 DC Inverter Pool/Spa Heat Pumps

Model		MALCRW	015ZA/(B)-R32	025ZA/(B)-R32	040ZA/(B)-R32	060ZA/(B)-R32	080ZB/(B)-R32
Power Supply		V/P/Hz	220-240/1/60	220-240/1/60	220-240/1/60	220-240/1/60	220-240/1/60
Rated Heating Capacity	Ambient Temp 27℃ Water Outlet 26.67℃	kW	7.5	12.5	18.0	28.0	35.3
Heating Power Input		kW	1.2	1.80	3.00	4.40	6.50
Heating Current Input		A	5.2	7.8	13.0	19.1	27.4
Co-Efficiency of Performance		COP	6.3	6.9	6.0	6.4	5.4
Rated Heating Capacity	Ambient Temp 15℃ Water Outlet 28℃	kW	6.5	10.6	13.8	23.7	26.7
Heating Power Input		kW	1.53	2.39	3.40	6.06	7.27
Heating Current Input		A	6.4	9.9	14.2	27.1	31.8
Co-Efficiency of Performance		COP	4.2	4.4	4.1	3.9	3.7
Rated Heating Capacity	Ambient Temp 0℃ Water Outlet 28℃	kW	4.3	7.6	11.3	17.9	19.4
Heating Power Input		kW	1.37	2.48	3.50	6.11	7.19
Heating Current Input		A	5.8	10.4	14.6	27.4	32.0
Co-Efficiency of Performance		COP	3.1	3.1	3.2	2.9	2.7
Total Load		A	9.20	16.90	21.70	31.90	38.60
Breaker Sizing		A	15.0	25.0	30.0	40.0	50.0
Nominal Water Flow Volume		GMP/m3/h	11.7/2.7	19.35/4.4	27.45/6.2	43.2/9.8	53.55/12.2
Ht Xchgr Water AP @ Nom Flow		kPa	1	3	7	20	25
Water Inlet/Outlet Size Threaded		inch	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"
Refrigerant			R32	R32	R32	R32	R32
R32 Refrigerant Amount		oz/kg	28.22/0.8	35.27/1.0	45.86/1.3	67.02/1.9	95.24/2.7
Sound Level		dB(A)	48	52	54	54	58
IP Rating			IPX4	IPX4	IPX4	IPX4	IPX4
Net Weight		kg/LBS	49/108	61/134.5	73/161	105/231.5	115/253.5
Unit Dimensions(L/W/H)		mm	1010/370/620	1020/440/730	1020/440/880	1000/440/1395	780/880/1160
Unit Dimensions(L/W/H)		inches	39.8"/14.6"/24.4"	40.2"/17.3"/28.7"	40.2"/17.3"/34.6"	39.4"/17.3"/54.9"	30.7"/34.6"/45.7"
Certification No. and Standards				UL 60335-1:2016 UL60335-2-40:2022 CAN/CSA-C22.2 NO. 60335-1:16 CSA C22.2 No. 60335-2-40:22

RETURN POLICY:

We want you to be 100% satisfied with your purchase, if you are not, ship it back to us in the original packaging condition and we will refund your purchase less a 10% restocking fee, provided the equipment is received in good condition. Refund offer valid for 30 days from receipt of product.

WARRANTY:

We feel that being honest is a much better policy to win your trust rather than trying to lure you with nearly impossible statements such as lifetime warranty. Nothing lasts forever! Our warranty policy is simple; we offer a 1 year warranty on all parts and a 2 year warranty on the compressor. With this warranty you will get NO hassle next business day replacement (if shipping service and inventory permits). However, as a valued customer you will get technical support through the lifetime ownership of your product. Our Heat Pump warranty cover failures that occur during normal operational conditions or manufacture defects. It does not cover failure due to inappropriate operation such as incorrect installation or physical damage.

When making a warranty claim we may require images to verify the claim.
