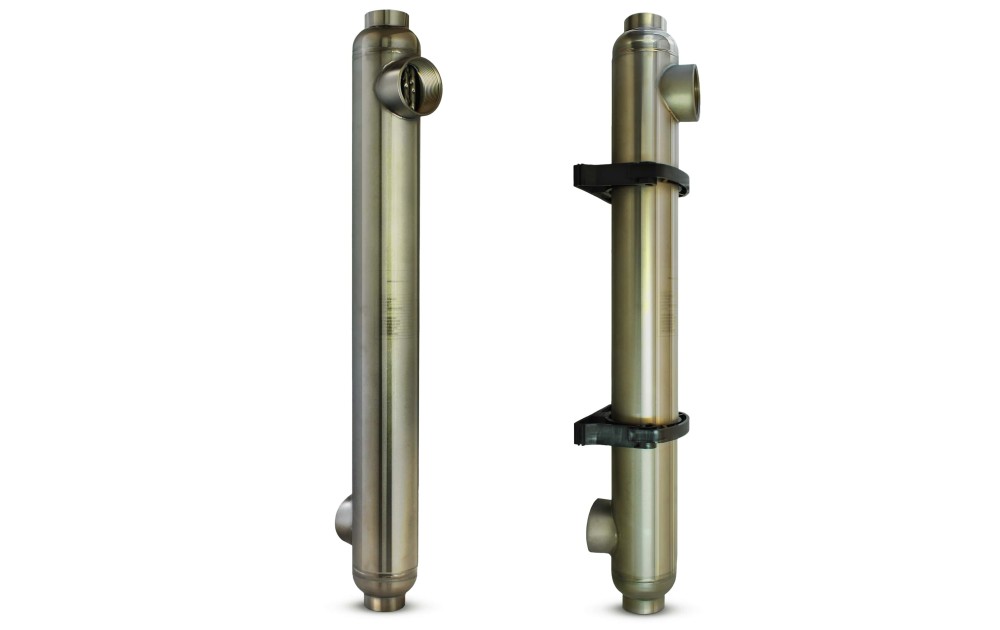

BLUEPOOL ST88T Heat Exchanger -Titanium -300K

$ 1,188.74
SKU: N-387
4 In Stock

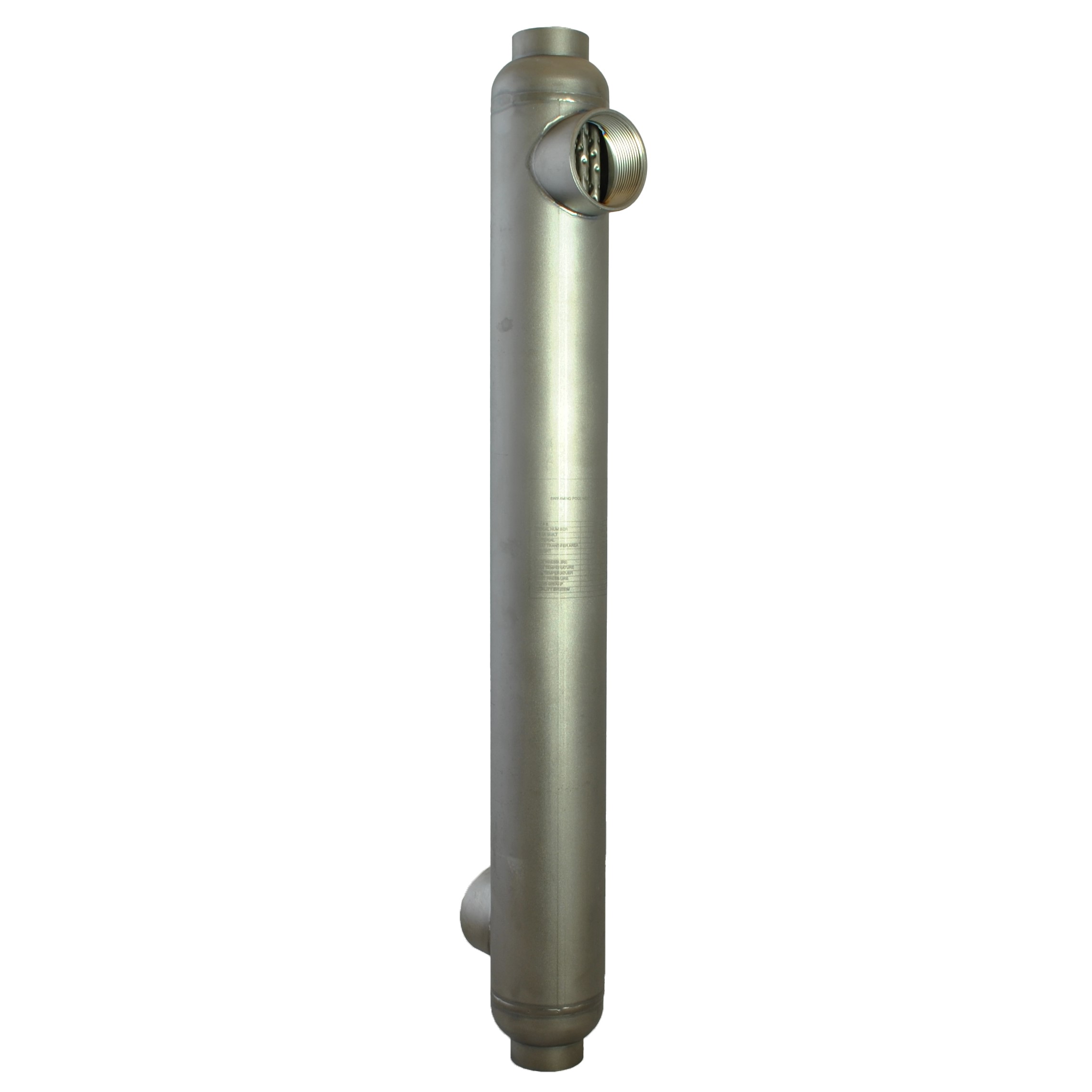

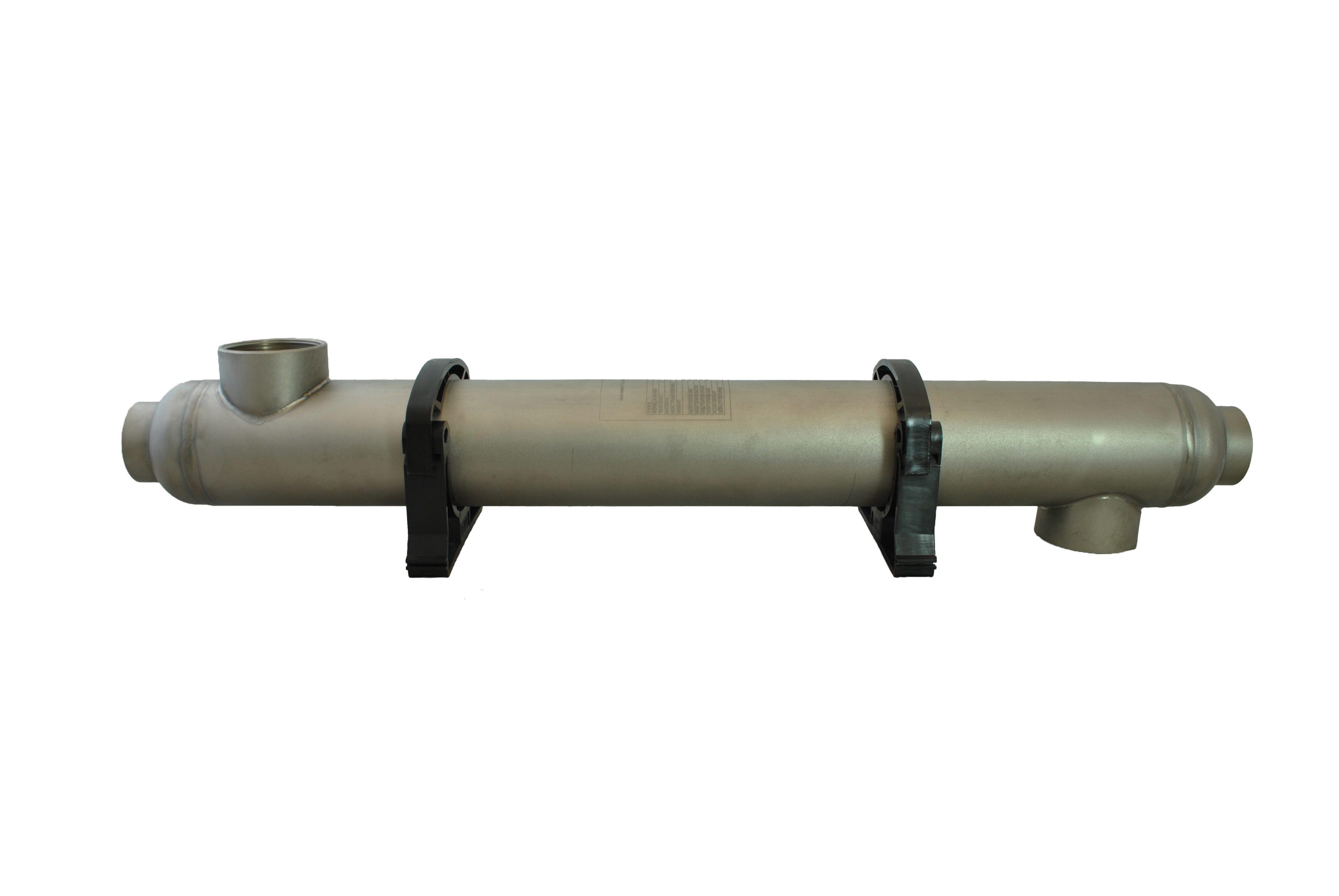

BLUEPOOLST88T Heat Exchanger - Titanium - 300K BTU

Bluepool ST45T heat exchanger
Bluepool ST45T heat exchanger

BLUEPOOL heat exchangers are fully constructed with a pressurized shell and spiral corrugated inner tube. This ensures high velocities inside the unit making BLUEPOOL heat exchangers a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa circuit, besides other applications.

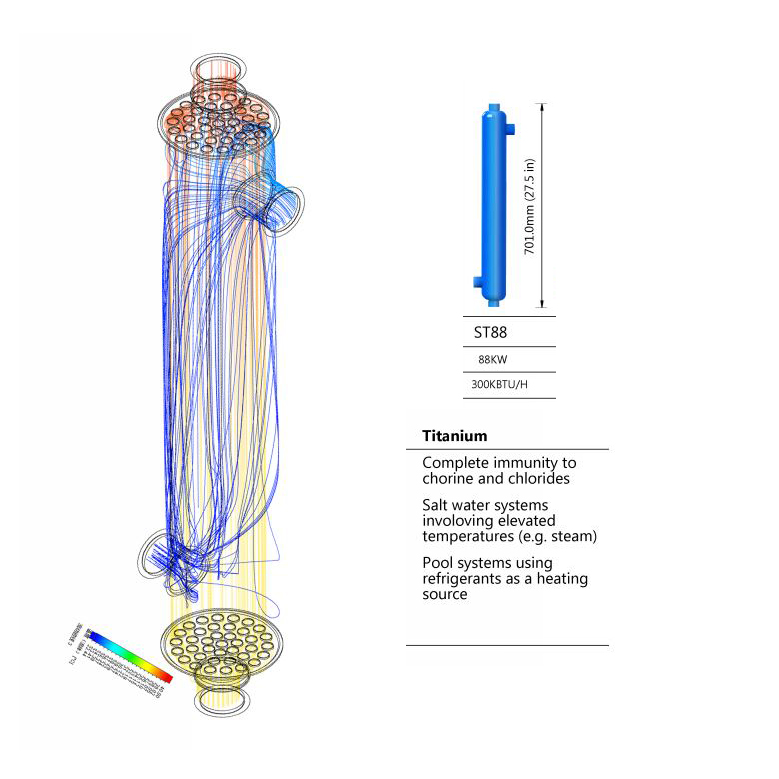

Pool Exchanger Design

Applications:

  • Extremely high salt water concentrations
  • Swimming pools heated by high temperature sources (steam, refrigerants, solar)
  • Corrosive fluids
  • Systems with operating temperatures above 212 F (100C)

Advantages:

  • High efficiency, coefficient up to 10000 w/m2 deg C, Heat exchanging capacity 3-7 times traditional equipment.
  • Compact configuration, occupy small area, one tenth as the traditional equipment.
  • Titanium material, endure high temperature, pressure and minimum corrosion.
  • Helix screw thread elasticity heat exchange bundle, eliminate the stress.
  • Design flux speed is 5.5m/s, less dirt
  • Big flow volume
  • Compactible
  • Easy installation and durable.

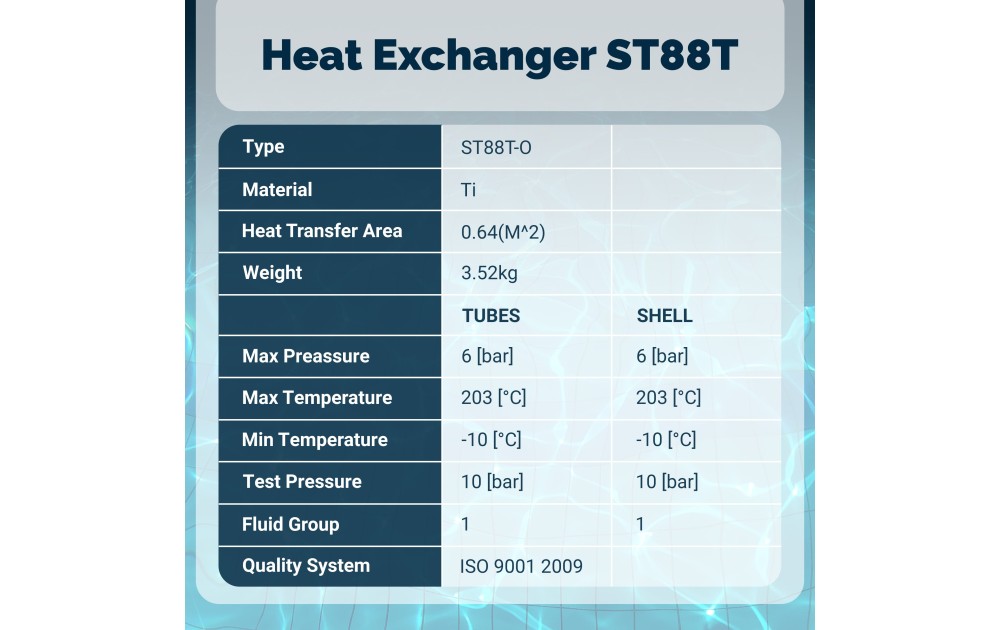

Features:

  • Material: Titanium
  • Design Temperature: 208 C (406 F)
  • Heat transfer area: 0.64 square meters/3.55 square feet
  • Fittings: 2" pool side | 1 1/2" solar/boiler side
  • Normal working capacity: 300,000 BTU/hr (88 Kw/hr)
  • Dimensions: 3" x 27.5"
  • Weight: 11.6 LBS
Bluepool heat exchanger
Bluepool Heat Exchanger
Bluepool heat exchanger flow diagram

Always install the pool & Spa heat exchanger in a counter flow pattern. Pool & spa heat exchangers should be installed downstream of the filtration and pumping equipment.

Operating Specifications for Solar Pool Heat Exchangers

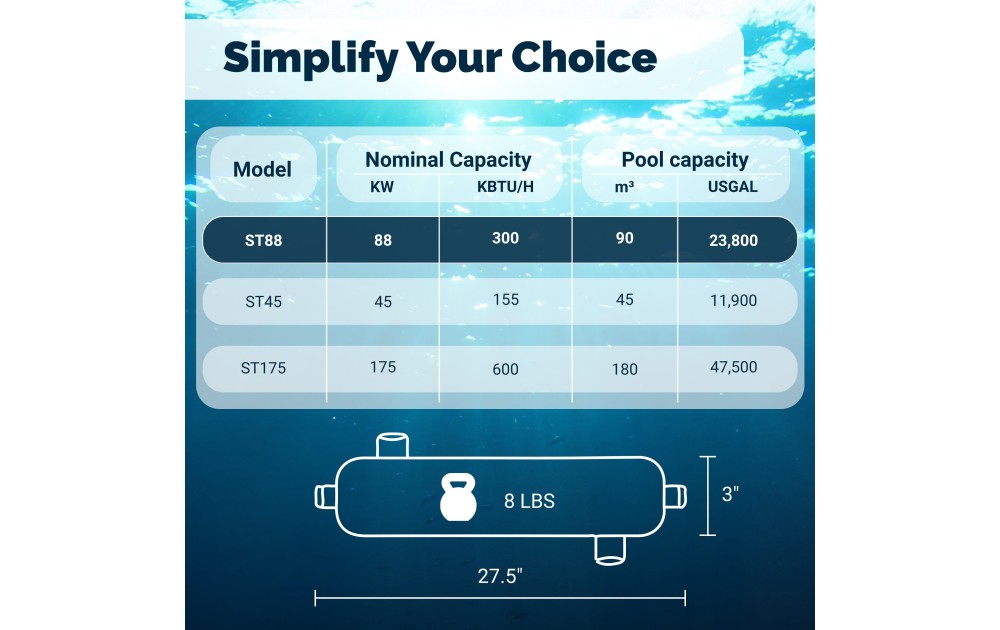

pool heat exchanger sizing chart
  • ST45 is a smaller solar poolheat exchanger that is typically used in conjunction with an existing pool heater and solar. This unit will do a good job of maintaining the water temperatures initially supplied by an auxiliary heat source such as a gas heater. Total Heat exchange surface area is 0.33 M2(3.55 ft2)
  • ST88 is a larger pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source. Sizing the pool collectors is important for proper operation of a solar pool heater. Total Heat exchange surface area is 0.64 M2(6.9 ft2)
  • ST175 is an x-largeor commercial pool heat exchanger that can be used with a larger solar system and other heat sourcesas the primary heat source. Sizing the pool collectors is important for proper operation of a solar pool heater. Total Heat exchange surface area is1.55 M2(16.7ft2)

Add Heat ExchangersinSeriesto Expand System Sizing for Larger Pools

multiple pool heat exchangers for commercial pools
Dimension (L x W x H) 29 x 6 x 6 Inch
Weight 8 Pound
