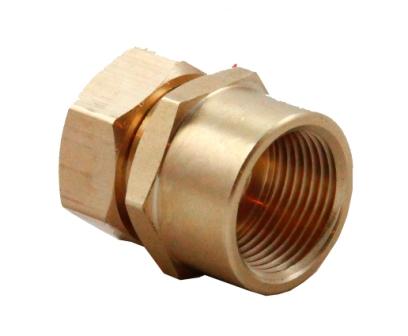

Solar Pipe Fitting -Aurora 3/4" to 1"- FPT Adapter

AURORA FLEX SOLAR 3/4"" TO 1" FPT ADAPTER

DIN 20 TO DIN 25

Aurora Flex to 3/4" to 1" Female Pipe Thread (FPT) adapter

FEATURES

No Soldering- Leak FREE	3/4" 304 Stainless Steel pipes

Installation Procedure

	Step one: Cut the hose to your desired length with cutter
	Step two: Put a fitting onto the solar hose, put one end into flange tool NOTE Flange tool sold seperately
	Step three: Use a hammer to flatten the end of the hose
	Step four: squeeze on the Solar hose stainless steel Circlip on
	Step five: Insert high Temperature gasket
	Step six: Tighten with a crescent wrench until gasket is tightly sealed

High Pressure/ High Temperature Fittings

No.	Item	Material
1	Nut	Brass
2	Metal Hose	SUS304,SUS316L
3	Gasket	350 C High-temperature resistance seal
4	Cir-Clip	Stainless Steel SUS304
