Solar Pipe Fitting - Aurora 3/4" to 3/4" MPT Adapter

AURORAFLEX SOLAR 3/4" TO 3/4" MPT ADAPTER

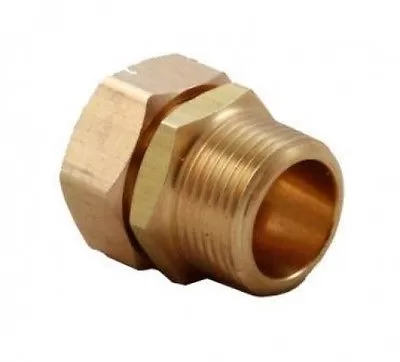

AuroraFlex to 3/4" to 3/4" Male Pipe Thread (MPT) adapter

FEATURES

No Soldering- Leak FREE	3/4" 304 Stainless Steel pipes



Installation Procedure

	Step one: Cut the hose to your desired length with cutter
	Step two: Put a fitting onto the solar hose, put one end into flange tool NOTE Flange tool sold separately
	Step three: Use a hammer to flatten the end of the hose
	Step four: squeeze on the Solar hose stainless steel Circlip on
	Step five: Insert high Temperature gasket
	Step six: Tighten with a crescent wrench until gasket is tightly sealed

High Pressure/ High Temperature Fittings

No. Item Material 1 Nut Brass 2 Metal Hose SUS304,SUS316L 3 Gasket 350C High-temperature resistance seal 4 Cir-Clip Stainless Steel SUS304
