Solar Piping - Aurora Flex 1" Solar Insulated Pipe DIN25

$ 843.89
SKU: N-269
12 In Stock

AURORA FLEX SOLAR 1" STAINLESS STEEL PIPING -DIN25 WITH 3/4" EPM INSULATION

Solar Piping - Aurora Flex 3/4" Solar Insulated Pipe DIN20

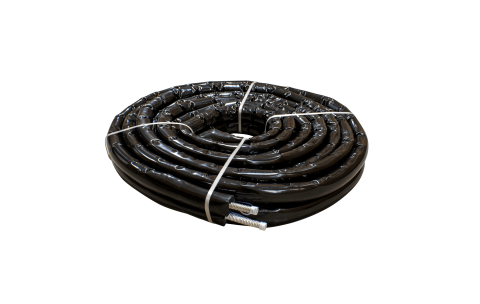

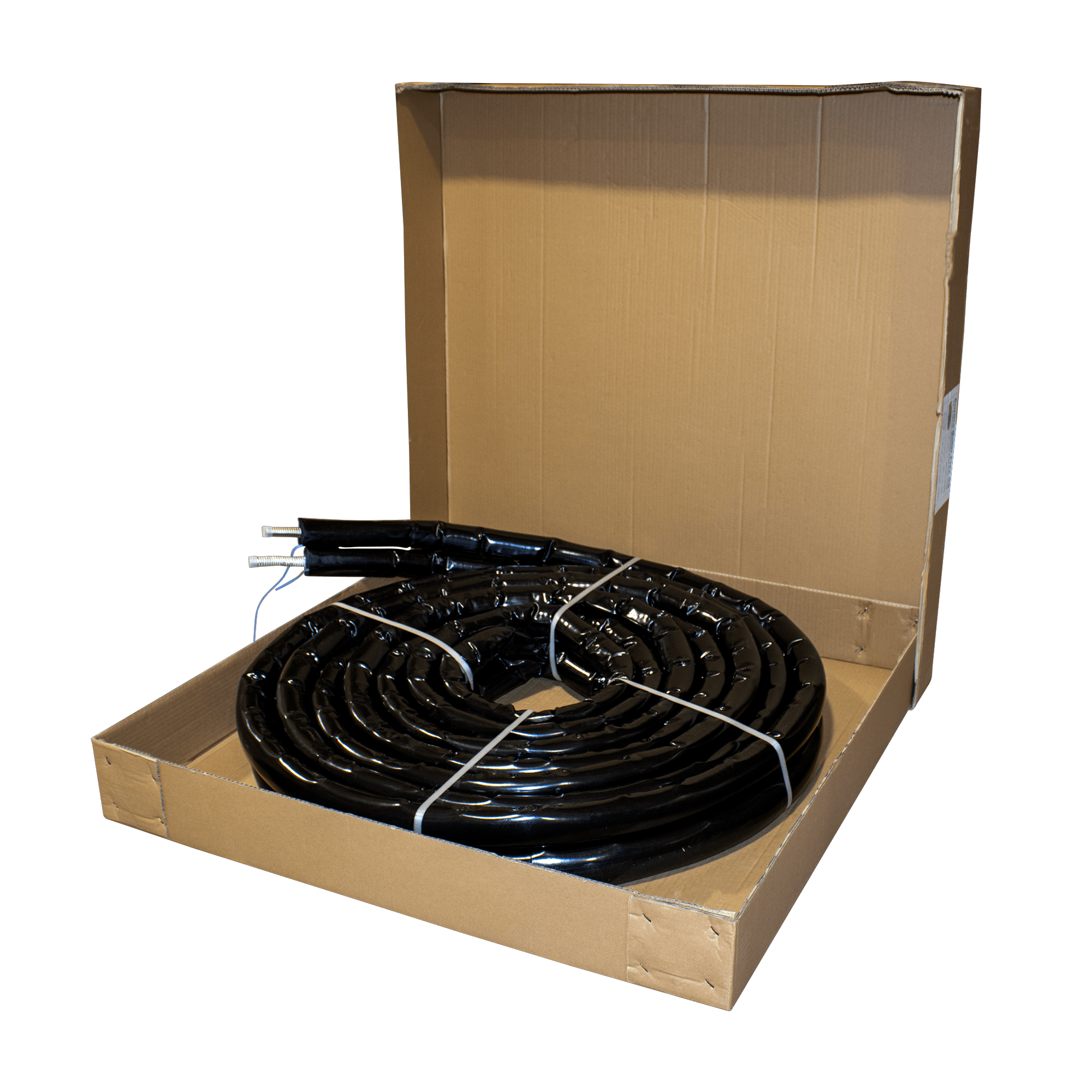

Stainless Steel SUS 304 (1" OD & 3/4" ID) solar piping with high temp 3/4" EPDM insulation and weather proof coating. Includes silicon wire for temperature probe. Guarantees a professional installation in 1/4 the time it would take to do a copper installation. No leaks and no soldering! 100 feet per roll. Each carton contains 1 x 100 ft coil.

FEATURES

stainless steel solar conections duo solar piping

No Soldering- Leak FREE

3/4" 304 Stainless Steel pipes



Installation Procedure

solar pipe fitting tools Step one:
Cut the hose to your desired length with cutter
Use a hammer to flatten the end of the hose Step two:
Put a fitting onto the solar hose, put one end into flange tool NOTE Flange tool sold separately
solar pipe fitting tools Step three:
Use a hammer to flatten the end of the hose
corrugated stainless steel tube flare Step four:
squeeze on the Solar hose stainless steel Circlip on

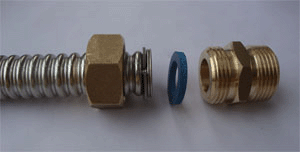

solar pipe fitting tools Step five:
Insert high Temperature gasket

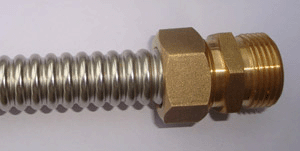

solar pipe fitting tools Step six:
Tighten with a crescent wrench until gasket is tightly sealed

High Pressure/ High Temperature Fittings

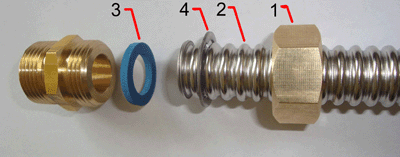

High Pressure/ High Temperature Fittings
No.
Item
Material
1
Nut Brass
2
Metal Hose
SUS304,SUS316L
3

Gasket

350C High-temperature resistance seal
4

Cir-Clip

Stainless Steel SUS304



Technical specifications

Insulation
INSULATION
Material High quality synthetic elastomer (EPDM based) with a complete closed-cell structure.
Temperature range From -50 C to +150 C (up to 175 C operating intermittent.)
Flammability :actual burning behavior DIN 4102-B2 self-extinguishing, no fireball drops, limited fire spreading
Water Vapor permeability u>3000
Thermal Conductivity W/(m.K) R 4.8 (.035 W/mk)
Jacketing
JACKETING
Material UV resistant and high mechanical resistant protective film
UV Resistance Excellent UV and weather resistant properties
Temperature Sensor Wire
TEMPERATURE SENSOR WIRE
Temperature Range from -50 C to +200 C
Flexible Copper 0.75mm2
Wire Insulation Silicon
Rated Voltage 300/500 V
Electric Resistance 23.0 Ohm/km
Dimension (L x W x H) 12 x 12 x 12 Inch
Weight 90 Pound
