Solar Piping - Aurora Flex 3/4" Solar Insulated Pipe DIN20

$ 678.28
SKU: N-257
26 In Stock

AURORA FLEX SOLAR 3/4" STAINLESS STEEL PIPING -DIN20 WITH 3/4" EPM INSULATION

Solar Piping - Aurora Flex 3/4" Solar Insulated Pipe DIN20

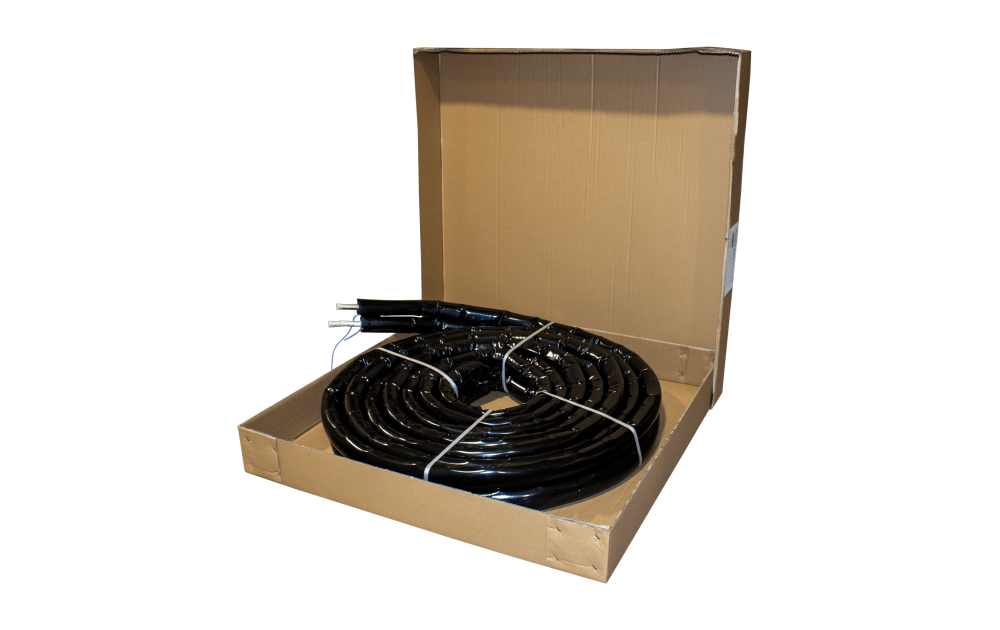

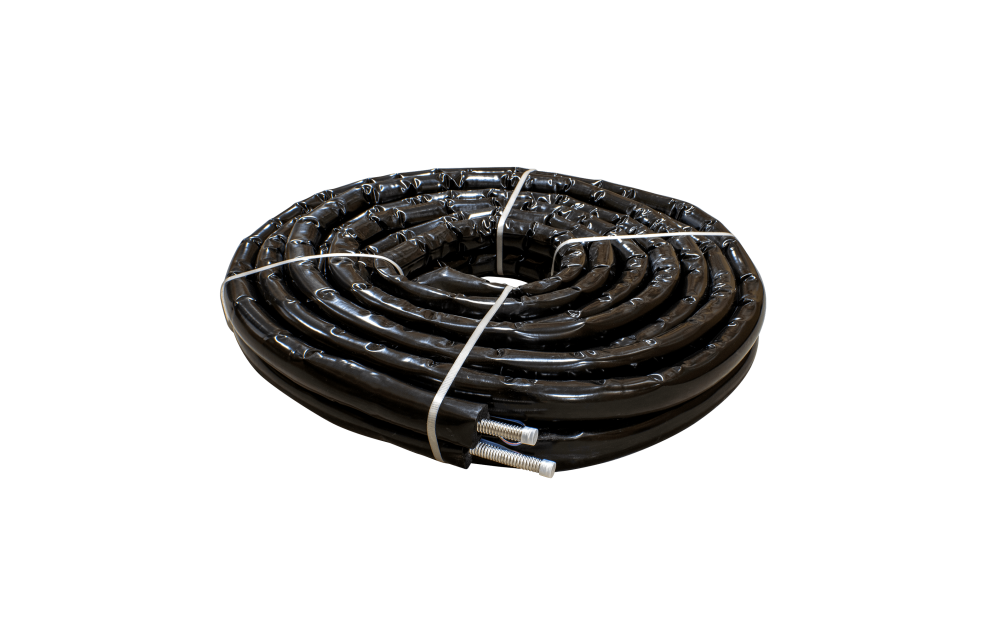

Stainless Steel SUS 304 (3/4" OD & 5/8" ID) solar piping with high temp 3/4" EPDM insulation and weather proof coating. Includes silicon wire for temperature probe. Guarantees a professional installation in 1/4 the time it would take to do a copper installation. No leaks and no soldering! 100 feet per roll. Each carton contains 1 x 100 ft coil.

FEATURES

stainless steel solar conections duo solar piping

No Soldering- Leak FREE

3/4" 304 Stainless Steel pipes



Installation Procedure

Solar Pipe Fitting Flare Tool Step one:
Cut the hose to your desired length with cutter
Aurora Flex stainless steel pipe in tool Step two:
Put a fitting onto the solar hose, put one end into flange tool NOTE Flange tool sold separately
Use a hammer to flatten the end of the hose Step three:
Use a hammer to flatten the end of the hose
corrugated stainless steel tube flare Step four:
squeeze on the Solar hose stainless steel Circlip on
Aurora Flex Stainless Steel Solar Pipe & Fittings Step five:
Insert high Temperature gasket
Aurora Flex Stainless Steel Solar Pipe & Fittings Step six:
Tighten with a crescent wrench until gasket is tightly sealed

High Pressure/ High Temperature Fittings

Aurora Flex stainless steel pipe in tool
No.
Item
Material
1
Nut Brass
2
Metal Hose
SUS304,SUS316L
3

Gasket

350? High-temperature resistance seal
4

Cir-Clip

Stainless Steel SUS304

Technical specifications

Stainless Steel Hydronic & Solar Lines pipe
INSULATION
Material High quality synthetic elastomer (EPDM based) with a complete closed-cell structure.
Temperature range From -50 C to +150 C (up to 175 C operating intermittent.)
Flammability :actual burning behavior DIN 4102-B2 self-extinguishing, no fireball drops, limited fire spreading
Water Vapor permeability u 3000
Thermal Conductivity W/(m.K)

R 4.8 (.035 W/mk)

Solar Piping - Aurora Flex 3/4
JACKETING
Material UV resistant and high mechanical resistant protective film
UV Resistance Excellent UV and weather resistant properties
Temperature Sensor Wire
TEMPERATURE SENSOR WIRE
Temperature Range from -50 C to +200 C
Flexible Copper 0.75mm2
Wire Insulation Silicon
Rated Voltage 300/500 V
Electric Resistance 23.0 Ohm/km
Dimension (L x W x H) 41 x 41 x 6 Inch
Weight 90 Pound
