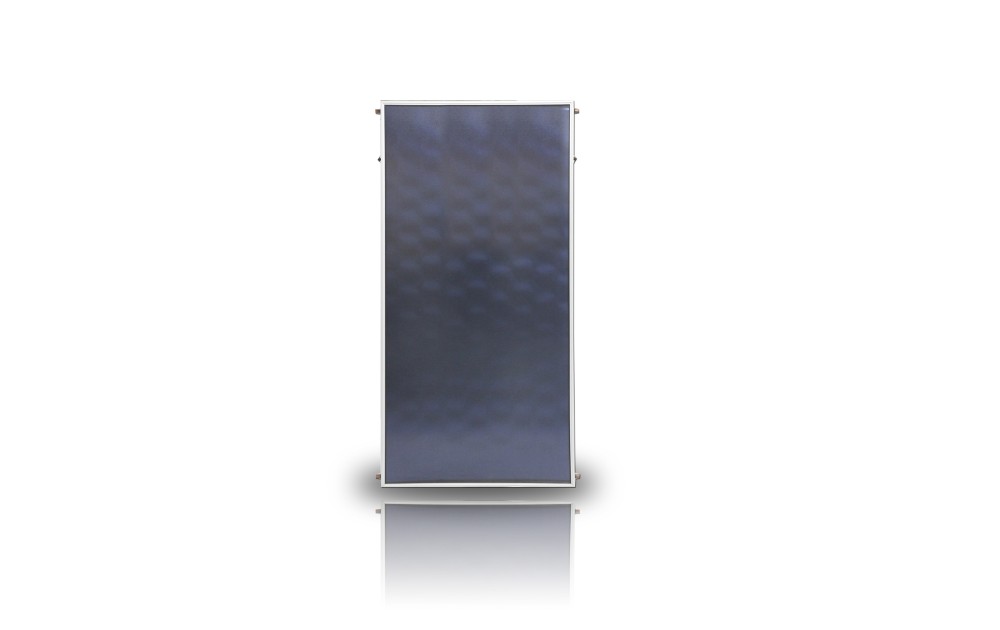

SUNRAIN FLAT PLATE SOLAR COLLECTOR Sunrain FPC1200D
Requires SIN or Tax ID for shipping to USA
Stand Included
"3-Hi"Solar Flat Plate Collector
Worlds #1 Solar Water Heater Manufacture

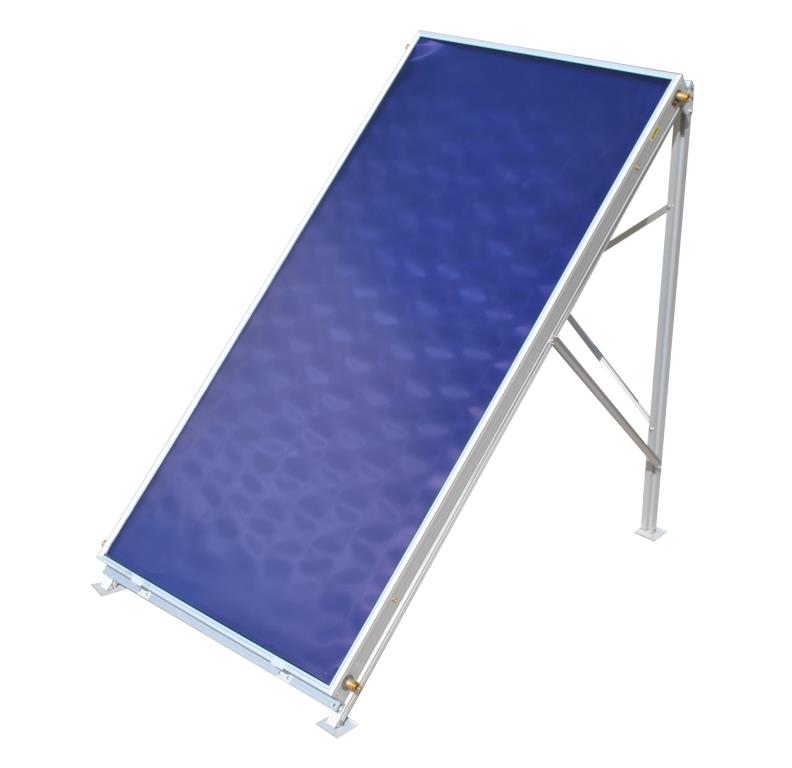

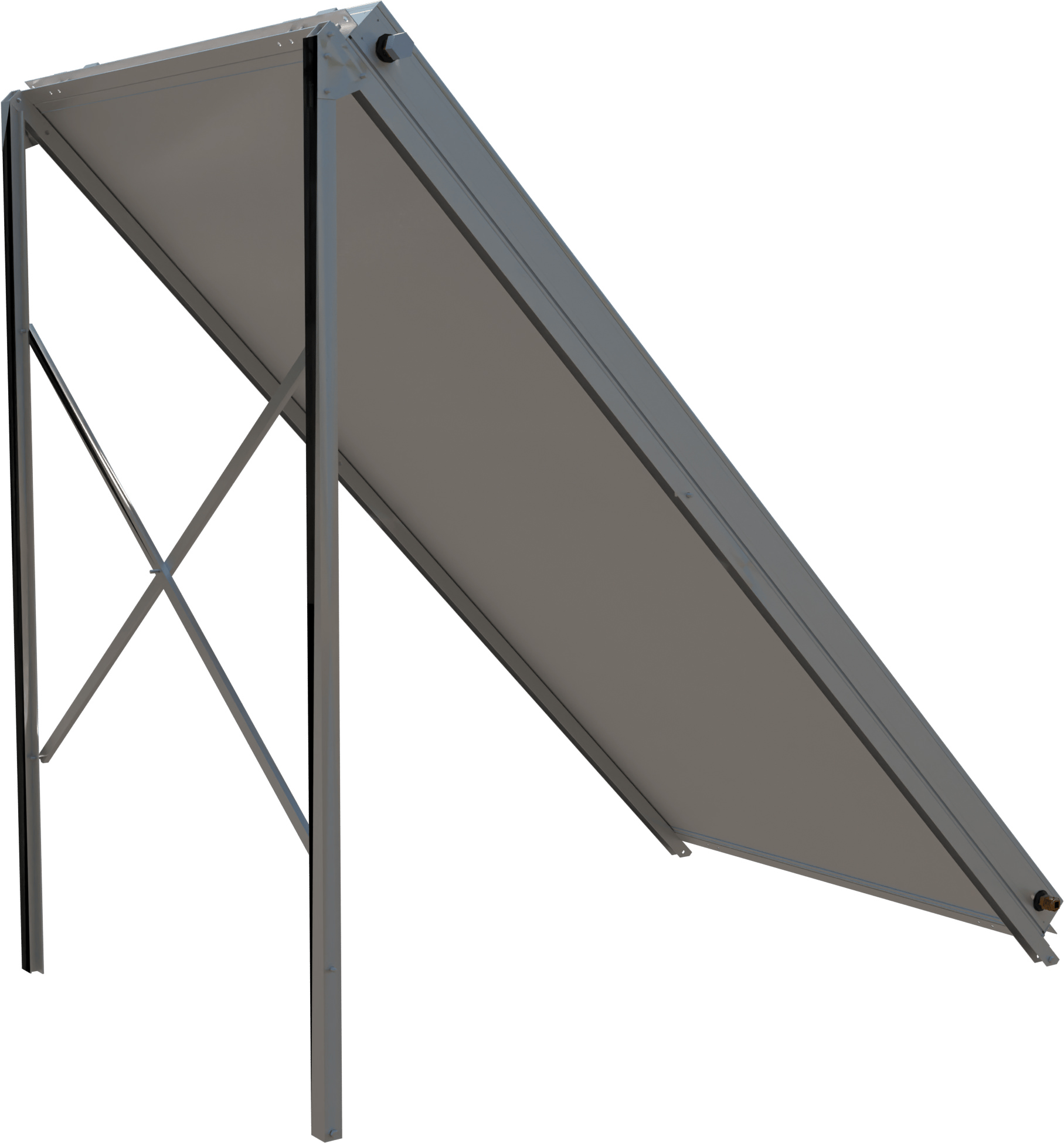

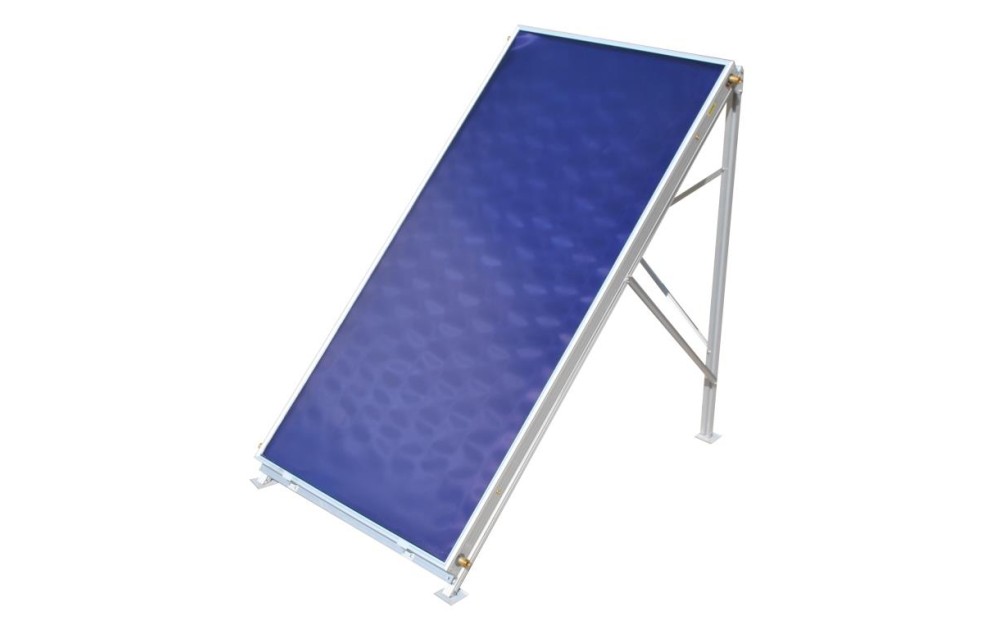

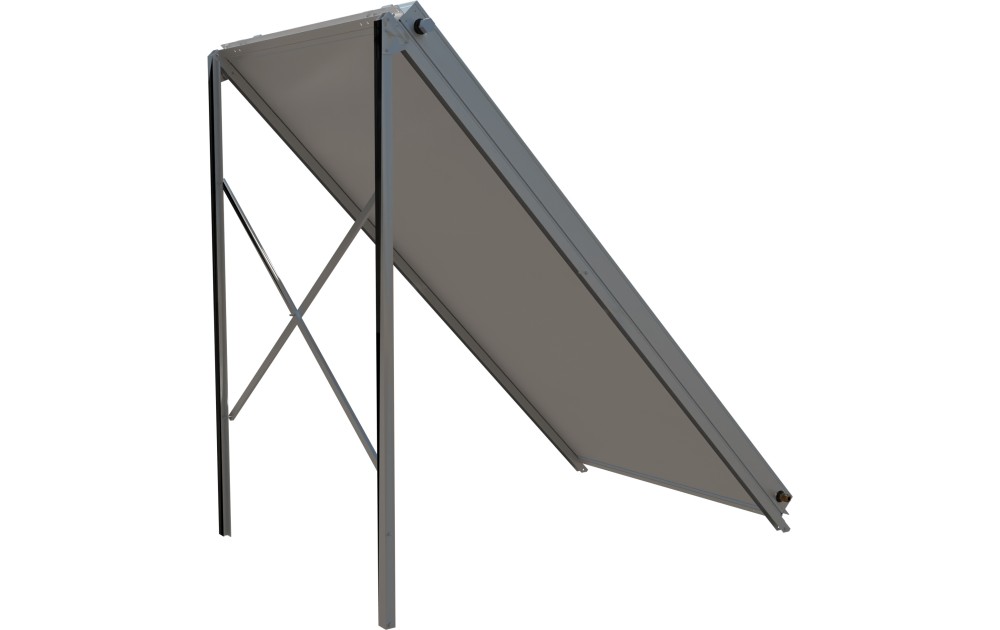

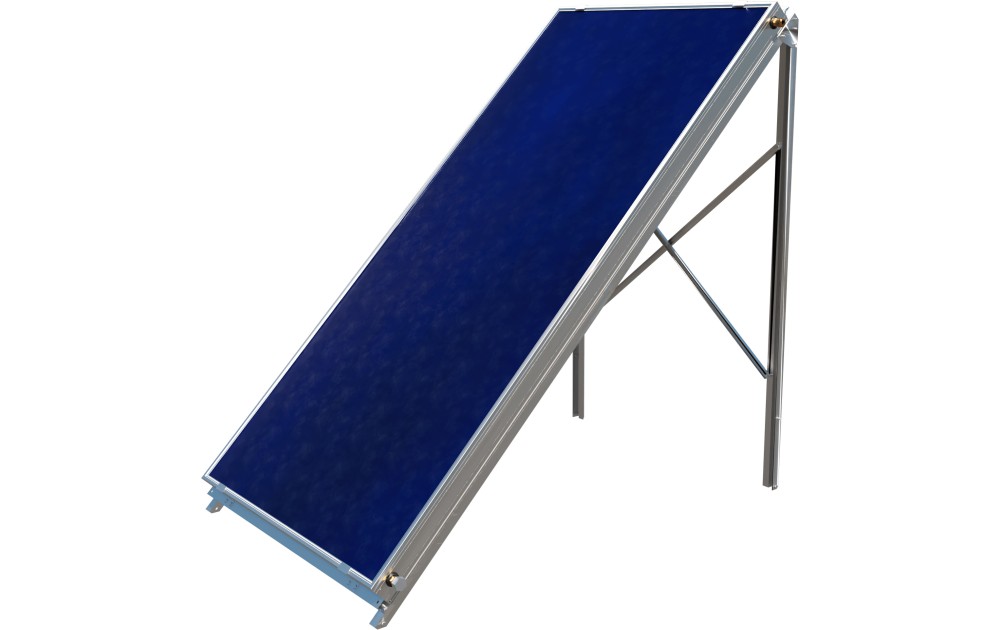

Sunrain FPC1200D - Solar Flat Plat Water Heaters come complete with 45 degree aluminum frame to allow ground mount as well as roof mount options making these very versatile water heaters. The flat plate solar collectors are ideal for southern climates where the high performance winter performance of a solar vacuum tube is not needed. The FPC1200D is ideal for seasonal solar pool heating and solar domestic hot water applications. With SRCC rating these collectors qualify for 30% tax credit in USA.

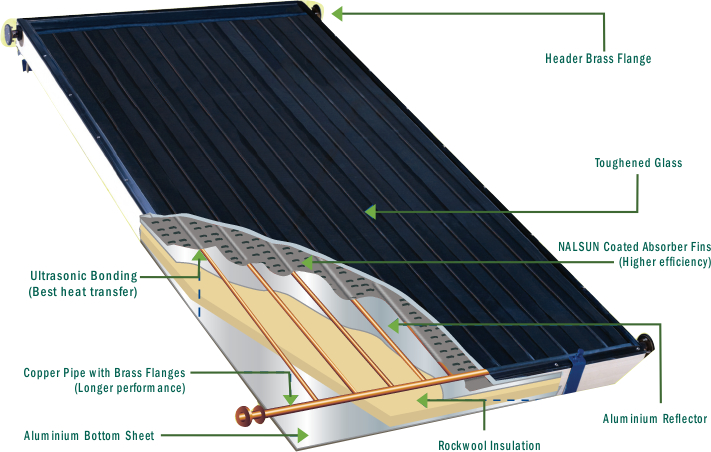

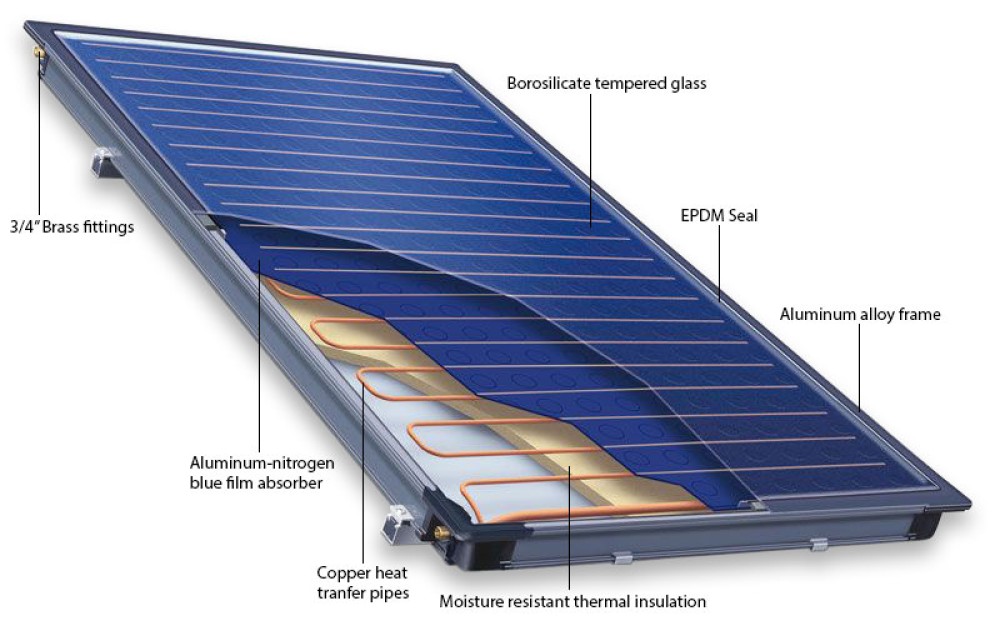

Superior Construction - The low iron solar glass and high R-insulation allow these flat plate collectors to maximize the absorption of the solar radiation. The copper piping connects multiple panels together with 4 x 3/4" copper fittings on both top and bottom. The Aluminum frame is light weight yet ensures no rusting that can occur with metal frames.
High Performance - When investing in solar technology, it is important to ensure the "engine" you select is the most powerful and the longest lasting made. This if why we use SunRain's patented "3-Hi" select coating on the absorber plate. The absorbing coating found on the inner layer determines how efficient the water heater will operate. The method and material of this coating will also define the life expectancy of the vacuum tube.
Most vacuum solar collectors use a reactive sputtering process to coat the inner absorber. Most commonly this coating is made from an aluminum and aluminum-nitrogen coating (Al-N/Al) which is the primary absorbing coating.
SunRain's International patented interference film coating "3 Hi” process use 3 systems to ensure the most effective heat absorption. This included a AL-N/AI layer but also a separate aluminum and copper layer. The added layer conduct heat better and also stabilize the coating allowing for a much longer lifespan of 20 year or greater.
Test Drive one of our solar systems and you will quickly see the difference a powerful "engine" makes. See below for comparison on SunRain performance versus other leading flat plate suppliers.
SunRain Certification for Government Grants
![]() |
![]() |
![]() |
SRCC Certification | CSA Certification | Solarkeymark Certification |
SunRain Flat Plate Collectors are the most cost-effective heaters on the market they offer the best performance at the best price THE BEST VALUE AVAILABLE! SunRain Flat Plate Collectors out-perform all major competitors and are available for hundreds of dollars less.
Based on actual German Keymark Testing and SRCC, here is how the SunRain performs against the leading vacuum tube major competitors:
Manufacturer | Mode | Area ft2 | BTU/Day (SRCC) | BTU/ft2 |
SunRain | Sunrain FPC1200D | 21.5 | 20,650 | 960.5 |
Solar Heart | APA2007 | 22.4 | 17,600 | 785.7 |
Viessmann | 100-FM SV1F | 27.02 | 25,280 | 935.6 |
SunEarth | SB-24-0.75 | 24.65 | 20,690 | 839.35 |
When comparing the BTU/$ values for SunRain Flat Plate Solar Collectors it is clear that SunRain Flat Plate Collectors are the better value hands down.
Supplier | BTU/Day | MSRP$USD | BTU/$ |
SunRain | 20,650 | 475 | 43.47 |
Viessmann | 25,280 | 1045 | 24.19 |
Solar Heart | 17,600 | 875 | 20.11 |
These numbers are clear as day illustrating the tremendous value of the SunRain Solar Collectors compared to the leading national competitors. If you want to make the smart decision and choose the right solar water collector for your home or for your dealership/installation business, SunRain Flat Plate Solar Collectors deliver the performance, quality low price and value you need!
Technical Specs
Specification | Sunrain FPC1200D |
Area | 21.5 ft2 |
Frame & manifold | Aluminum |
Heating type | Glazed Flat Plate |
Length | 79" |
Width | 39.5" |
Height | 3.5" |
Glass Thickness | 2 mm |
Water Capacity | .45 Gallons |
Weight | 84 Lbs |
Max BTU/HR | 4785/hr |
Pressure | 116 psi |
Glass MaVacuumterial | Borosilicate glass |
fitting | 3/4" copper |
Frame | 45 o Included |
Warranty | 5 years |

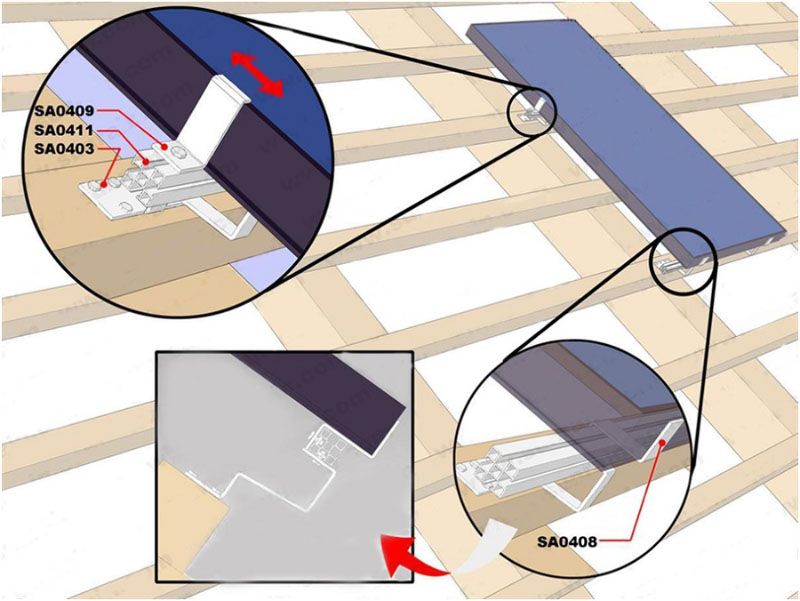

Sunrain FPC1200D - Optional Roof Mount Kit (not included)
Dimension (L x W x H) | 80 x 40 x 4 Inch |
Weight | 200 Pound |
