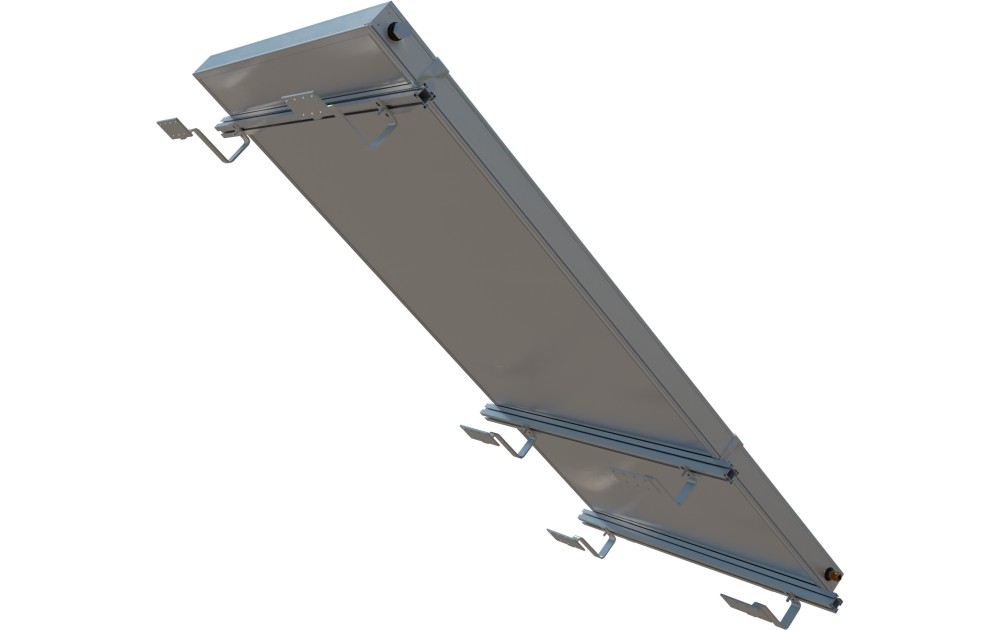

SunRain Solar Flat Plate Collector with Roof Mounting Stand - SRCC solar water heater

US$ 776.00
SKU: N-478
4 In Stock

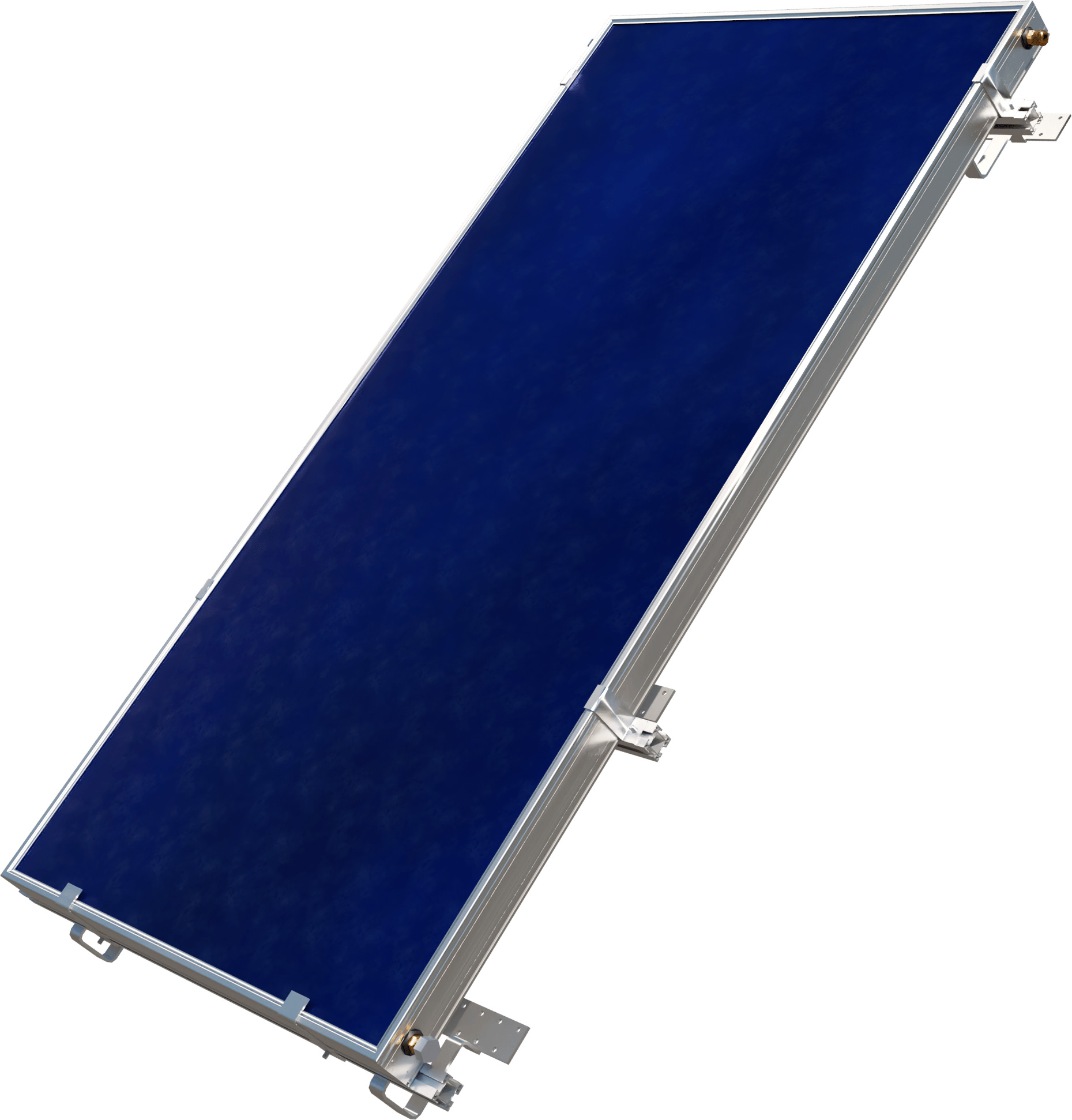

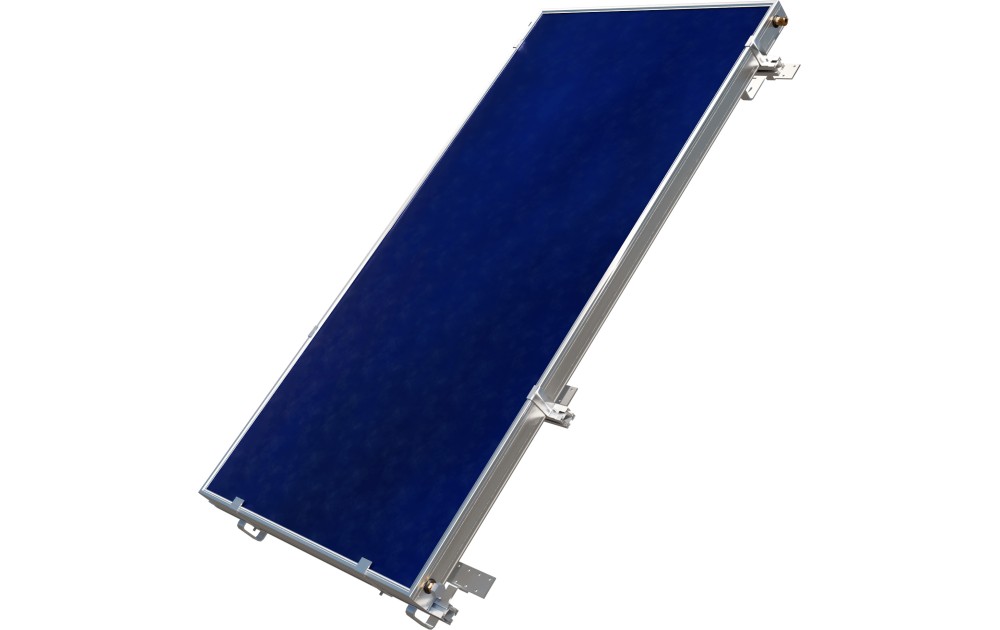

SunRain Flat Plate Solar Collector with Roof Mounting Stand

Sunrain FPC1200D

Requires SIN or Tax ID for shipping to USA

Solar Flat Plate Collector

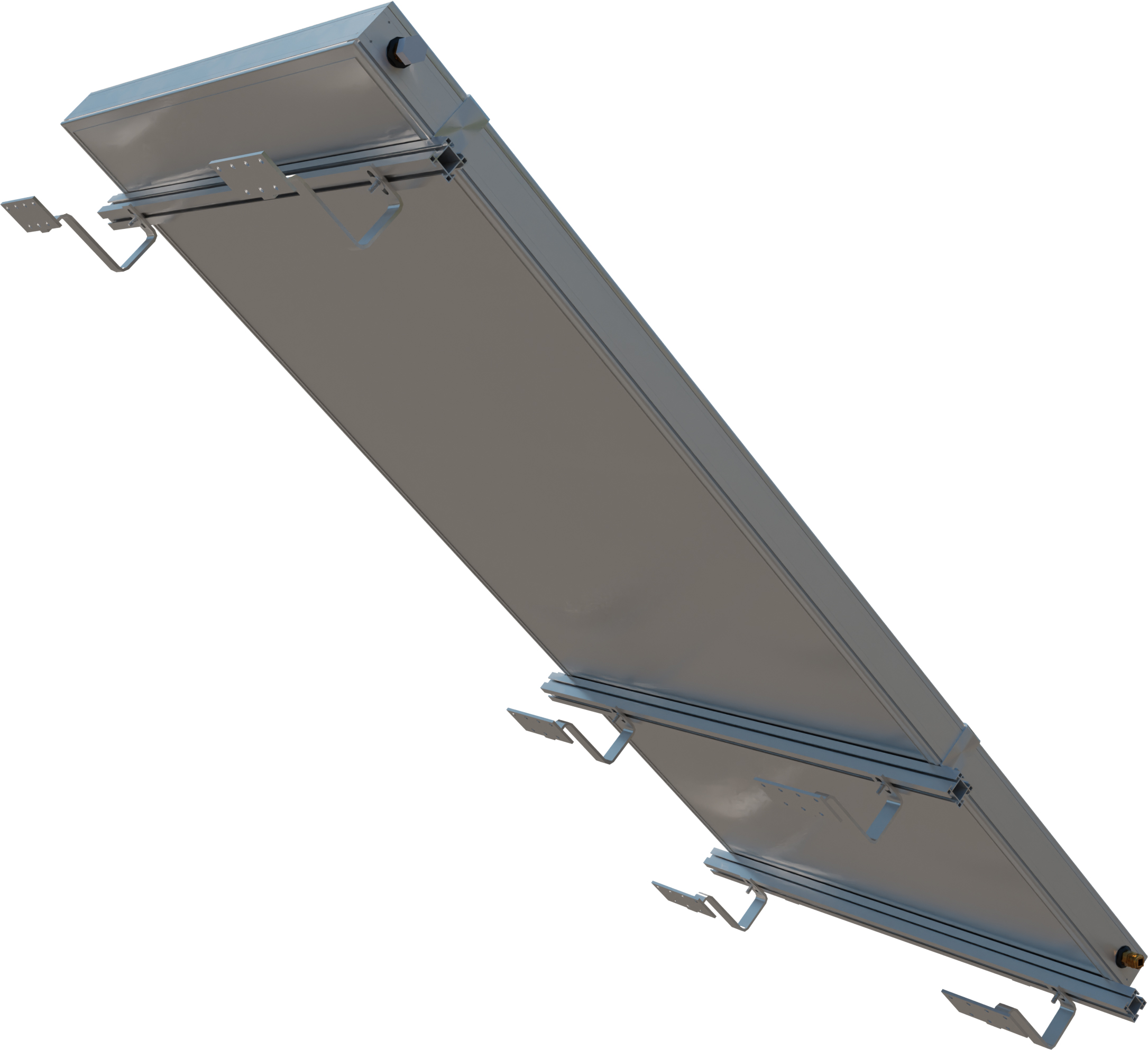

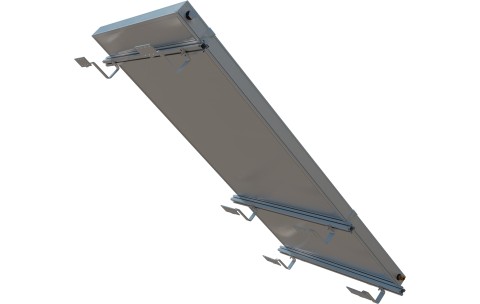

Roof Brackets Included

Solar Flat Plate Collector

FPC1200D - Solar Flat Plat Water Heaters come complete with 45 degree aluminum frame to allow ground mount as well as roof mount options making these very versatile water heaters. The flat plate solar collectors are ideal for southern climates where the high performance winter performance of a solar vacuum tube is not needed. The FPC1200D is ideal for seasonal solar pool heating and solar domestic hot water applications.

Superior Construction - The low iron solar glass and high R-insulation allow these flat plate collectors to maximize the absorption of the solar radiation. The copper piping connects multiple panels together with 4 x 3/4" copper fittings on both top and bottom. The Aluminum frame is light weight yet ensures no rusting that can occur with metal frames.

High Performance - When investing in solar technology, it is important to ensure the "engine" you select is the most powerful and the longest lasting made. This if why we use SunRain's patented "3-Hi" select coating on the absorber plate. The absorbing coating found on the inner layer determines how efficient the water heater will operate. The method and material of this coating will also define the life expectancy of the vacuum tube.

Most vacuum solar collectors use a reactive sputtering process to coat the inner absorber. Most commonly this coating is made from an aluminum and aluminum-nitrogen coating (Al-N/Al) which is the primary absorbing coating.

SunRain's International patented interference film coating "3 Hi” process use 3 systems to ensure the most effective heat absorption. This included a AL-N/AI layer but also a separate aluminum and copper layer. The added layer conduct heat better and also stabilize the coating allowing for a much longer lifespan of 20 year or greater.

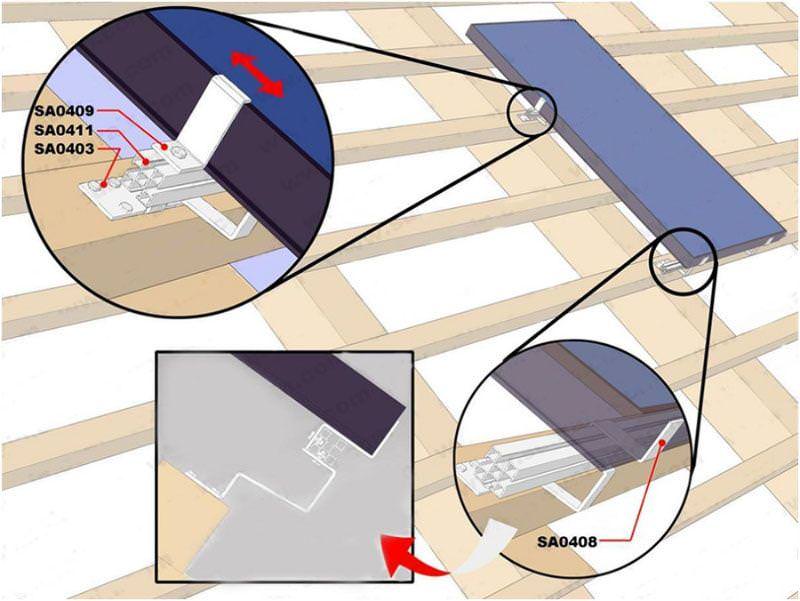

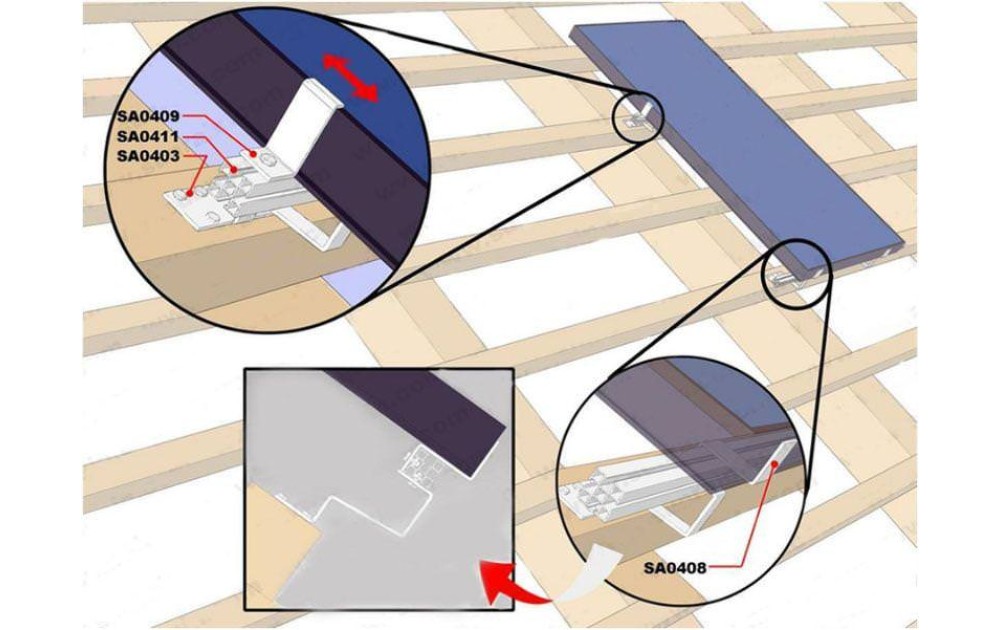

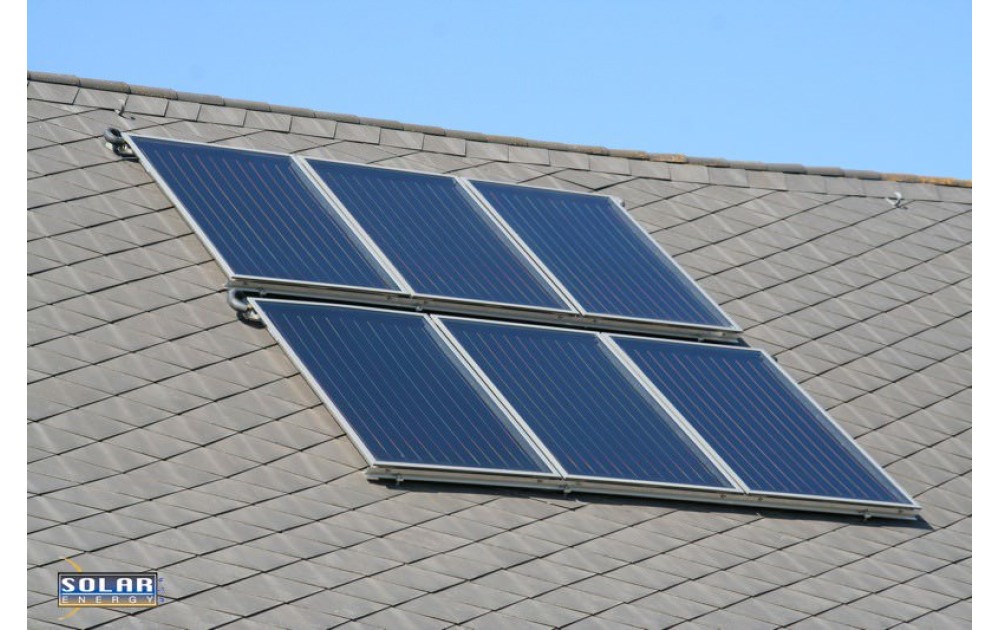

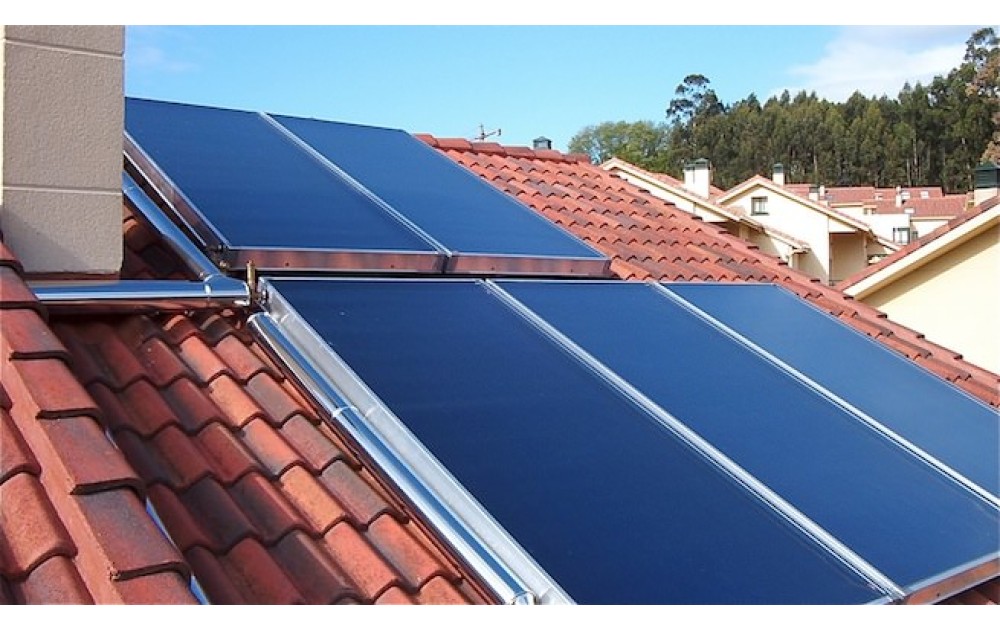

Roof Installation

Technical Specs

Specification Sunrain FPC1200D
Area 21.5 ft2
Frame & manifold Aluminum
Heating type Glazed Flat Plate
Length 79"
Width 39.5"
Height 3.5"
Glass Thickness 2 mm
Water Capacity .45 Gallons
Weight 84 Lbs
Max BTU/HR 4785/hr
Pressure 116 psi
Glass MaVacuumterial Borosilicate glass
fitting 3/4" copper
Frame 45 o Included
Warranty 5 years

Sunrain FPC1200D - With Roof Mounting Hardware (Ground Mounting Stand also available)

SunRain Certification for Government Grants

SRCC Certification

SunRain SRCC

CSA Certification

Sunrain CSA certification

Solarkeymark Certification

SunRain Solarkeymark certification
Dimension (L x W x H) 80 x 40 x 4 Inch
Weight 200 Pound
