Ultra Thin Hydronic Fan Coil - Heating & Cooling - Water Radiator -040V

SKU: N-353
C$ 1,133
22 In Stock

PHNIX ULTRA THIN WATER FAN COILS FOR HYDRONIC HEATING AND COOLING

Model 040V-A3

Requires SIN or Tax ID for shipping to USA

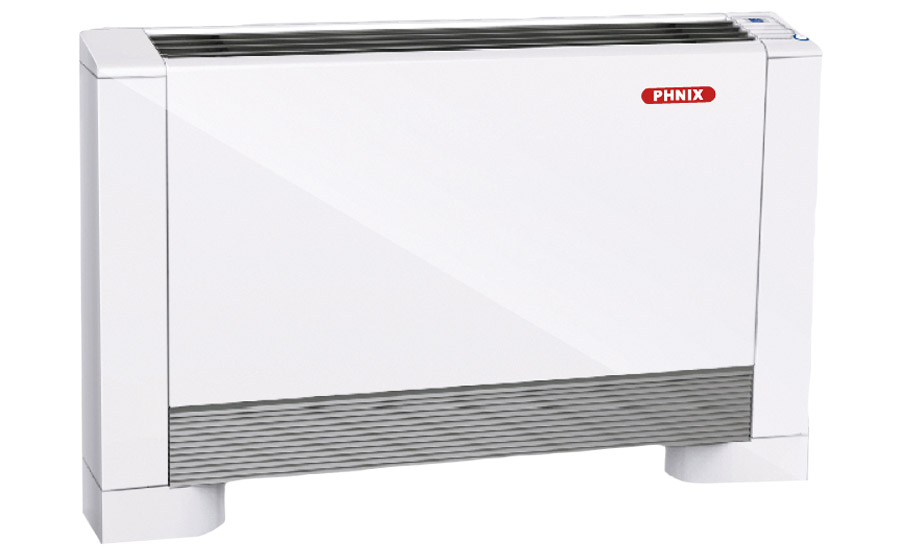

Phnix fan coil

Modern Hydronic Heating and Cooling with Fan Coils is a much more energy efficient way of heating and cooling. Compared with traditional radiators you can save over 30% in energy consumption. Combine that with a high energy efficient Hydronic Heat Pump such as an Arctic Heat Pump, and the savings are tremendous. Modern day hydronic heating means using lower design water temperatures to capture the energy savings. The 040V is capable of heating with supply water temperatures as low as 110 F.

Ultra Sleek and modern design allow these fan coils to be placed nearly anywhere and unlike older radiators the ultra quiet fan mixes the room air providing a much more even heat distribution. Built in condensate drain allows for summer cooling and dehumidifying. Touch button control with automatic fan speed selection and auto heat cool allow you to easily manage the comfort of any room.

How does it work - When a heating or cooling call is needed the Fan Coil will send a dry contact signal back to a pump relay to activate the hydronic pump. The pump will either supply hot water in the winter to the fan coil or cold chilled water in the summer. When using multiple fan coils it is recommend to run them in parallel using a manifold and to use a variable speed constant pressure pump such as the Grundfos Alpha2.

Phnix Ultra Thin Fan Coils

  • Supper quiet under 25 Db
  • Ultra Thin FAn Coil Casing only 130 mm (5.12") wide
  • High Efficiency with integrated fan you can save 30% compared with other radiators
  • Easy Installation - Wall mount, floor mount or ceiling mount
  • Smart Control with built in thermostat - Remote controller included
  • Cooling and Heating in one unit - Ideal for Air to Water Heat Pumps
  • Individual Room Zoning provides superior comfort over central air.

Multiple Units Require Zone Valving Actuators

Ivar 24V actuator

IVAR Actuator - 24V - 4 Wire Telestat Switch

SPECIFICATIONS

Model

PFP-025V

PFP-040V

PFP-060V

PFP-080V

PFP-100V

Heating Capacity* (Btu/h) 3,600 6,900 9,200 11,800 14,300
Heating Capacity** (Btu/h) 4,600 8,500 11,400 14,600 17,800
Heating Capacity*** (Btu/h) 6,680 10,500 15,300 19,720 25,500
Cooling Capacity* (Btu/h) 3,400 6,500 8,500 12,000 14,800
Power Supply (V/Ph/Hz) 110 - 120 V / 1 Ph / 60Hz
Air Volume (CFM) 94 188 270 341 383
Max. Noise (dBA) 30 32 37 39 41
Net Dimensions (H x W x D) (in) 26 x 28 x 5 26 x 35 x 5 26 x 43 x 5 26 x 51 x 5 26 x 59 x 5
Shipping Dimensions (H x W x D) (inches) 29 x 29 x 7 29 x 37 x 7 29 x 45 x 7 29 x 53 x 7 29 x 61 x 7

*Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 113°F/ -
**Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 122°F/ -
***Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 140°F/ -
*Cooling: Ambient temp. (DB) 80°F/67°F, Water temp. (In/Out): 45°F/55°F

1 years manufacturer's warranty.

fan coil mounting options energy saving fan coils

fan coil dimensions



TYPICAL FAN COIL INSTALLATION DESIGN USING BUFFER TANK

fan coil installation

Dimension (L x W x H) 48 x 48 x 30 Inch
Weight 142 Pound
