Pool Heat Pump Specifications

Arctic Heat Pumps

DC INVERTER Air to Water Swimming Pool
Heat Pump

 Model (Metal Spraying Shell)  ARCTIC 015ZA/B 25ZA/B 040ZA/B 060ZA/B
 Power Supply V/PH/Hz 220/1/50 (60) 220/1/50 (60) 220/1/50 (60) 220/1/50 (60)
Heating Capacity
Ranger
kW 1.3~5.2 2.75~11 4.38~17.5 6.45~25.8
BTU/h 4436~17742 9383~37532 14928~59710 22007~88030
COP Ranger W/W 3.6~13 3.6~13 3.6~13 3.6~13
Heating Capacity (1) kW 5.2 11.0 17.5 25.8
BTU/h 17742 37532 59710 88030
COP (1)  A:30/W:28 W/W 6.2 6.2 6.2 6.2
Input Power (1) kW 0.84 1.77 2.82 4.16
Input Current (1) A 3.8 8.1 12.8 18.9
Heating Capacity (2) kW 5.2 11.0 17.5 25.8
BTU/h 17742 37532 59710 88030
COP (2)  A:24/W:28 W/W 5.60 5.60 5.60 5.60
Input Power (2) kW 0.93 1.96 3.13 4.61
Input Current (2) A 4.2 8.9 14.2 20.9
Heating Capacity (3) kW 5.2 11.0 17.5 25.8
BTU/h 17742 37532 59710 88030
COP (3)  A:15/W:28 W/W 4.8 4.8 4.8 4.8
Input Power (3)  kW 1.08 2.29 3.65 5.38
Input Current (3) A 4.9 10.4 16.6 24.4
Heating Capacity (4) kW 4.8 10.0 16.7 23.5
BTU/h 16378 34120 56980 80182
COP (4)  A:7/W:28 W/W 4.2 4.2 4.2 4.2
Input Power (4) kW 1.14 2.38 3.98 5.60
Input Current (4) A 5.2 10.8 18.1 25.4
Heating Capacity (5) kW 4.3 9.2 14.4 21.0
BTU/h 14672 31390 49133 71652
COP (5)  A:0/W:28 W/W 3.72 3.72 3.72 3.72
Input Power (5) kW 1.16 2.47 3.87 5.65
Input Current (5) A 5.3 11.2 17.6 25.7
Heating Capacity (6) kW 3.6 7.5 12.0 18.0
BTU/h 12283 25590 40944 61416
COP (6)  A:-7/W:28 W/W 3.16 3.16 3.16 3.16
Input Power (6) kW 1.14 2.37 3.80 5.70
Input Current (6) A 5.2 10.8 17.3 25.9
 Compressor   Rotary TWIN Rotary TWIN Rotary TWIN Rotary
 Compressor Qty   1 1 1 1
 Fan Qty   1 1 1 1
 Noise dB(A) 48 52 54 54
 Water Outlet/Water Inlet inch 1–1/2" 1–1/2" 1–1/2" 1–1/2"
 Water Flow Volume GPM 6.78 11.3 17.2 27.1
 Water Pressure Drop PSI 1.7 2.2 2.2 2.3
 Fan Direction   horizontal horizontal horizontal horizontal
 Refrigerant Type   R410A R410A R410A R410A
 Unit Net Dimensions (L/W/H) mm 930/360/550 1115/470/700 1115/470/945 1195/470/1285
 Unit Shipping Dimensions (L/W/H) mm 1035/395/585 1205/525/725 1205/525/975 1285/525/1315
 Net Weight kg 55 90 108 121
 Shipping Weight kg 58 96 116 131

Note:

  1. ①Heating:Outdoor air temp:30℃/24℃,Outlet water temp:28℃,Input water temp:26℃;
  2. ②Heating:Outdoor air temp:24℃/19℃,Outlet water temp:28℃,Input water temp:26℃;
  3. ③Heating:Outdoor air temp:15℃/12℃,Outlet water temp:28℃,Input water temp:26℃;
  4. ④Heating:Outdoor air temp:7℃/6℃,Outlet water temp:28℃,Input water temp:26℃;
  5. ⑤Heating:Outdoor air temp:0℃/-℃,Outlet water temp:28℃,Input water temp:26℃;
  6. ⑥Heating:Outdoor air temp:-7℃/-℃,Outlet water temp:28℃,Input water temp:26℃;

Performance Tables for Inverter Pool Heat Pump

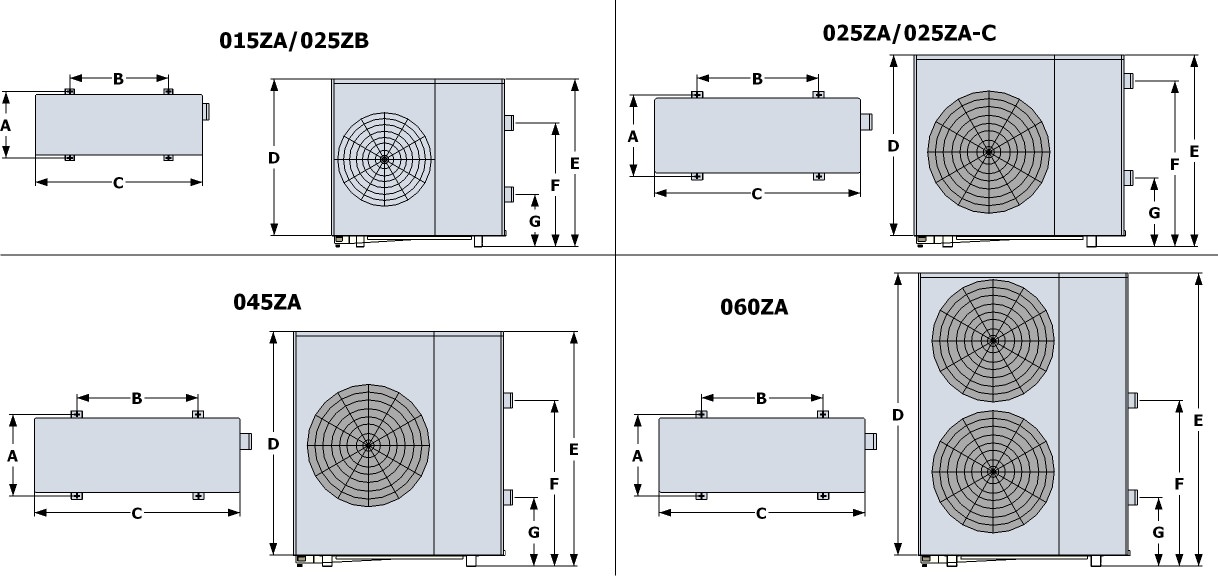

Dimensions of Arctic MALCRW***ZA/B Heat Pumps

A

B

C

D

E

F

G

015ZA/B

360mm
14.2in

680mm
26.771in

930mm
36.6in

520mm
20.5in

550mm
21.7in

352mm
13.9in

112mm
4.4in

025ZA/B

470mm
18.5in

758.5mm
29.875in

1115mm
43.9in

665mm
26.2in

690mm
27.2in

486mm
19.1in

106mm
4.2in

040ZA/B

470mm
18.5in

758.5mm
29.875in

1115mm
43.9in

915mm
36in

940mm
37in

545mm
21.5in

100mm
3.9in

060ZA/B

470mm
18.5in

758.5mm
29.875in

1165mm
45.9in

1220mm
48in

1285mm
50.6in

661mm
26in

132mm
5.2in

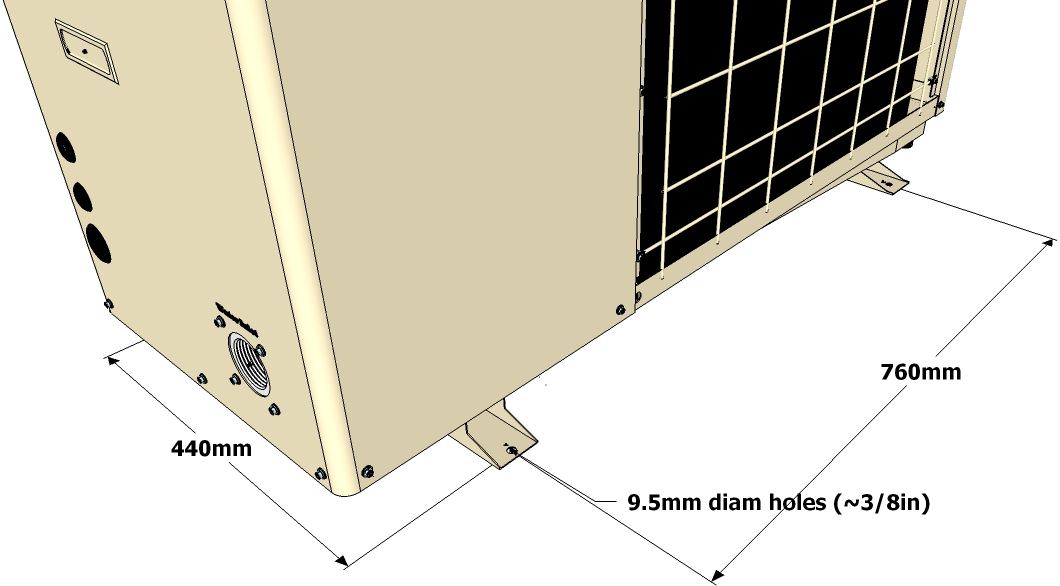

Feet Hole Separation (025ZA -060ZA)
