Technical Specifications:
Thermax Solar Pool Heater

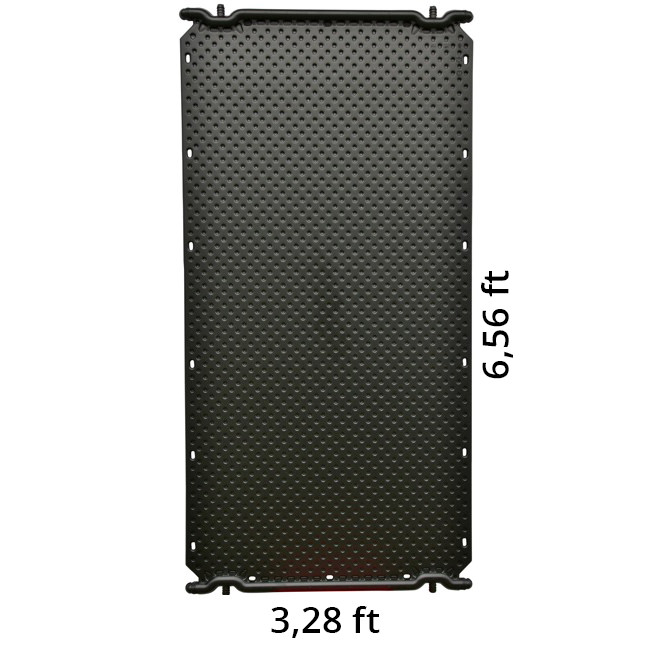

OKU® - Max - absorber:

Information per max absorber

Information per m²

Low pressure loss:

0.005 bar at 400 liters per hour

0.003 bar at 200 l/h/m²

Flow rate:

300 - 500 liters per hour

150 - 250 liters per hour

Weight:

approx. 11.6 kg - water content 11.6 liters

approx. 5.8 kg - water content 5.8 liters

Test pressure:

4.5 bar at normal temperature

4.5 bar at normal temperature

Operating pressure:

up to 1.2 bar at 40 °C

up to 1.2 bar at 40 °C

Burst pressure:

> 12 bar, resistant to negative pressure

> 12 bar, resistant to negative pressure

Efficiency:

up to approx. 85% - performance up to 1.2 kW/h

up to approx. 85% - performance up to 0.85 kWh/m²

Ø Calculated value:

1.0 - 1.2 kW/h corresponds to 8 - 10 kW per day

0.5 - 0.6 kW/h/m² corresponds to 4 - 5 kW per day

Idle proof:

Temperature resistant from -50°C to +115°C

Temperature resistant from -50°C to +115°C

POWER OUTPUT PER COLLECTOR UNIT

Power Output Per Collector Unit

MAX performance 1390 Watts (4,742 BTU)


Features

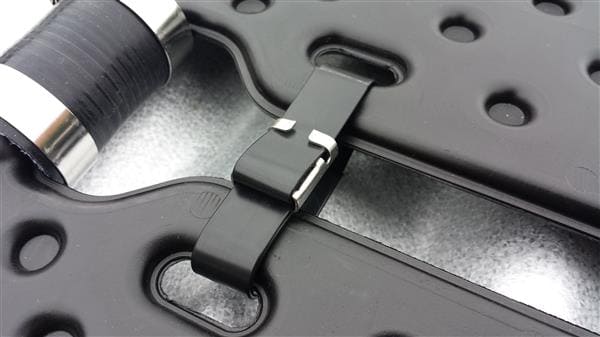

Silicone connections with Stainless Steel Clamps

Silicone connections with Stainless Steel Clamps

Fast Installation

Fast Installation

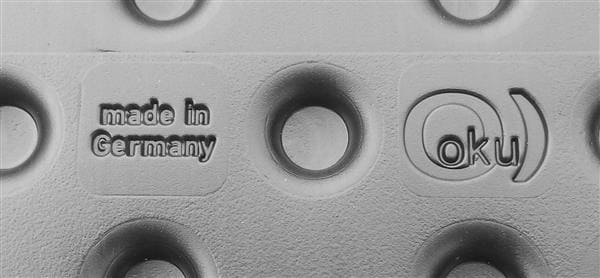

Made in Germany not China!

Made in Germany not China!
