Requires SIN or Tax ID for shipping to USA

Dissipation Loop - Pools

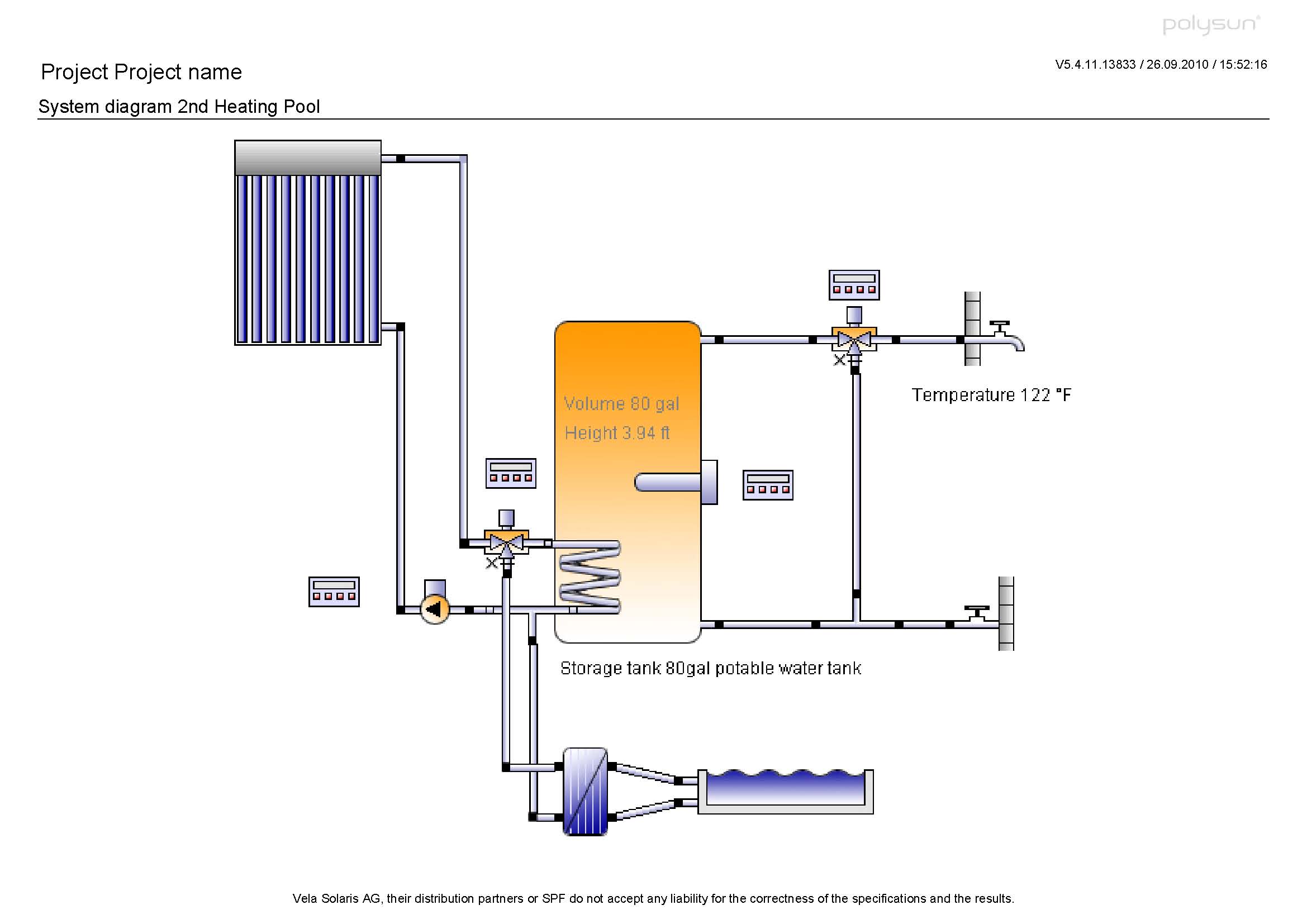

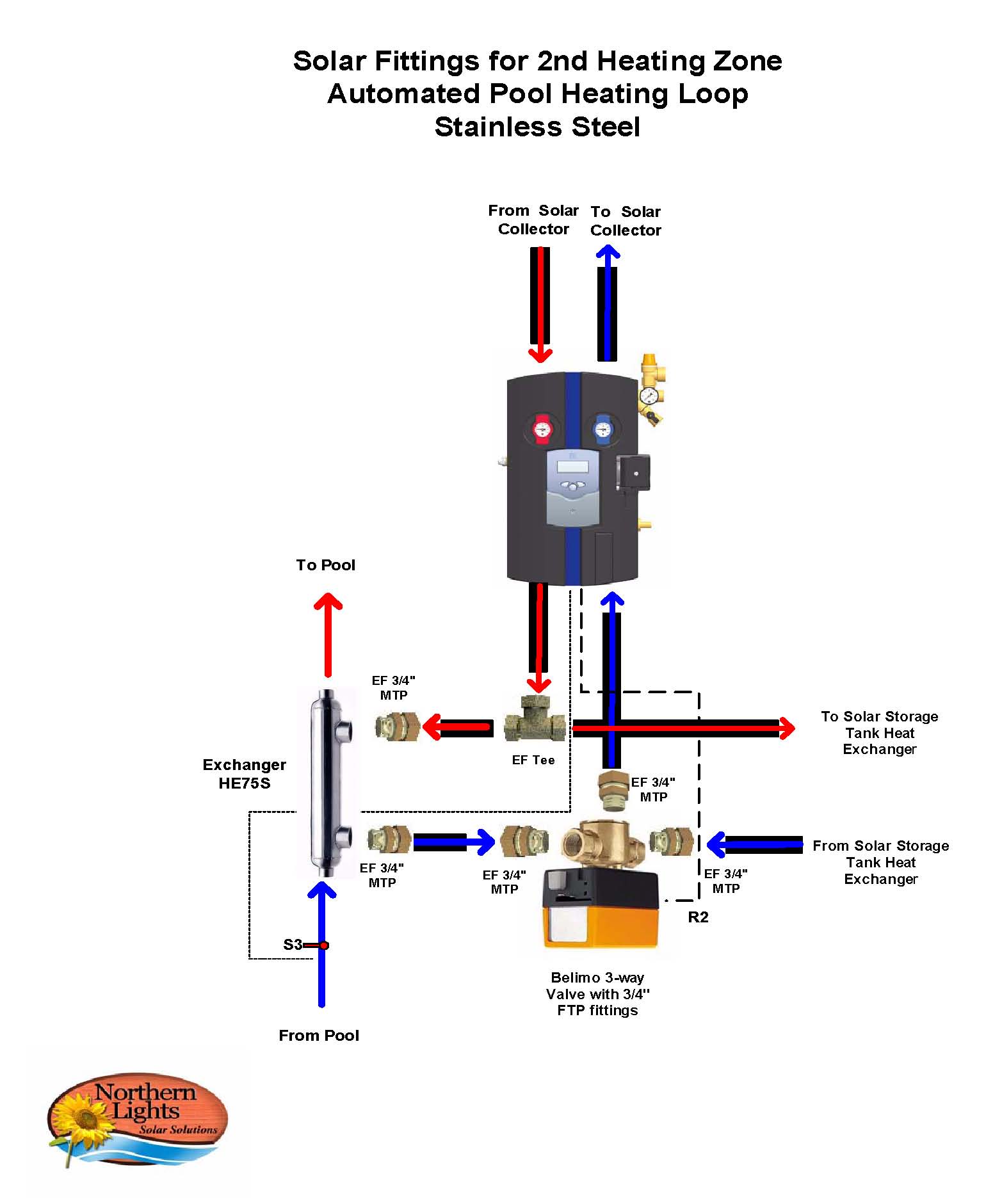

Divert excess heat from solar water heating system into your pool with this quick Plug n' Save optional dissipation loop. The dissipation loop quickly plugs into a automatic 3 way diverter valve that regulates both the pool temperature and the domestic hot water. Pool water is circulated to a high flow stainless steel heat exchanger located on return side of you pool filter system. 2nd relay controls the temperature differences to circulate hot water to the pool when main solar hot water tank is fully charged. DeltaSol BS/plus zone controller controls both the solar heating loop and the dissipation heating loop. NOTE: For Salt Water Pools a titanium heat exchanger is required (add $600)

Stainless Steel Heat Exchanger 2" pool side

3/4" Heat Exchanger Side

Includes:

• Belimo 3-way automatic actuator valve (3/4" 120 VAC)
• 300,000 BTU Stainless Steel Pool Heat Exchanger
• 100 feet of Aurora Flex 3/4" piping (3/4" OD 5/8" ID)
• All fittings
