INSTALLATION OF FLAT PLATE SOLAR COLLECTORS

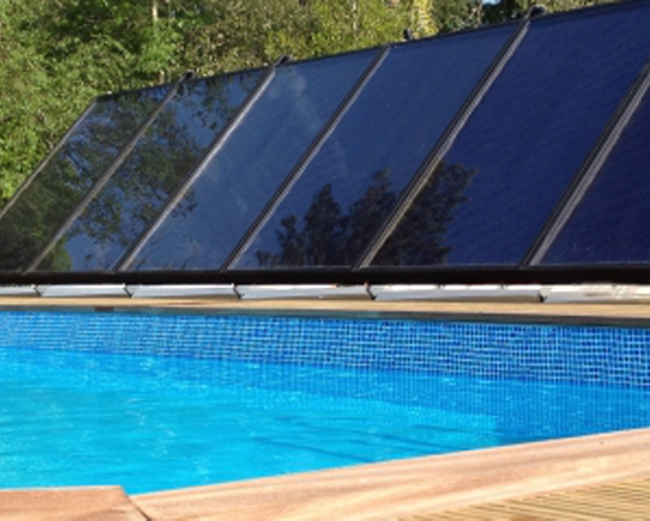

Our THERMAX Extreme solar pool heating kits are designed for either roof mount or ground mount.

When mounting panels, it is important to make sure they are in the best orientation to capture the southern sun which is as close to southern facing as possible (azimuth). Ensure minimum shading through the day to maximize their performance. The Angle of inclination can optimize the pool heating production. Generally, the rule of thumb for solar pool heaters is that they should be mounted at the same angle as the summer equinox (longest day of the year). Click here for more information on solar mounting angles.

Multiple collectors should be installed in series but should not exceed 4. For larger size system we recommend you connect them in parallel. 2 parallel rows of 4 collectors will perform better than one row of 8 in series. When connecting the panels, it is very important to use the technique called reverse return. This insure the pressure drop and flows will be equal across each panel. An automatic solar air vent is included with our water heating kits and will ensure the air is properly removed. This should be installed at the highest point on your solar water heating system.

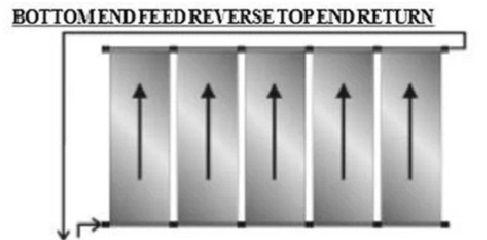

CORRECT:

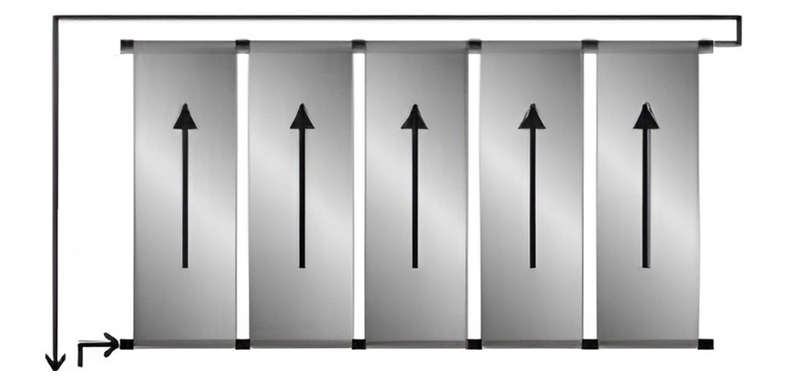

BOTTOM END FEED
REVERSE TOP END RETURN

All collectors will get equal flow and produce the maximum energy.

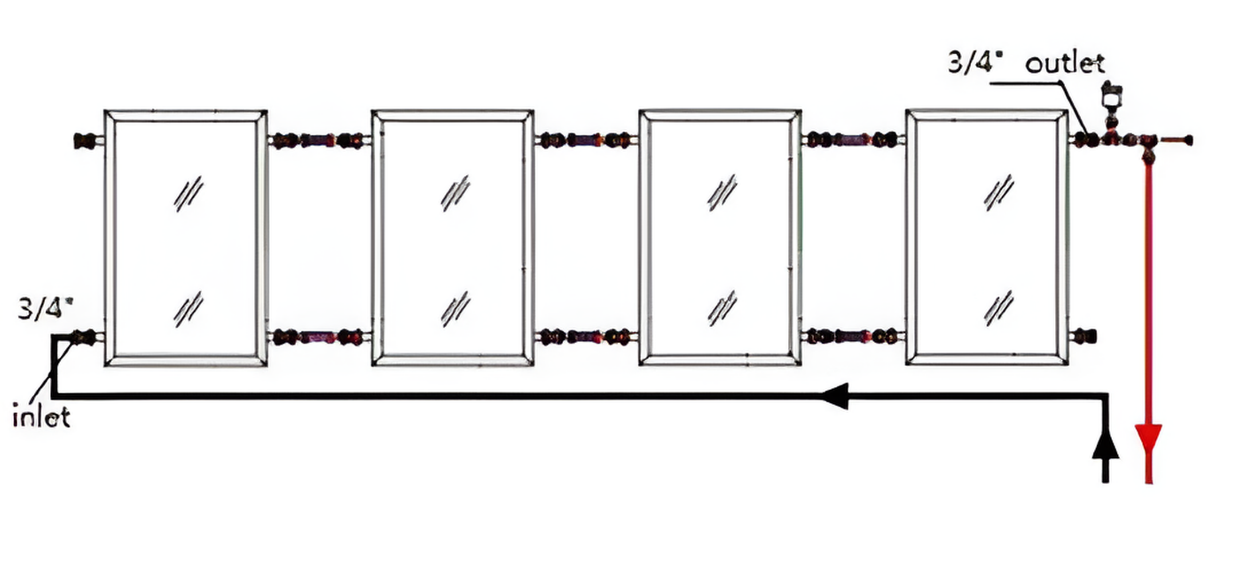

Reverse return
4 collectors in series

Reveres return with 4 collectors in series

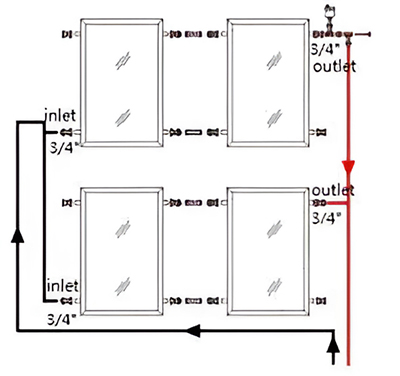

Reverse return
4 collectors in parallel
with 2 per series

Reverse return with 4 collectors in parallel with 2 per series

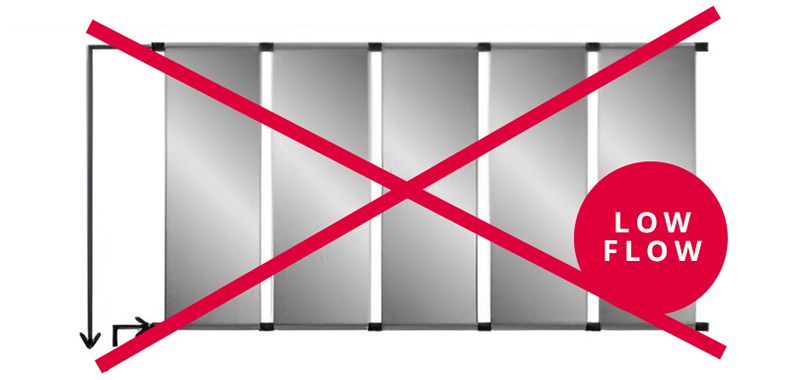

INCORRECT:

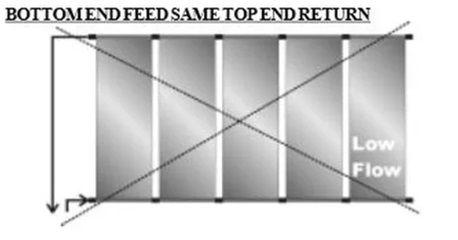

BOTTOM END FEED
SAME TOP END RETURN

Collectors on left will get more flow that the ones on the right.

Reverse return
4 collectors in series

Reveres return with 4 collectors in series

Reverse return
4 collectors in parallel
with 2 per series

Reverse return with 4 collectors in parallel with 2 per series

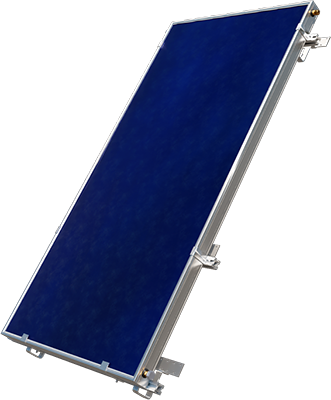

Roof Mounting Kit

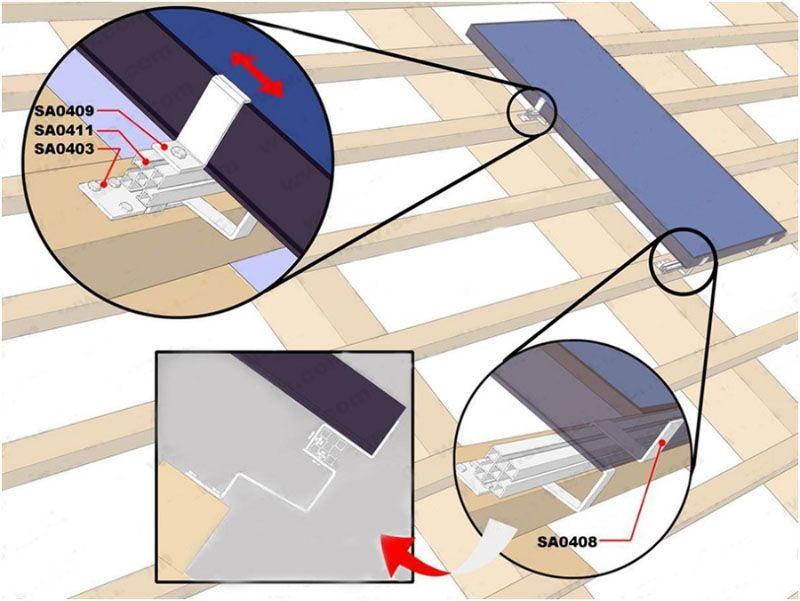

ROOF MOUNTING KIT

The THERMAX Extreme roof mount kit is designed to mount parallel to the roof but sits 3-4” off the roof to avoid damage directly to the roof, making changing the roof shingles possible. The roof mount includes X & Y axis mounting brackets that allow you to move the feet into any direction such that you can hit a truss and securely fasten the feet. You can slide the feet right or left and up and down. This ensures a fast and secure installation.

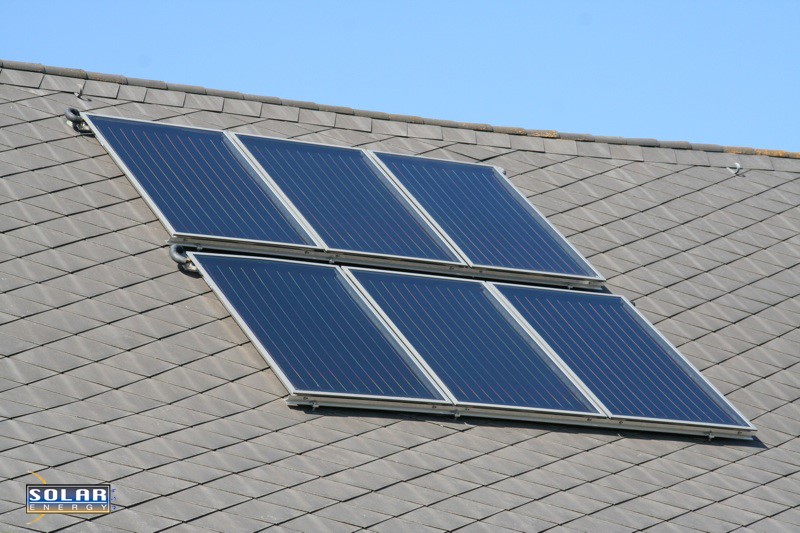

Roof Mounting Kit
Roof Mount

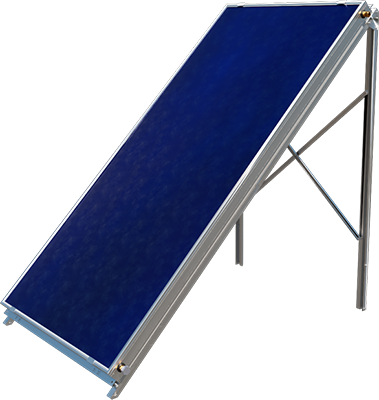

Ground Mounter Solar Heater

GROUND MOUNT STANDS

Ground mount installation involve no roof work and can be placed in any optional location with out restrictions to the direction of the existing roof. Plates on the feet allow the collectors to be secured to concrete blocks to avoid damage by heavy winds. The ground mount comes standard at 45 degrees. Ground mount collectors can also be easily cleaned with out having to go up on a roof.

Ground Mount Stands
