SOLAR SPACE HEATING

Solar Hydronic Heating with Hydronic In floor Heat
or Radiator - Solar Space Heating

The popularity of Solar Home Heating or Solar Space Heating has shown the largest growth in the solar water heating market primarily due to the extreme high efficiencies and higher operating temperatures that are possible with vacuum tubes. Solar Evacuated Tubes perform in low light conditions and temperatures reaching -35 degree. Solar Home Heating is popular in Northern USA, Canada and Europe. By integrating solar thermal with an existing heating system such as radiator, in floor heat or forced air heat, a homeowner can expect to save up to 50% of their heating bill. Because home heat consumes a great portion of your energy bill, it’s payback can be under 5 years.

Solar Space Heating

SOLAR SPACE HEATING

Solar Space Heating

Solar Hydronic Heating with Hydronic In floor Heat or Radiator - Solar Space Heating

The popularity of Solar Home Heating or Solar Space Heating has shown the largest growth in the solar water heating market primarily due to the extreme high efficiencies and higher operating temperatures that are possible with vacuum tubes. Solar Evacuated Tubes perform in low light conditions and temperatures reaching -35 degree. Solar Home Heating is popular in Northern USA, Canada and Europe. By integrating solar thermal with an existing heating system such as radiator, in floor heat or forced air heat, a homeowner can expect to save up to 50% of their heating bill. Because home heat consumes a great portion of your energy bill, it’s payback can be under 5 years.


Basic Principles

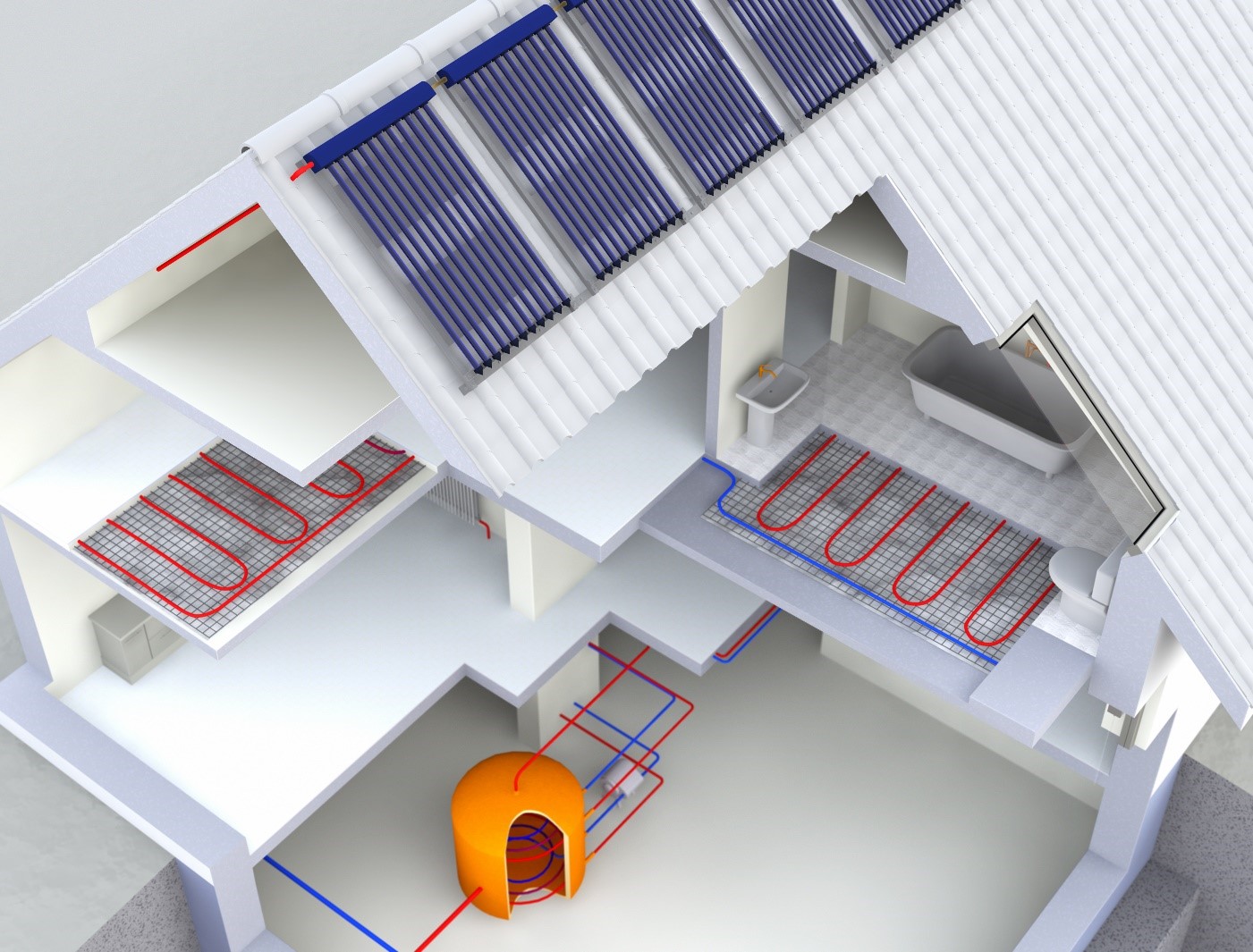

Solar Space Heating uses the solar evacuate tube collectors to capture the sun's energy, this energy is then transferred to a storage tank The stored heat is then integrated with the existing heat system to supplement the heat supply. Larger 119-gallon storage tanks can hold more energy and as such can be used in the evening to supply heat when the sun is not shinning. Because the heat demand occurs during the winter, a secondary dissipation loop may be needed to off load the heat in the summer months. If a customer has a pool, the excess heat energy can be transferred in the summer giving the customer free solar pool heat and space heat in the winter.

Note: alternatively, one can cover or remove the heat pipes in the summer as a manual means of shutting down the system.

Because solar hydronic heating or space heating system are used in colder regions, they are susceptible to freezing, a special solar glycol heating fluid is used to avoid damage that would be caused by frozen pipes. This special fluid can operate at -40 F but can also operate in temperatures as high as 480 F.

BASIC PRINCIPLES

Solar Space Heating uses the solar evacuate tube collectors to capture the sun's energy, this energy is then transferred to a storage tank The stored heat is then integrated with the existing heat system to supplement the heat supply. Larger 119-gallon storage tanks can hold more energy and as such can be used in the evening to supply heat when the sun is not shinning. Because the heat demand occurs during the winter, a secondary dissipation loop may be needed to off load the heat in the summer months. If a customer has a pool, the excess heat energy can be transferred in the summer giving the customer free solar pool heat and space heat in the winter.

Note: alternatively, one can cover or remove the heat pipes in the summer as a manual means of shutting down the system.

Because solar hydronic heating or space heating system are used in colder regions, they are susceptible to freezing, a special solar glycol heating fluid is used to avoid damage that would be caused by frozen pipes. This special fluid can operate at -40 F but can also operate in temperatures as high as 480 F.

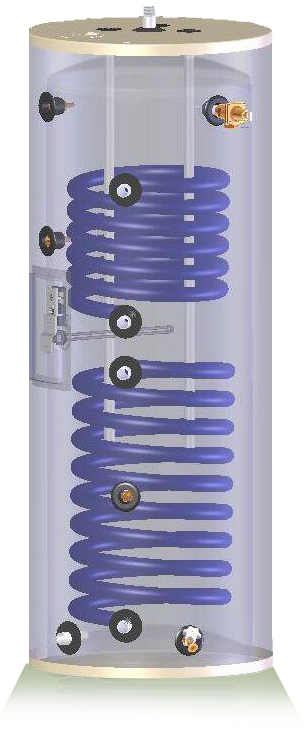

solar storage container

System Design

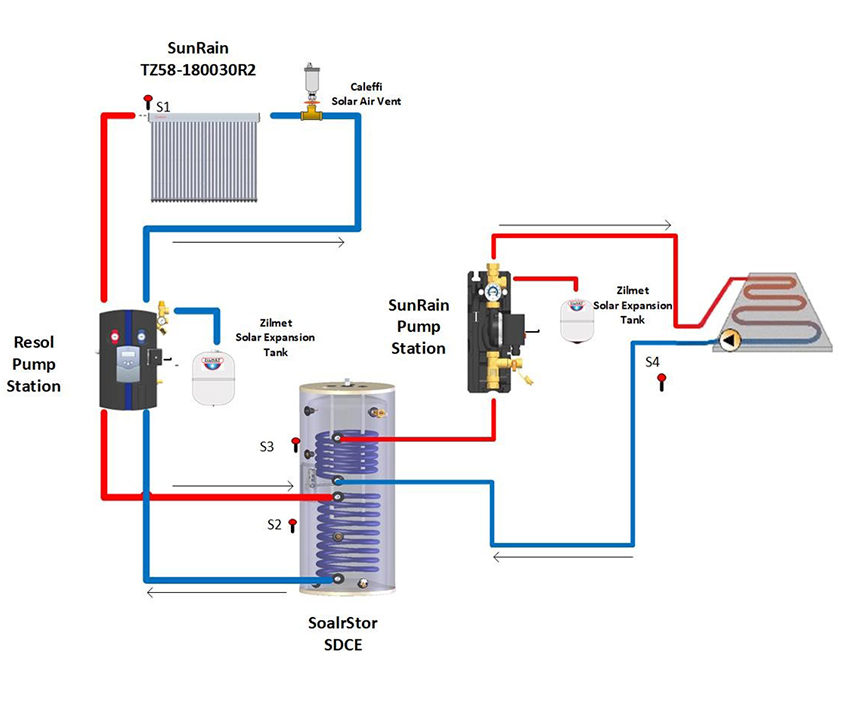

Northern Lights Solar Hydronic Heating Systems use a special solar storage tank that have a larger 119 gallons of storage capacity capable of holding over 120,000 BTU (35 Kw) of heat energy at any time. These tanks have a dual heat exchanger. The bottom HX transfers the solar energy to the tank and the top exchanger removes the energy form the tank to move it to the hydronic zones in the house.

This storage tank system allows for solar storage during the day and can release the stored energy at night when the demand is usually higher. The storage tank can also be used as a domestic hot water tank so that the solar can provide both solar water heating for domestic hot water and space heating in one system.

Our Solar Hydronic System comes with a 4.5 Kw element located in the middle of the tank. It is optional whether a customer uses this or not. The element can be used to ensure there is always hot water even in the evenings. This Hybrid system is especially popular for Solar Radiant Floor Heat, because the solar space heating system can replace the need for a Hydronic boiler as the 4.5 Kw heater and the solar energy should provide enough energy or up to about 2,000 square feet of solar heating space. The Resol controller is capable of controlling both the solar heating loop plus the 2nd heating loop. This type of integrated solar heating package has the highest solar heating paybacks!

Solar Home Heating combined with Geothermal heating is another very popular means of combining two green energy sources to provide a Maximum Cost Savings. By using any excess heat from the solar water heater, we can add this energy to the geothermal loop by means of a heat exchanger. Click here for more information on solar heating & geothermal.

SOLAR HOT WATER
& HYDRONIC HEATING

Solar Hot Water + Hydronic Heating

SOLAR HOT WATER
WITH POOL & HYDRONIC

Solar Hot Water with Pool & Hydronic

Solar Water + Space Heating + Pool:
WIN, WIN, WIN!

If you are fortunate enough to own a pool, you know that when living in Northern USA or Canada the season is much too short! Using solar to heat your pool in the summer and shoulder months and then heat your home in the winter months is perhaps the most ideal system and the best way to provide free energy 365 days a year. Oh Yah, and did we forget to mention FREE domestic hot water! This system solves the problem of too much heat in the summer. Most pool owners welcome any heat and especially if it is free!

SOLAR WATER + SPACE HEATING + POOL: WIN, WIN, WIN!

If you are fortunate enough to own a pool, you know that when living in Northern USA or Canada the season is much too short! Using solar to heat your pool in the summer and shoulder months and then heat your home in the winter months is perhaps the most ideal system and the best way to provide free energy 365 days a year. Oh Yah, and did we forget to mention FREE domestic hot water! This system solves the problem of too much heat in the summer. Most pool owners welcome any heat and especially if it is free!

Contact Us for More Information on Solar Heating

Contact Us for More Information on Solar Heating
