TECHNICAL SPECIFICATIONS:
THERMAX EXTREME FLAT PLATE SOLAR COLLECTOR

Thermax Extreme

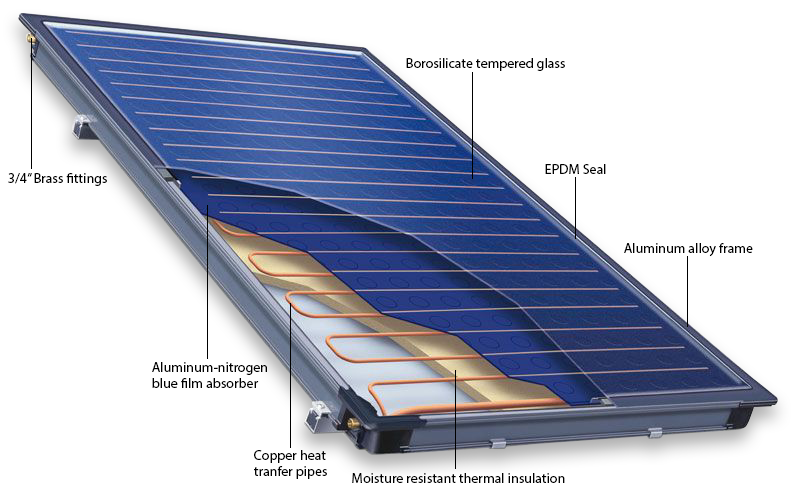

At the core of the Thermax Extreme solar pool heating systems are the high performance solar flat plate collectors (SRCC Performance Certified). Unlike traditional unglazed solar pool panels these high-performance heaters contain copper pipes fused to a highly selective aluminum fin that has a special absorbative coating. All of this is surrounded by a Borosilicate glass panel that acts as a thermos keeping the heat energy from being released to the surrounding. This also prevents and heat loss from wind that is a common problem with other pool collectors.

GENERAL PARA. Sunrain FPC1200D
Collector type Roof/Ground-mounted collector
Overall area FT2 [m2] 21.75 [2.02]
Absorber area FT2 [m2] 20.13 [1.87]
Aperture area FT2[m2] 20.88 [1.94]
L x W x H Inches [mm] 79x39.5x 3.5 [2005 x 1005 x 90]
Weight Lbs [kg] 84 [38]
Absorber capacity Gallons [L] .45 [1.66]
Housing Aluminum-alloy
Connection ¾” NP
Surface Aluminum-alloy
Back plate Steel plate
Absorber sheet Highly selective vacuum coating
Absorption [%] 95
Emission [%] 5 (80°±5° )
manifold [mm] ¾" MPT
Glass Woven ultra white toughened solar safety glass
Transmittance of glass [%] ≥91%
Insulation Fiberglass cotton with antiflaming silver paper veneer / Phenolic foam
Max. stagnation temperature 400 °C under test conditions
Max. operating pressure 1.2 Mpa 170 psi
Rated operating pressure 0.8 Mpa 116 psi
Heat transfer medium Polypropylene glycol / water mixture
Approved installation angle Min. 15°, Max. 75°

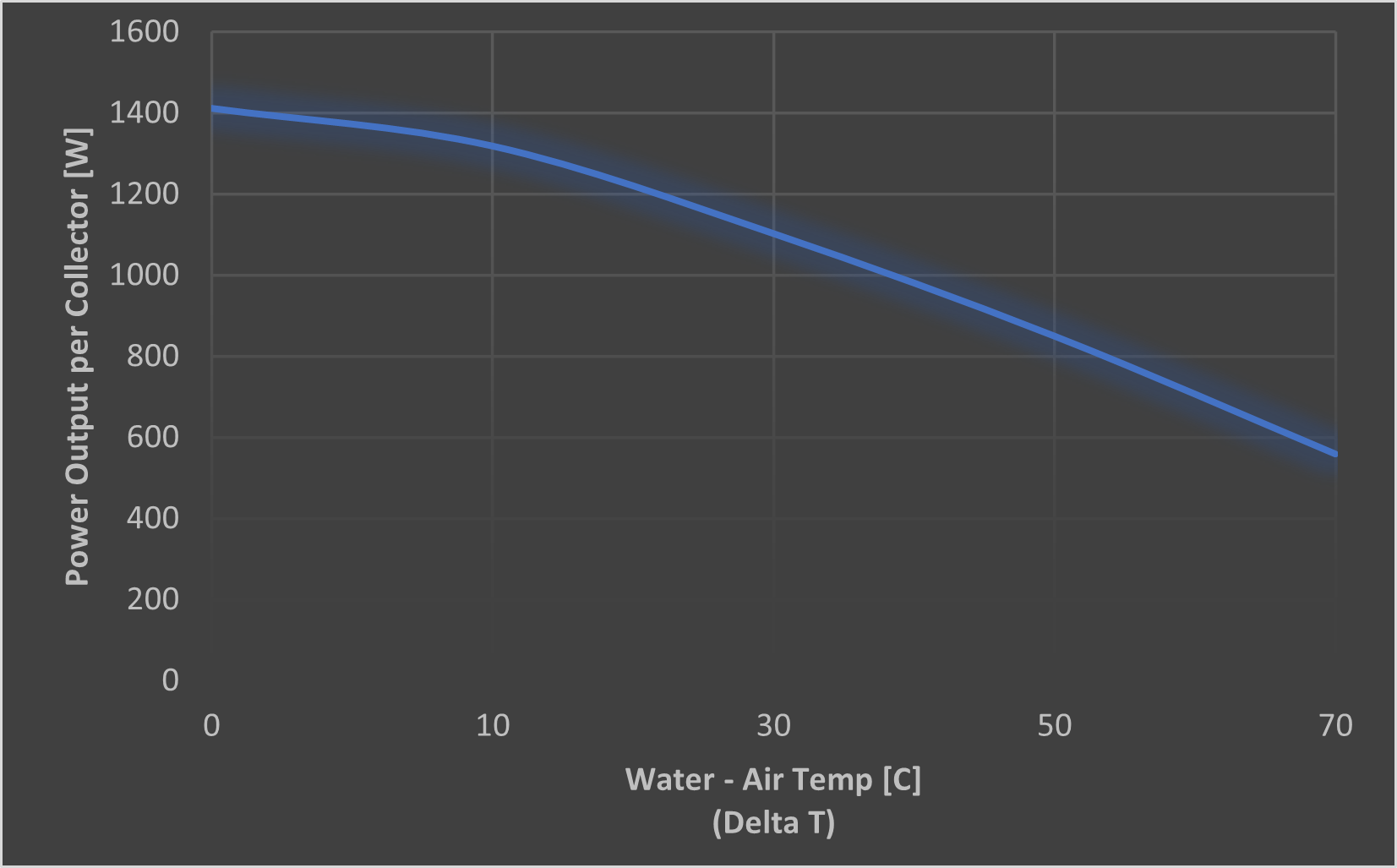

POWER OUTPUT PER COLLECTOR UNIT

MAX performance 1400 Watts (4,785 BTU)

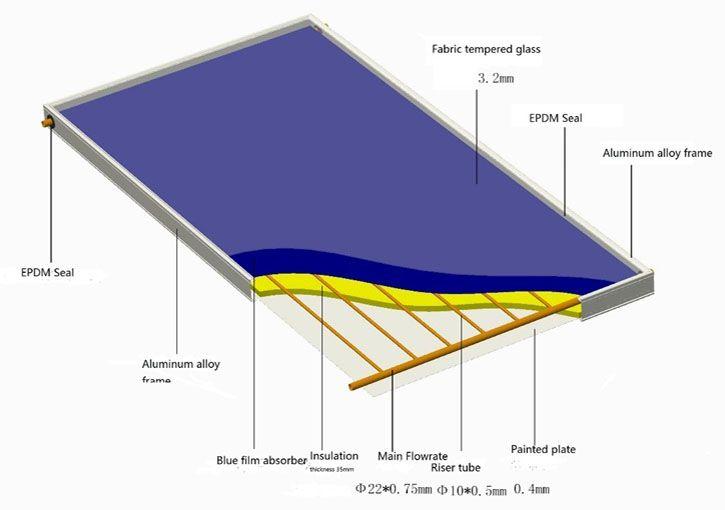

DESIGN OF THERMAX EXTREME

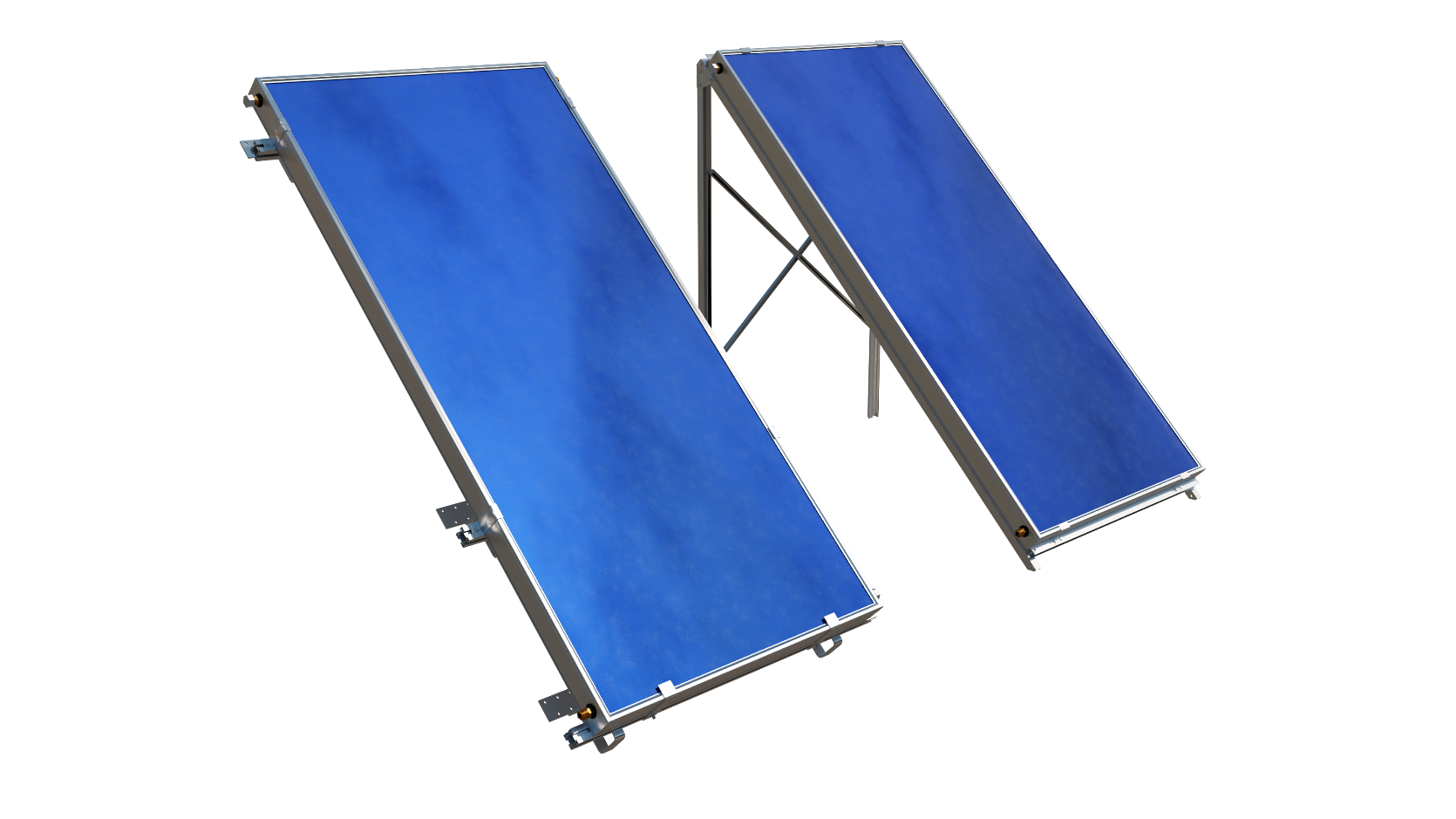

Front

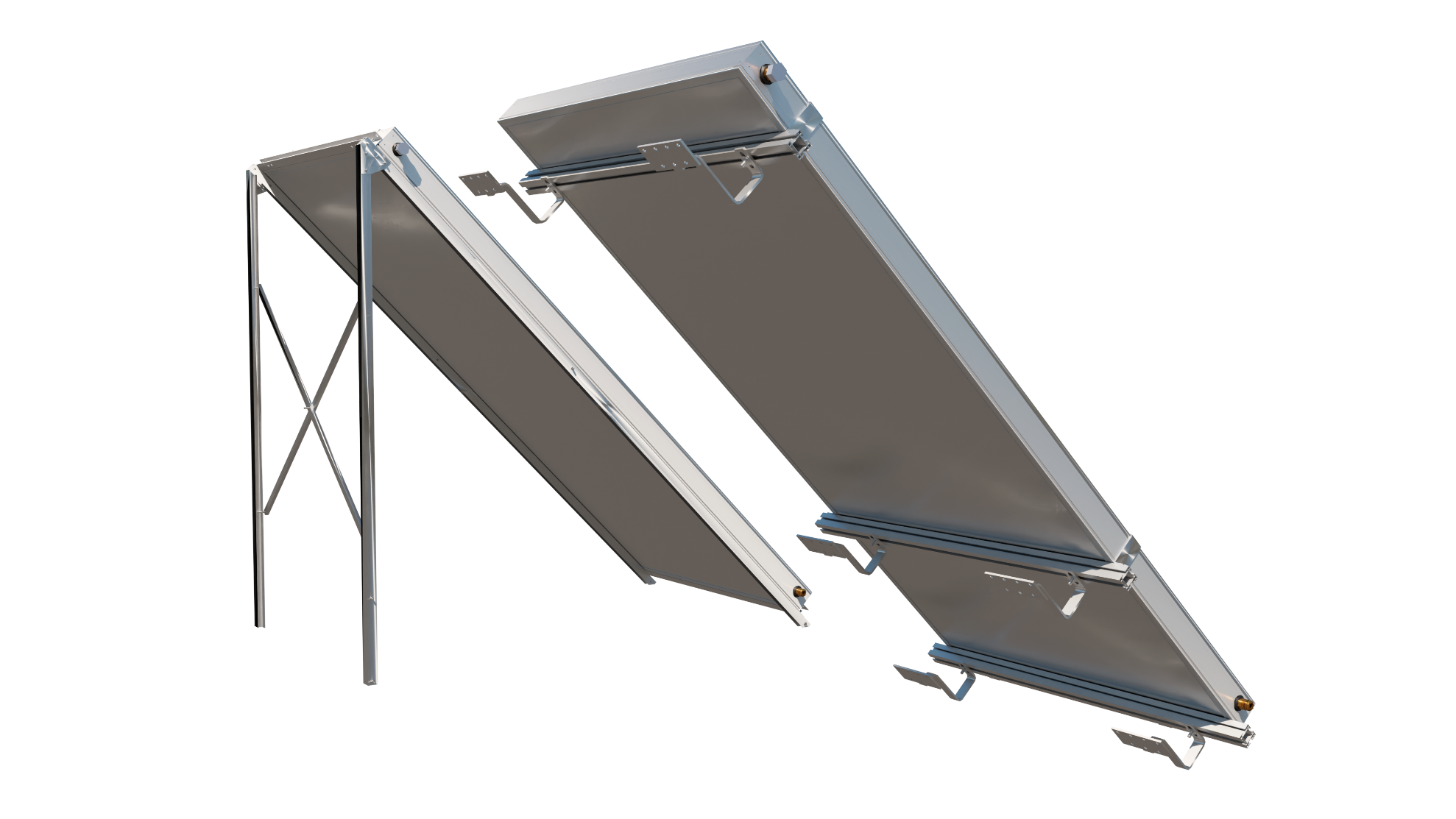

Back
