Solar Evacuated Vacuum Tubes

"3-Hi" Solar Vacuum Tube Technology

Solar Evacuated Tubes - Solar Vacuum Tubes

When investing in solar water heaters, it is important to ensure the "engine" you select is the most powerful and the longest lasting made. This if why we use SunRain's patented "3-Hi" solar vacuum tubes. The absorbing coating found on the inner layer determines how efficient the vacuum tube will operate. The method and material of this coating will also define the life expectancy of the solar vacuum tube.

Most vacuum tubes use a hi-tech reactive sputtering process to coat the inner tube. Most commonly this coating is made from an aluminum and aluminum-nitrogen coating (Al-N/Al) which is the primary absorbing coating.

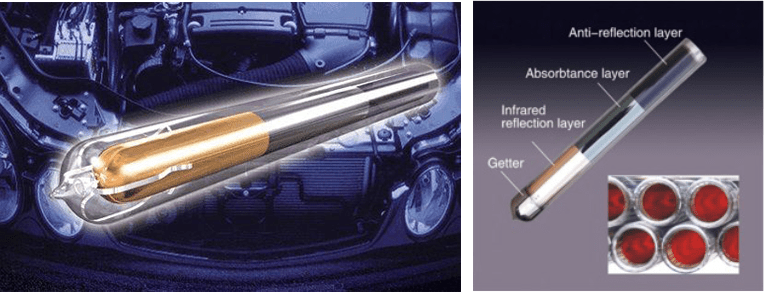

SunRain's solar vacuum tube technology uses an International patented film coating called “3 Hi”. Within each solar evacuated tube, 3 systems are used to ensure the most effective heat absorption. This included a AL-N/AI layer but also a second aluminum layer as well as a third copper layer. The added layers conduct heat better and also stabilize the coating allowing for a much longer lifespan of 20 year or greater. Test Drive one of our solar systems and you will quickly see the difference a powerful "engine" makes. See below for comparison of SunRain's performance versus other leading solar water heating evacuated tube suppliers.

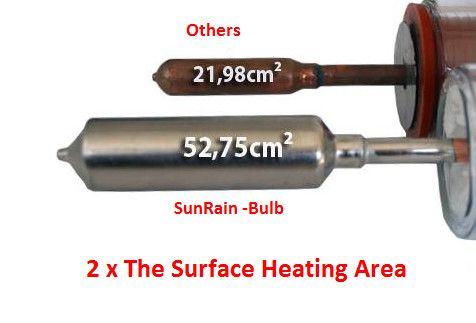

SunRain unique silver coated heat transfer bulb it 2 times larger than most other heat pipes.  This provides more heat energy transfer resulting in a more efficient collector.

"3-Hi" Solar Vacuum Tube Technology

Sunrain Bulbs

SunRain Certification for Government Grants

SRCC Solar Certification

SRCC Certification

CSA Certification

CSA Certification

Solarkeymark Certification

Solarkeymark Certification

SunRain In The News

SunRain Logo
International Quality Star

International Quality Star

Sunrain manufacture of solar evacuated tubes, has been designated to receive the highest international quality award--"International Quality Star" issued by BID (Business Initiative Directions), The award presentation ceremony took place in Geneva, in Switzerland, on Oct. 27th, 2008.

The highest international quality award is aimed to honour the international enterprises which gained excellent achievements in such aspects as the quality, technology, customer service, prestige and so on. The subjects of the highest international quality award 2008 were chosen from large and medium-sized enterprises of 90 countries and regions, including the world's top 500 enterprises by BID for 10 months, and voted in meetings hold in Paris, London, New Delhi, Geneva,Frankfurt and New York. In accordance with International Quality Star standards and quality management standards, Sunrain Group won this international award.

American Solar Energy Society

American Solar Energy Society

On May 5th there was good news from the Solar 2008 American Solar Energy Society (ASES) Solar congress held in San Diego, California State, USA, that Chief Scientific Consultant of Sunrain Group, Dr. Geoff Harding has been awarded the “Hoyt Clarke Hottel Prize” by ASES for 2008.

The award was made to Dr. Harding for his research and development of evacuated glass solar thermal collector technology which is now in widespread use World wide.

Hoyt Clarke Hottel Award” is the most prestigious prize in the world Solar Industry and is awarded each year.

SunRain Solar Company

SunRain Being First Solar Company To Go Public

SHANGHAI, May 21, 2012 -- Sunrain Solar Energy Co., Ltd (stock code: 603366SH) issues A-share official listing shares on the Shanghai Stock Exchange main board May 21, 2012. As the worldwide leader in the solar thermal industry, Sunrain aims to build a world famous brand.

Being the first company to be listed in China in the solar thermal industry, Sunrain will gain attention when it comes to energy conservation and the capital market. Through this, Sunrain will lead the revolution and push forward the development of China's solar thermal industry.

Specializing in technical research manufacturing and market promotion of solar thermal energy, and application products of other new energies, Sunrain Solar Energy has provided solar hot water system solutions for thousands of families worldwide. Read More...

SunRain Versus the Competition

As the world's leader in Solar Vacuum Tubes, SunRain clearly has done so by providing quality products at affordable prices. SunRain Evacuated Tube Solar Collectors are the most cost-effective collectors on the market–they offer the best performance at the best price–THE BEST VALUE AVAILABLE! SunRain Solar Evacuated Tube Solar Collectors out-perform all major competitors and are available for hundreds of dollars less.

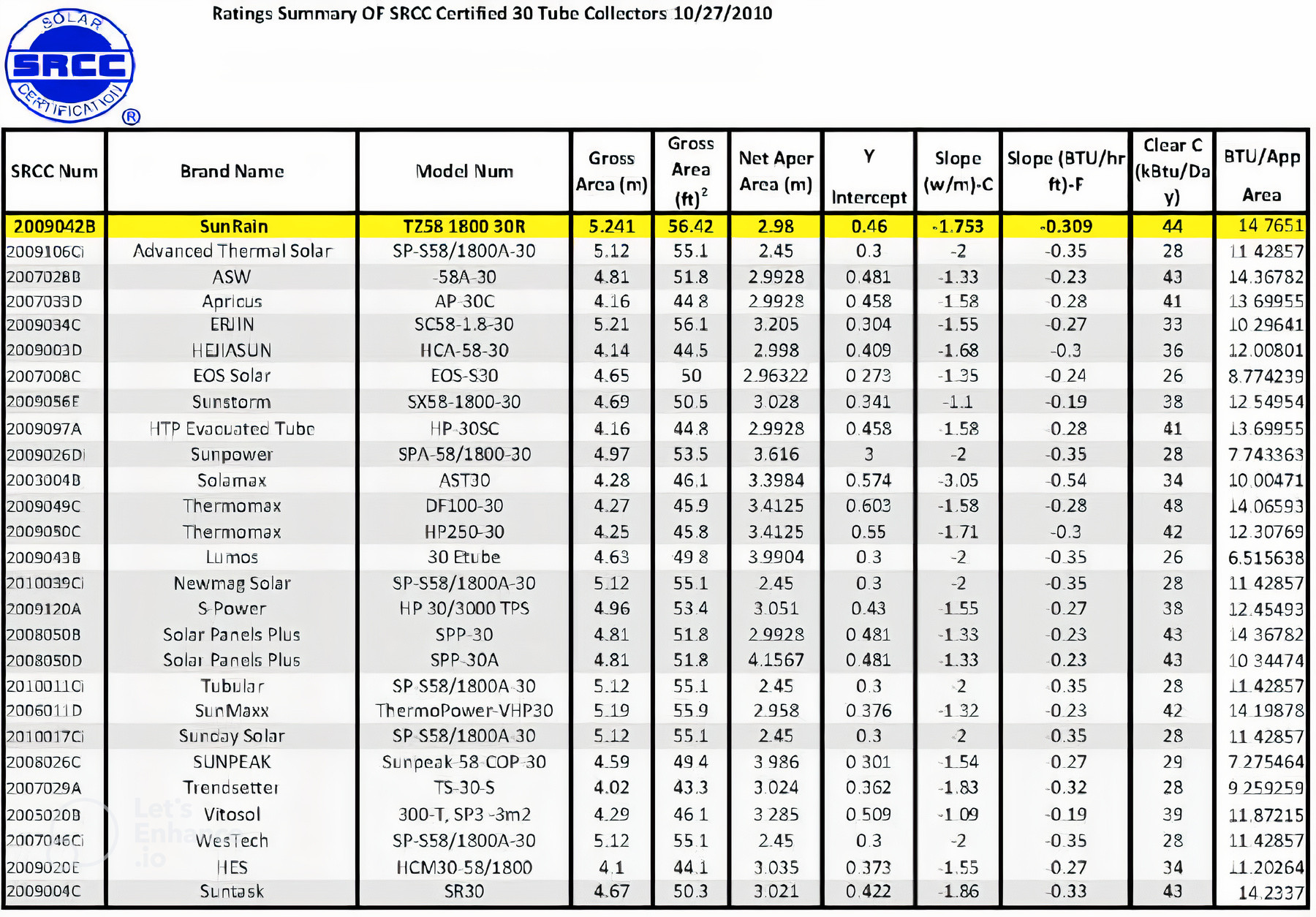

Based on actual SRCC ratings, here is how the SunRain TZ 1800 30 collectors out performs against all other 30 tube Solar Evacuated Tube collectors:

SRCC Ratings
When comparing the BTU/$ values for SunRain Evacuated Tube Solar Collectors and Apricus’ AP-20 Solar Collector, it is clear that SunRain Evacuated Tube Solar Collectors are the better value–hands down. And these figures are even more staggering when compared with the selling price of Thermomax’s Solar Collectors.
Supplier BTU/Day MSRP BTU/$
SunRain 44,000 1250 35.20
Apricus 43,000 1,500 28.67
Thermomax 42,000 2,000 21.00
These numbers are clear as day–illustrating the tremendous value of the SunRain Evacuated Tube Solar Collectors compared to the leading national competitors. If you want to make the smart decision and choose the right solar collector for your home or for your dealership/installation business, SunRain Solar Vacuum Tube Collectors deliver the performance, quality low price and value you need!

Technical Specs

Specification Heating Series Heat Pipe
TZ58/1800-20R
Heating Series Heat Pipe
TZ58/1800-30R
Number of tubes 20 30
Frame & manifold Aluminium Aluminium
Heating type Copper Heat Pipe Copper Heat Pipe
Lenth of Tube 1800mm 1800mm
OD of tube 58 mm 58 mm
ID of tube 50 mm 50 mm
Glass Thickness 2 mm 2 mm
Water Capacity 1.8 L (.4 gallons) 2.6 L (.6 gallons)
Weight dry 175lbs 220lbs
Weigh Wet 180 lbs 230 lbs
Max BTU/HR 5000 BTU/hr 7,517 BTU/hr
Pressure 116 psi 116 psi
Glass Vacuum Material Borosilicate glass Borosilicate glass
Vacuum P<5x10 -3 PA P<5x10 -3 PA
Frame Included Included
Warranty 10 years 10 years

Mounting options for TZ58/1800 30 R vacuum tube collectors

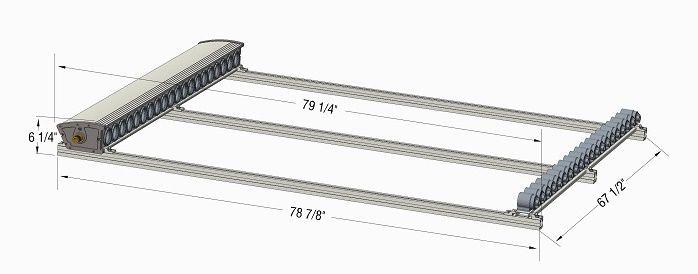

Roof Mount 20 Tubes Dimensions

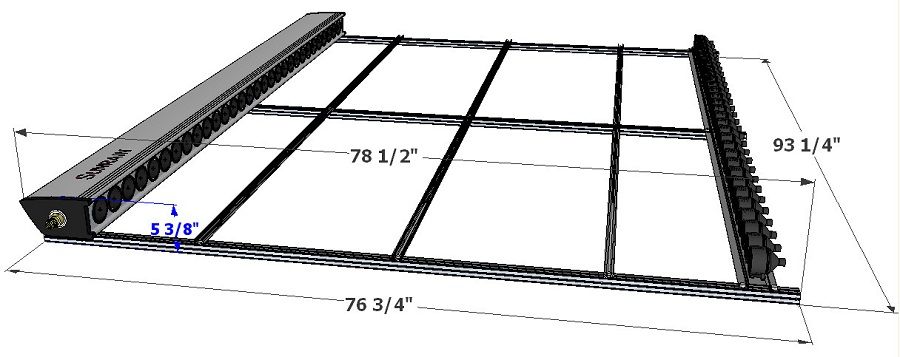

Roof Mount 30\ Tubes Dimensions

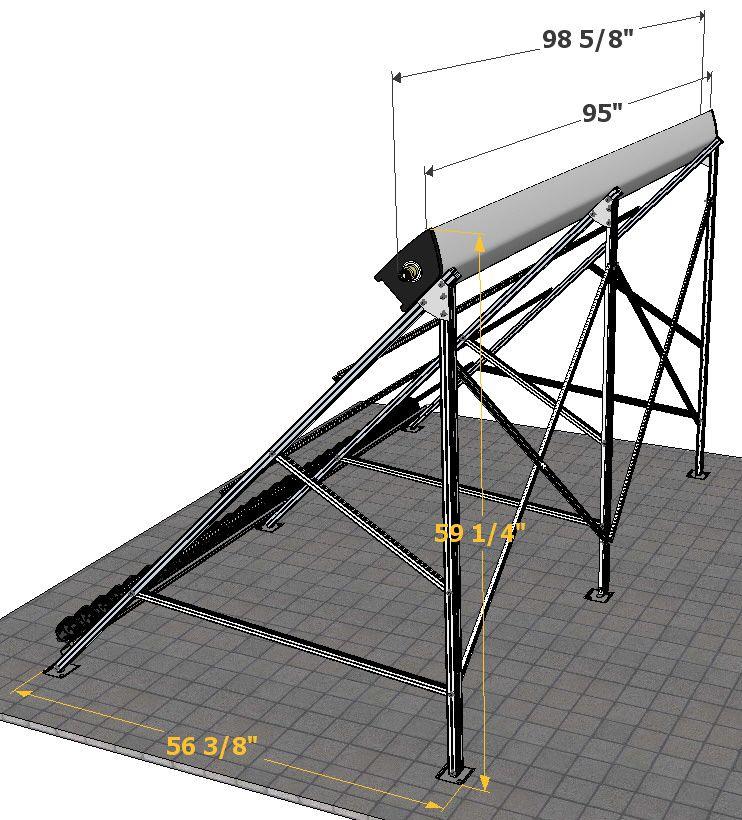

Ground Mount

Performance Specifications

City HP-30SC
BTU/yr
KWhr
New york 6,750,000 1,975
Philadelphia 7,320,000 2,142
Miami 12,150,000 3,555
Chicago 7,080,000 2,071
Denver 8,670,000 2,537
Los Angeles 9,800,000 2,868
Winnipeg 7,346,00 2140
Calgary 7,405,000 2,167
Toronto 6,900,000 2,019
Vancouver 6,300,00 1840
